17

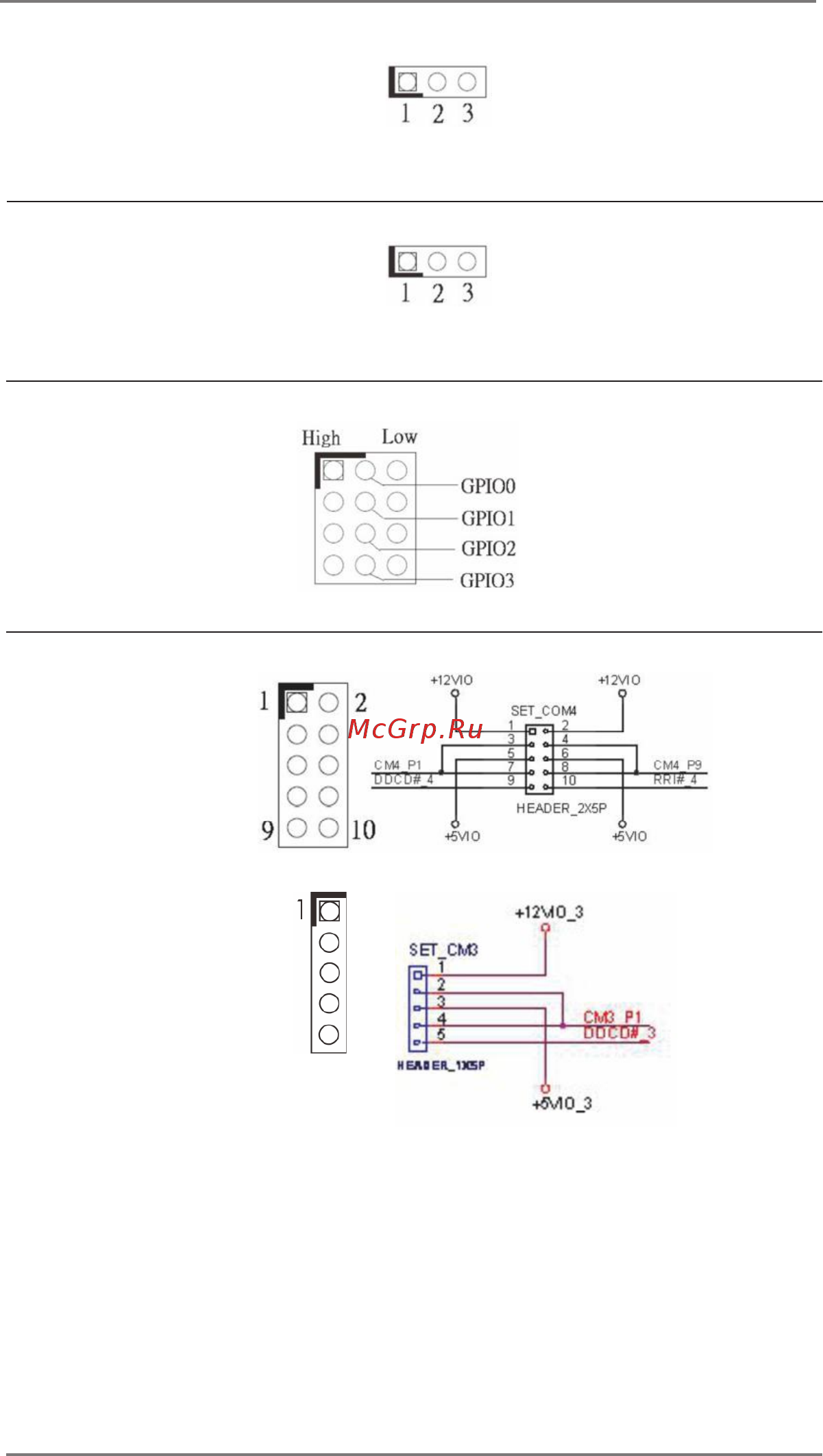

Panel BackLight PWR Setting 1-2: +5V.
(3-pin BKT_PWR1)
2-3: +12V.
(see p.9 No. 27)
Bottom Side CF Card PWR Setting 1-2: +3.3V.
(3-pin JCFPWR1)
2-3: +5V.
(see p.9 No. 28)
Panel Resolution Selection Reserved.
(12-pin JLVD_GPIO1)
Default set by BIOS.
(see p.9 No. 29)
SET COM Ports
(10-pin SET_CM1,2)
(see p.9 No. 1)
(10-pin SET_CM4,5,6)
(see p.9 No. 20)
(5-pin SET_CM3)
(see p.9 No. 30)
