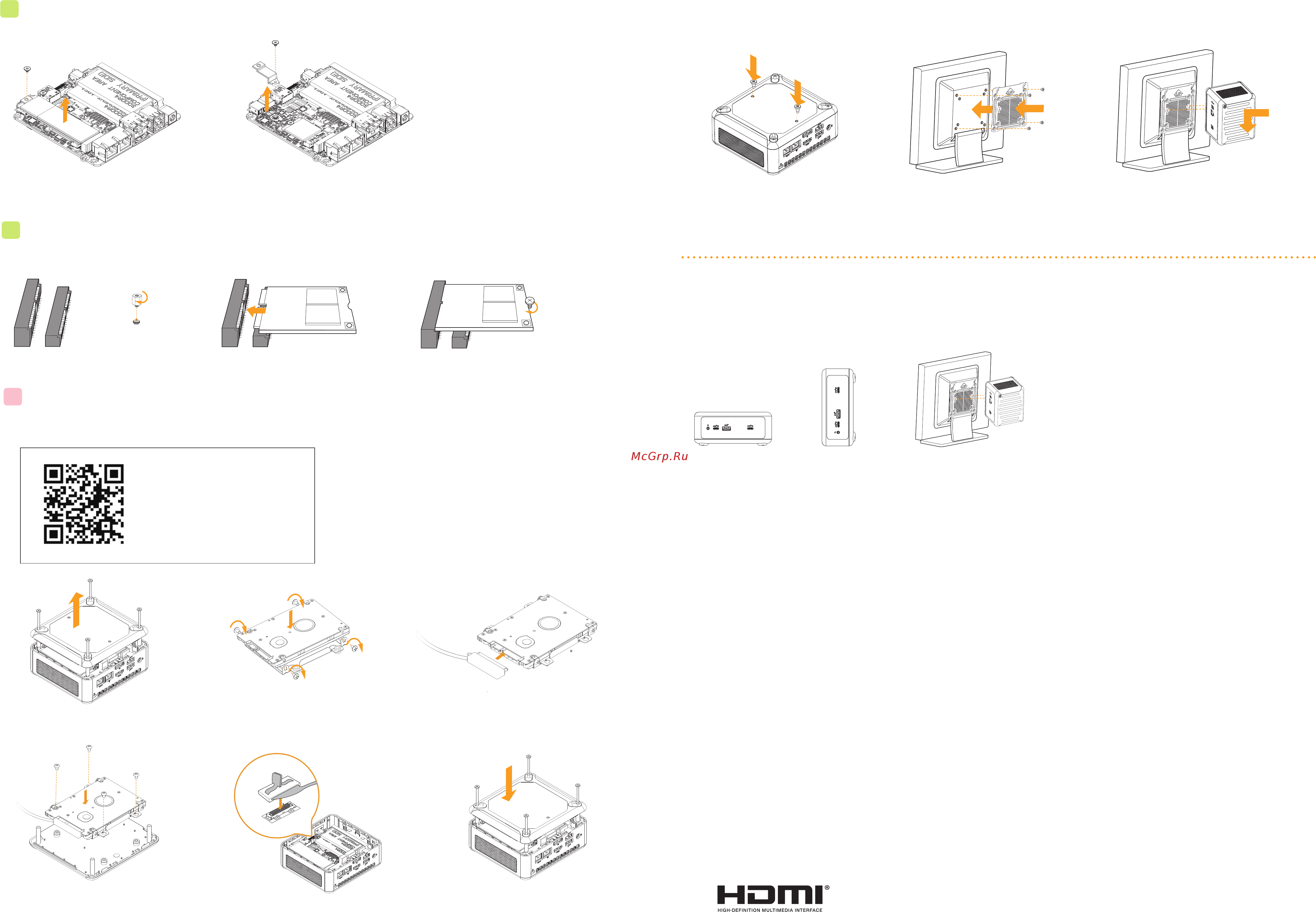

M.2 SSD: How to Install the M.2 SSD (Type 2260)

C2

1. Locate the M.2 slot on the motherboard.

Install the stando.

2. Carefully insert the M.2 SSD into the

slot.

3. Tighten the screw to secure the M.2 SSD

to the motherboard.

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks

or registered trademarks of HDMI Licensing LLC in the United States and other countries.

NUC 1100 BOX系列擺放 / Positionen der NUC 1100 BOX Series / Positions de la série NUC 1100 BOX / Posizioni della NUC 1100 BOX / Posiciones de la NUC 1100 BOX / Положения серии

Установка кронштейна VESA / Como Instalar a Braçadeira VESA / VESA 브래킷을 설치하는 방법 / VESA ブラケットの取り付け方法

How to Install the VESA Bracket

1. Attach the two screws to the base of the

NUC 1100 BOX Series.

2. Attach the VESA Bracket to the rear of

a compatible display using the four screws.

*Choose mounting holes depending on the

mounting hole pattern of your LCD screen

(75 mm × 75 mm or 100 mm × 100 mm).

1. Release the screw and carefully remove the M.2

SSD (Type 2280).

Como Instalar o Disco Rígido / 하드 드라이브를 설치하는 방법 / ハードドライブの取り付け方法

2. Attach the HDD to the hard drive

mounting bracket and secure it using

the four screws.

3. Connect the SATA Data and Power Cable to

the HDD.

to install the hard disk drive on

the NUC 1100 BOX Series.
