ASRock NUC BOX 3000 (Barebone) [2/2] Inch hard drive how to install the hard drive c
![ASRock NUC BOX 3000 (Barebone) [2/2] Inch hard drive how to install the hard drive c](/views2/1693781/page2/bg2.png)
如何安裝硬碟/ So installieren Sie die Festplatte / Comment installer le disque dur / Come installare l’unità HDD / Cómo instalar la unidad de disco duro / Установка жесткого диска /
Como Instalar o Disco Rígido / 하드 드라이브를 설치하는 방법 / ハードドライブの取り付け方法
NUC BOX 3000/3050/3150 系列擺放/ Positionen der NUC BOX 3000/3050/3150 / Positions de la série NUC BOX 3000/3050/3150/ Posizioni della NUC BOX 3000/3050/3150 / Posiciones de la
NUC BOX 3000/3050/3150 / Положения серии NUC BOX 3000/3050/3150 / Posições de NUC BOX 3000/3050/3150 / NUC BOX 3000/3050/3150 시리즈의 위치 / NUC BOX 3000/3050/3150
シリーズの位置
USB 電源開啟功能/ USB-Einschaltfunktion / Fonction d'alimentation USB / Funzione di accensione USB / Función de alimentación USB / Функция включении питания через USB /
Função de Ligamento USB / USB 전원 켜기 기능/ USB 電源オン機能
如何安裝記憶體模組 / So installieren Sie die Speichermodule / Comment installer les modules de mémoire / Come installare i moduli di memoria / Cómo instalar los módulos de memoria /
Установка модулей памяти / Como Instalar os Módulos de Memória / 메모리 모듈/ メモリモジュール
如何安裝 VESA 支架/ So installieren Sie die VESA-Halterung / Comment installer le support VESA / Come installare il supporto VESA / Cómo instalar el soporte VESA /
Установка кронштейна VESA / Como Instalar a Braçadeira VESA / VESA 브래킷을 설치하는 방법 / VESA ブラケットの取り付け方法

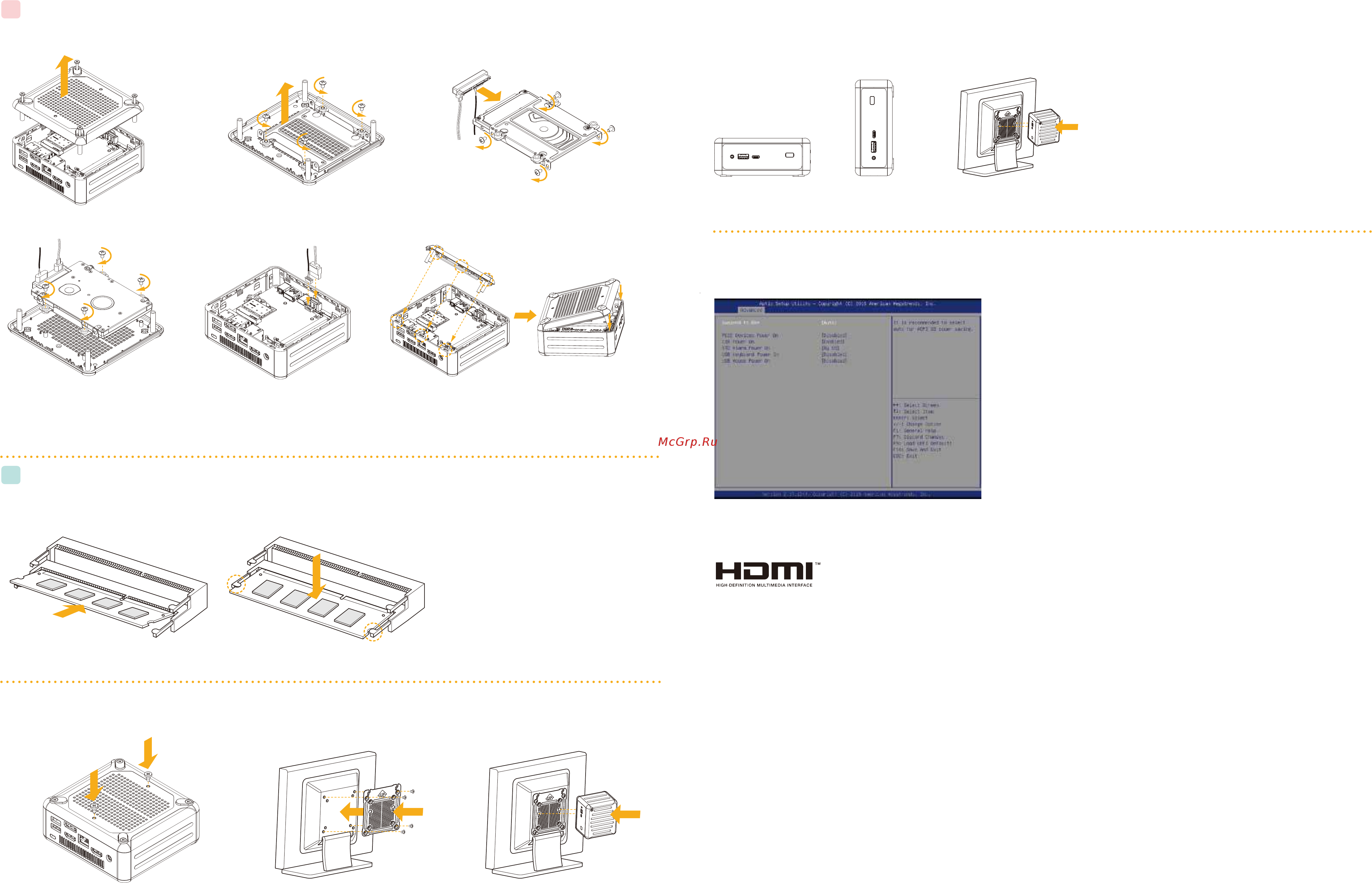

2.5-inch Hard Drive: How to Install the Hard Drive
C
SO-DIMM Slots: How to Install the Memory Modules
(DDR3 Low Voltage (1.35V))
D
How to Install the VESA Bracket
1. Remove the four screws on the bottom case.
en li up and remove the bottom panel.
2. Unscrew the four screws that hold the HDD
cage in place.
3. Install the HDD in the cage using the four
screws. en connect the SATA cable to the
HDD.
4. Attach the HDD cage to the bottom
panel and secure it using the four screws.
5. Connect the SATA Data and Power
Cable to the motherboard.
6. Align the three latches on the bottom panel with the three latch
holes on the chassis. en reinstall the bottom panel until it
clicks into place.
1. Carefully insert the SO-DIMM memory modules
into the slot at a 30-degree angle.
2. Push down until the modules snap into place.
1. Attach the two screws to the base of the
NUC BOX 3000/3050/3150.
2. Attach the VESA Bracket to the rear of
a compatible display using the four screws.
*Choose mounting holes depending on the
mounting hole pattern of your LCD screen
(75 mm × 75 mm or 100 mm × 100 mm).
3. Mount the NUC BOX 3000/3050/3150 by
sliding it into place.
Vertical Position Wall-mountedHorizontal Position
Positions of the NUC BOX 3000/3050/3150
USB Power On Function:
USB Power On Function allows system power on via USB keyboard/mouse.
is function is useful when the NUC BOX 3000/3050/3150 is mounted behind your
display/TV.
To enable USB Power On Function:
1. Enter BIOS by pressing <F2> or <Del> during device startup.
2. Select “Advanced > ACPI Conguration” from the menu.
3. Set “USB Keyboard Power On” and “ USB Mouse Power On” settings to “Enabled”.
4. Press F10 to Save and Exit.
Note:
- e NUC BOX 3000/3050/3150 requires DDR3L SO-DIMM (1.35V).
- For dual channel conguration, you always need to
install identical (the same brand, speed, size and chip-type)
DDR3L SO-DIMM pairs.
*Please note that keeping the NUC BOX 3000/3050/3150 series in a vertical position will ensure better cooling performance.
*For NUC BOX N3000 series, it is not recommended to install 2.5” HDD. If you install the 2.5” HDD, please keep the NUC BOX 3000/3050/3150 in a
vertical position to ensure better cooling performance.
e NUC BOX 3000/3050/3150 can be placed in vertical or horizontal position.
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks
or registered trademarks of HDMI Licensing LLC in the United States and other countries.
