ASRock 4X4 BOX-R1000M [16/43] How to install the 2 inch hard drive
![ASRock 4X4 BOX-V1000M [16/43] How to install the 2 inch hard drive](/views2/1693794/page16/bg10.png)
10 11
English

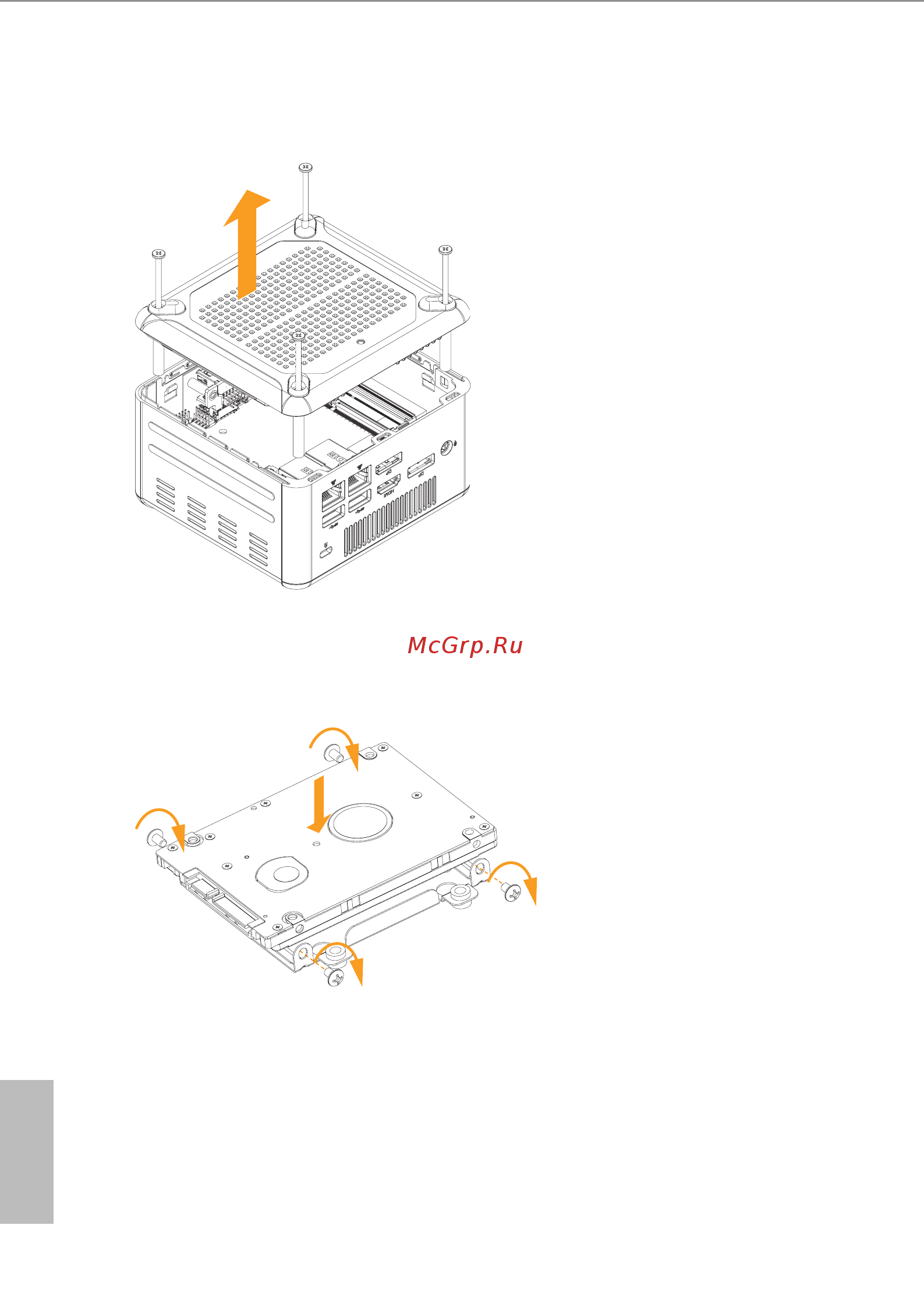

3.4 How to Install the 2.5-inch Hard Drive
1. Remove the four screws on the bottom case. en li up and remove the bottom panel.
2. Attach the HDD to the hard drive mounting bracket and secure it using the four
screws.
