ASRock 4X4 BOX-R1000M [20/43] Motherboard layout
![ASRock 4X4 BOX-V1000M [20/43] Motherboard layout](/views2/1693794/page20/bg14.png)
14 15
English
Chapter 4 Motherboard

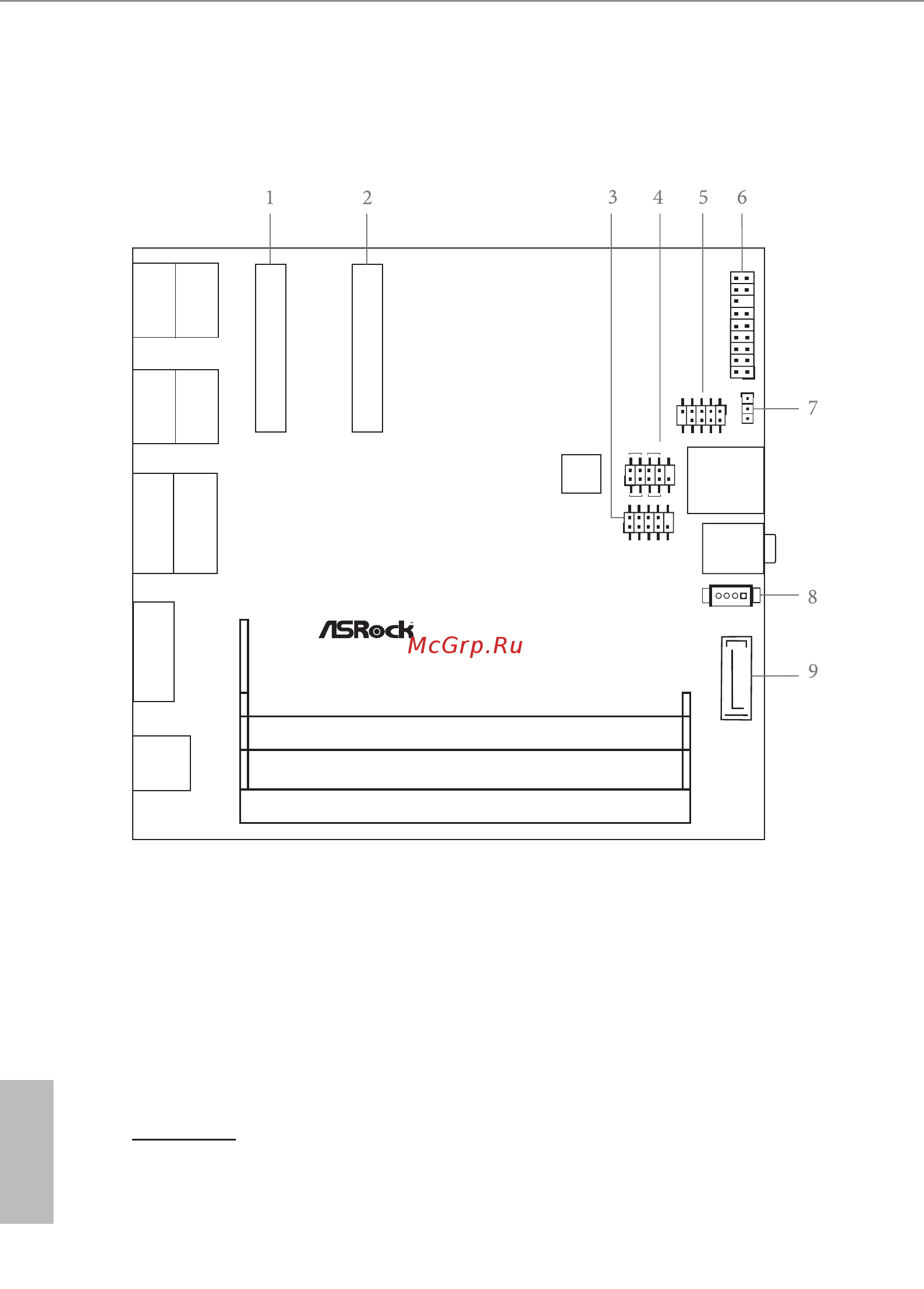

4.1 Motherboard Layout
M2E_1
AUDIO1
HDMI1
USB3.1:
USB3_3
DC_IN1
M.2 SSD (M2M_1)
DP2
DISPLAY1
SATA3_1
DDR4_B1 (SupportDDR4 Only)
DDR4_A1 (SupportDDR4 Only)
SATA_PWR1
1
Industrial
LAN1
USB3.1:
USB3_1
LAN2
USB3.1:
USB3_2
BIOS
ROM
1
LPC1
1
CLR CM OS1
1
COM1
1
USB2_0_5
1
HDLED RESET
PLED PWRBTN
PANEL1
1 :
M.2 Key-M Socket (M2M_1)
2 :
M.2 Key-E Socket (M2E_1)
3 :
COM Port Header (RS232/422/485)
4 :
System Panel Header (PANEL1)
5 : USB2.0 Connector (USB2_0_5)
6 : LPC Debug Header (LPC1)
7 :
Clear CMOS Headers (CLRCMOS1)
8 :
SATA Power Output Connector (SATA_PWR1)
9 : SATA3 Connector (SATA3_1)
Back Side :
Power Button (PWR_BTN3)
Fan Connector (FAN1)
