4X4 BOX-V1000/R1000
28 29
English

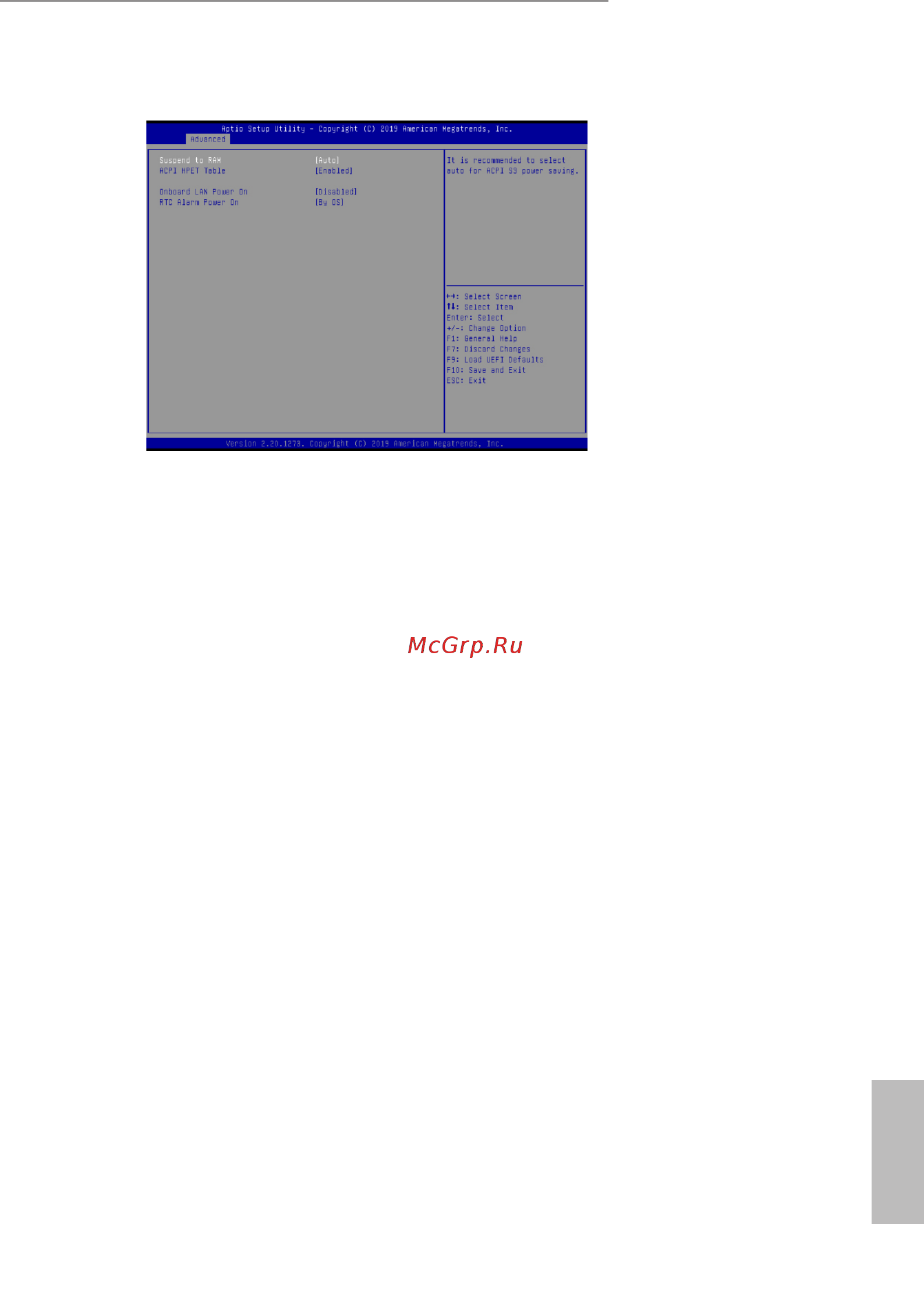

5.3.5 ACPI Conguration
Suspend to RAM
Use this item to select whether to auto-detect or disable the Suspend-to-
RAM feature. Select [Auto] will enable this feature if the OS supports it.
ACPI HPET Table
Enable the High Precision Event Timer for better performance.
Onboard LAN Power On
Use this item to enable or disable onboard LAN to turn on the system from
thepower-soft-omode.
RTC Alarm Power On
Use this item to enable or disable RTC (Real Time Clock) to power on the
system.
