Boot From Onboard LAN
Use this item to enable or disable the Boot From Onboard LAN feature.
Setup Prompt Timeout
This shows the number of seconds to wait for setup activation key.
65535(0XFFFF)meansindenitewaiting.
Bootup Num-Lock
If this item is set to [On], it will automatically activate the Numeric Lock
function after boot-up.
Full Screen Logo
Use this item to enable or disable OEM Logo. The default value is [Enabled].

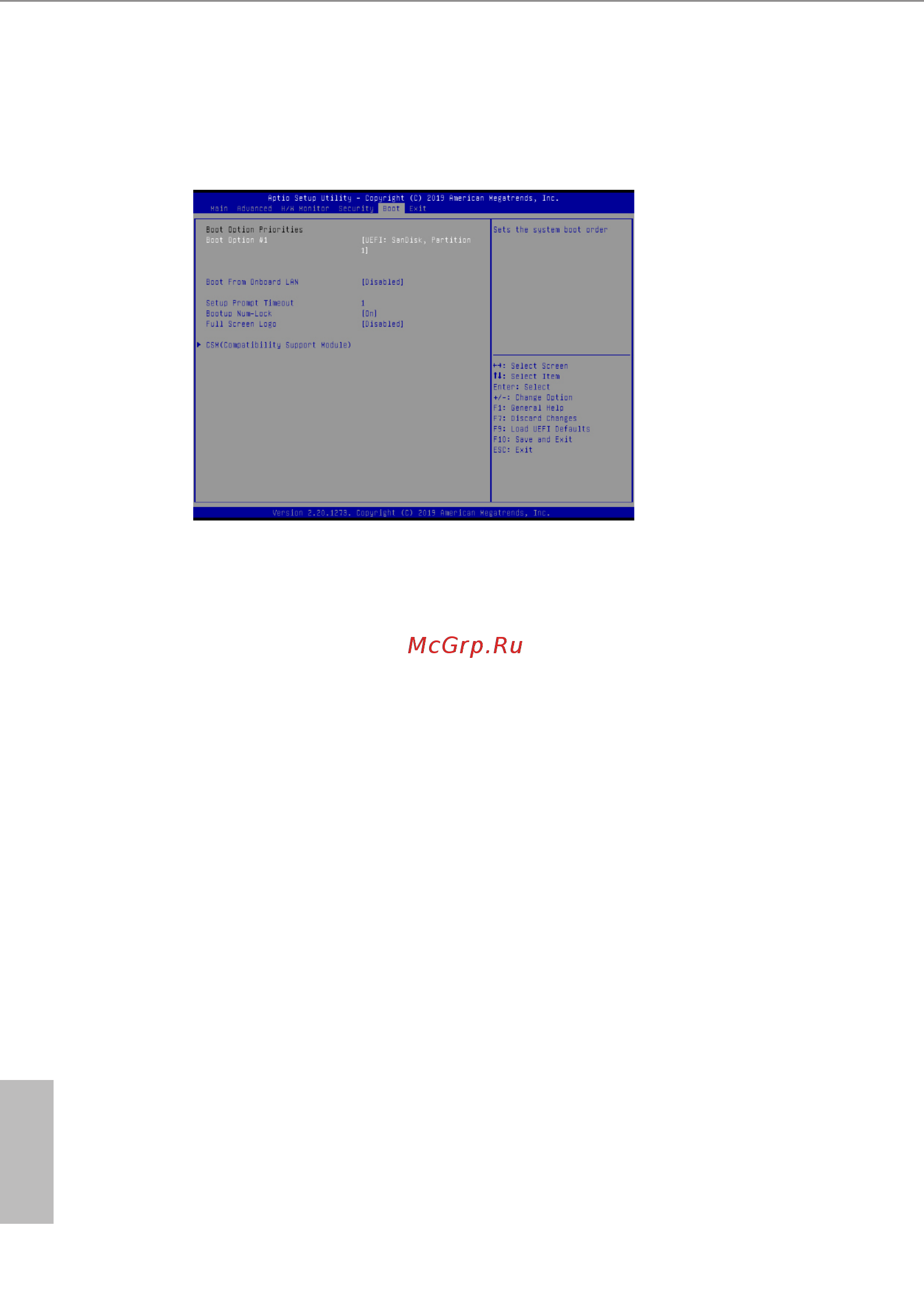

5.6 Boot Screen
Inthissection,itwilldisplaytheavailabledevicesonyoursystemforyoutocong-
ure the boot settings and the boot priority.
