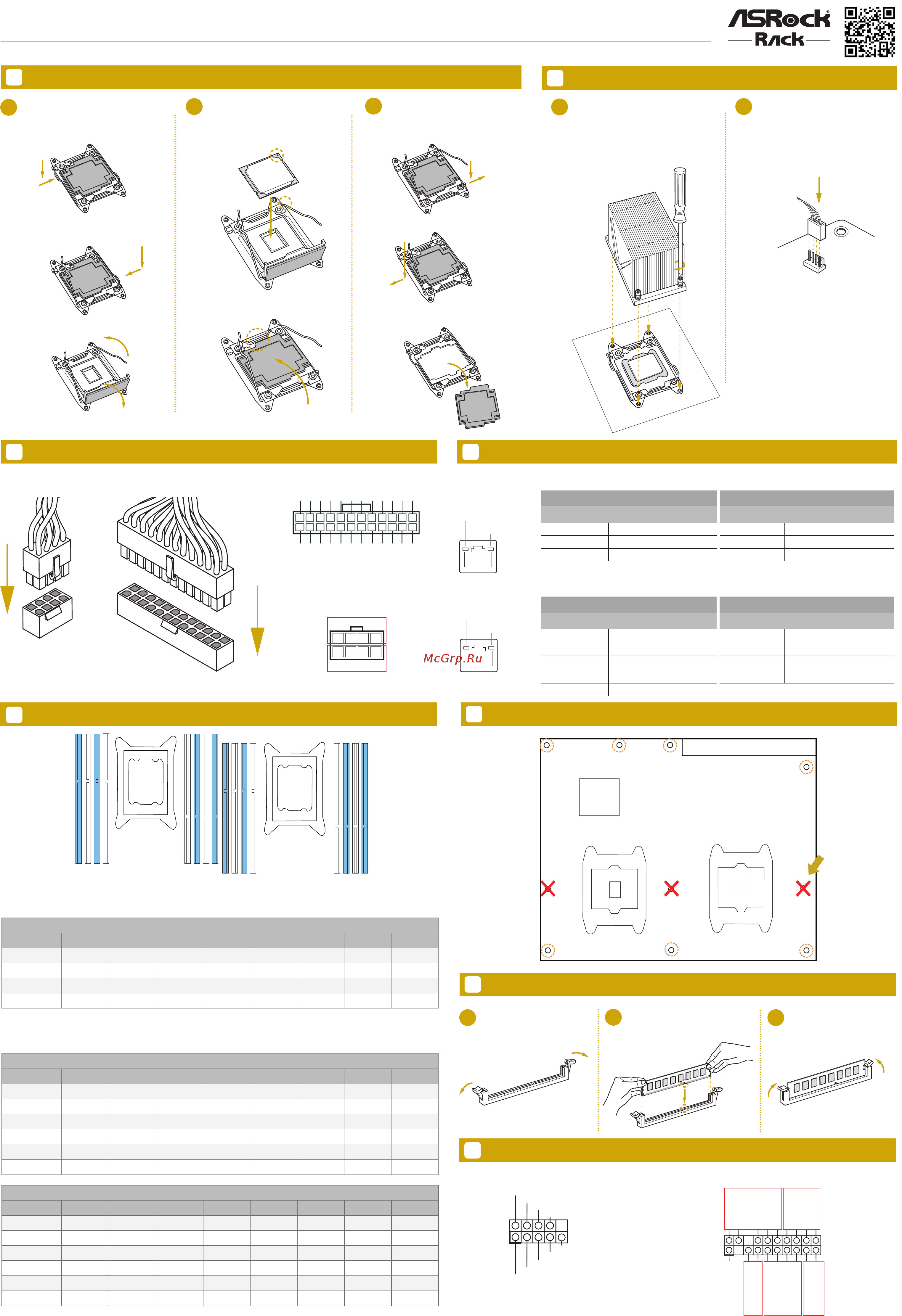

EP2C612D16FM / EP2C612D16FM-N
Quick Installation Guide
www.asrockrack.com
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M/100Mbps
connection or no link
Blinking
Yellow
Data Activity Green 1Gbps connection
On Link
8 LAN Port LED Indications
Recommended Memory Congurations
5
7
11
6
1
2
3
Open the socket levers and the
CPU socket cover.
Install the processor and close
the socket cover.
Close the socket levers. Remove
the CPU protection cap.
Install the CPU Fan and Heatsink
CPU_
FAN
1
2
Apply the thermal grease. Install the
CPU fan and heatsink and secure
the screws.
Connect the CPU fan to the CPU
FAN connector.
Install the Memory
Install the Power Cables
1
2
3
Unlock a DIMM slot by
pressing the module clips
outward.
Insert the memory module. Lock the clips.
10
Screw Holes
IPMI LAN Port
1G LAN Port
System Panel Auxiliary Panel
12 Headers
9
A
B
A
B
A
B
A
B
B
A
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity (100Mbps) Orange 100Mbps connection
On Link Green 1Gbps connection
Install the Processor
ACT/LINK LED
SPEED LED
LAN Port
ACT/LINK LED
SPEED LED
LAN Port
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
GND
SMB_CLK
SMB_Alert
CASEOPEN
1
SMB_DATA
+3VSB
LAN1_LINK
LED_PWR
LAN2_LINK
LED_PWR
+5VSB
GND
GND
LOCATORLED1+
LOCATORLED1-
LOCATORBTN#
System Fault LED-
A
B
C
D
System Fault LED+
E
1
3V
3V
GND
GND
5V
5V
GND
PWROK_PS
5VSB
12V
12V
3V
3V
-12V
GND
PSON#
GND
GND
GND
5V
5V
5V
GND
N/A
12
24 13
4
8
1
5
+12V2
GND
1 CPU Conguration
CPU1
A1 A2 B1 B2 C1 C2 D1 D2
1 DIMM #
2 DIMMS # #
4 DIMMS # # # #
8 DIMMS # # # # # # # #
2 CPU Conguration
CPU1
A1 A2 B1 B2 C1 C2 D1 D2
1 DIMM #
2 DIMMS # #
4 DIMMS # # # #
8 DIMMS # # # #
12 DIMMS # # # # # # # #
16 DIMMS # # # # # # # #
CPU2
E1 E2 F1 F2 G1 G2 H1 H2
1 DIMM
2 DIMMS
4 DIMMS
8 DIMMS # # # #
12 DIMMS # # # #
16 DIMMS # # # # # # # #
CPU1
CPU2
DDR4-_A1
DDR4_A2
DDR4_B1
DDR4_B2
DDR4_D2
DDR4_D1
DDR4_C2
DDR4_C1
DDR4_E1
DDR4_E2
DDR4_F1
DDR4_F2
DDR4_H2
DDR4_H1
DDR4_G2
DDR4_G1
We recommend using the CPU Installation tool to avoid CPU pin-bent problem.
Rear I/O
Intel
C612
Remove the standoffs
from the chassis
