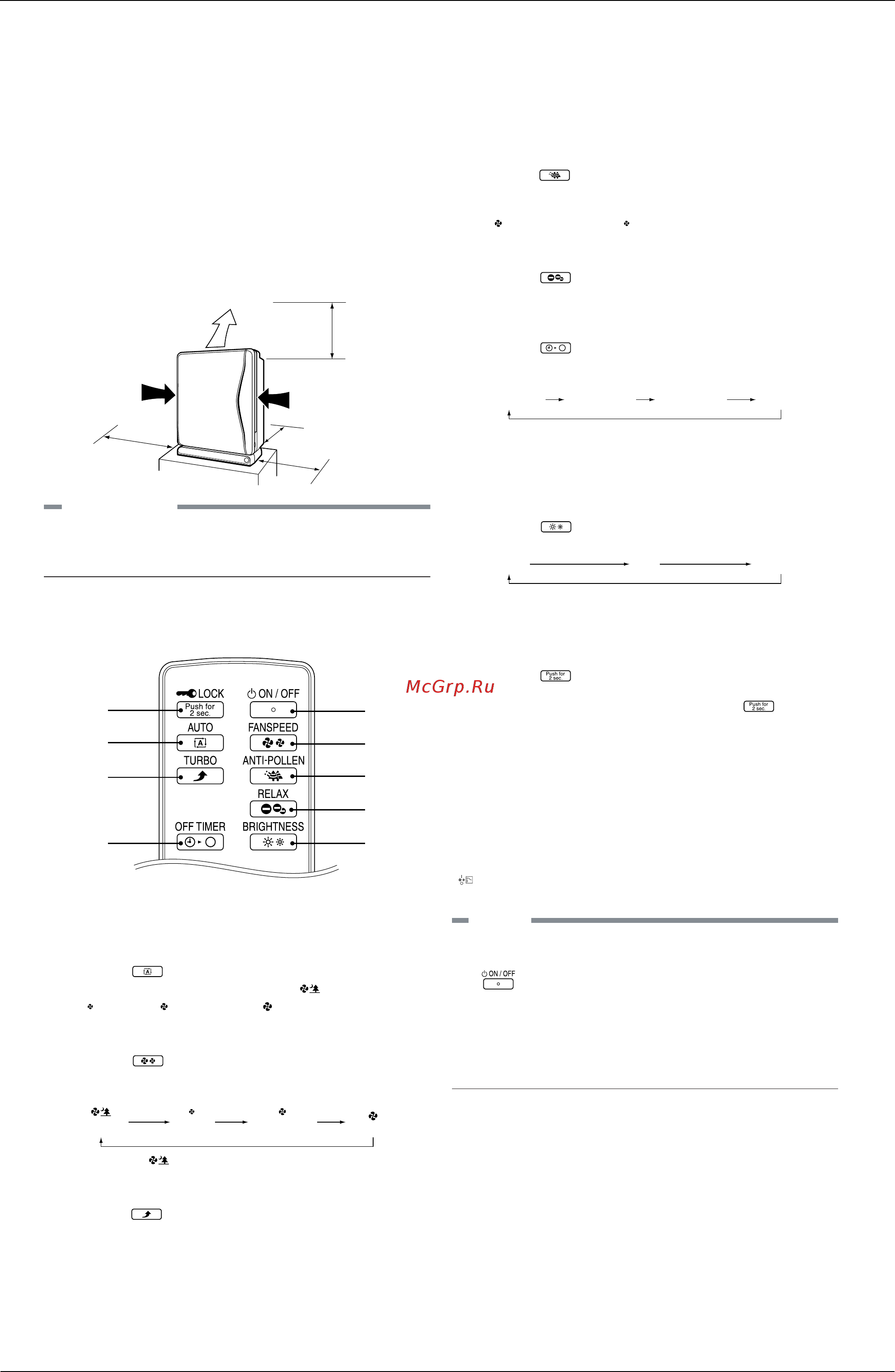

Operation Manual ED81-640
18 Photocatalytic Air Purifiers
7
Preparation Before
Operation
Installation of main unit
To install the unit, comply with the following standards to ensure performance.
If installed on a table
ATTENTION
•
If operated outside the conditions shown below, malfunction may occur.
• Indoor temperature 0-32˚C
• Indoor humidity 80% or less
How to Operate
1 When operating
Press the [ON/OFF] button.
Pressing again will stop.
2 When you want to automatically switch the airflow rate
Press the “ ” [AUTO] button.
• Automatically adjusts the airflow rate to “ ” LL (Quiet),
“ ” L (Low), “ ” M (Standard), “ ” H (high) in response to the
dirty condition of the air.
3 When you want to manually switch the airflow rate
Press the “ ” [FANSPEED] button.
• Each time it is pressed the airflow rate switches as shown below
allowing you to choose your desired flow.
• The setting “ ” LL (Quiet) is a very slow airflow rate and is
convenient when sleeping.
4 When you want to quickly clean the air
Press the “ ” [TURBO] button.
Pressing again will cancel.
• A high airflow rate will quickly remove any dirtiness in the air.
• This is convenient to use when cleaning.
5 When you want to remove pollen
Press the “ ” [ANTI-POLLEN] button.
Pressing again will cancel.
• Switching the airflow speed every 5 minutes between
“ ” M (Standard) and “ ” L (Low) will catch pollen before they
fall on the floor.
6 When you expel negative ions
Press the “ ” [RELAX] button.
Pressing again will cancel.
• Generates negative ions.
7 When you want to decide a time to stop operation
Press the “ ” [OFF TIMER] button.
• Each time it is pressed the timer setting switches as shown below.
The remaining time will be lit in the “OFF timer setting indicator”.
• When the set time is reached, the operation will automatically
stop.
• The set time can be changed if the button is pressed while the
timer is operating.
8 When you want to change the brightness of the photo
operation lamp and clean monitors
Press the “ ” [BRIGHTNESS] button.
• Each time it is pressed, the display will switch as shown below.
• Only set to OFF when you are concerned about light coming from
the main unit such as when sleeping. The photo operation will
stop simultaneous with the display going Off so if it is always Off,
the odor removal and anti-bacterial performance will drop
9 When you want to prevent incorrect operation
Press the “ ” [LOCK] button for 2 seconds.
Pressing again for 2 seconds will cancel.
• Stops the function of the button other than the “ ” [LOCK]
button on the main unit and buttons on the remote controller.
• This makes it possible to prevent children from operating the unit
incorrectly.
• When you want to release the child lock settings and the remote
controller is not in your hand, remove the power plug once and
then reinsert it and operate the unit.
When you want to operate the unit using
the button on the main unit
When the remote controller is not in your hand, you can use the
“ ” [Operation Switch / Stop] button on the main unit without using the
remote controller. (page 4.)
NOTE
• The unit will not operate for 3 seconds after the front panel or
plasma ionizer is set or power plug is inserted even though
“”
button on the remote controller is pressed.
• Operation will stop for safety when the front panel is opened during
operation.
•
When an incorrect operation is performed during operation
If the main unit display is abnormally on or remote controller is
disabled due to thunder or radio transmission during operation, pull
the power plug and then re-insert it after 3 seconds.
1
3
5
6
8
9
2
4
7
“ ”“ ” “ ”“ ”
LL (Quiet) L (Low) M (
Standard
) H (High)
“ 1 ” (1 hour) “ 2 ” (2 hour) “ 4 ” (4 hour) (Cancel)
(Dark) (Off) (Standard)
<>
Min. 10cm
Min. 50cm
Min. 100cm
Airflow
Min. 50cm
