SiE-64 In Case of ACEF4AV1-(C)(H)
Removal Procedure 37

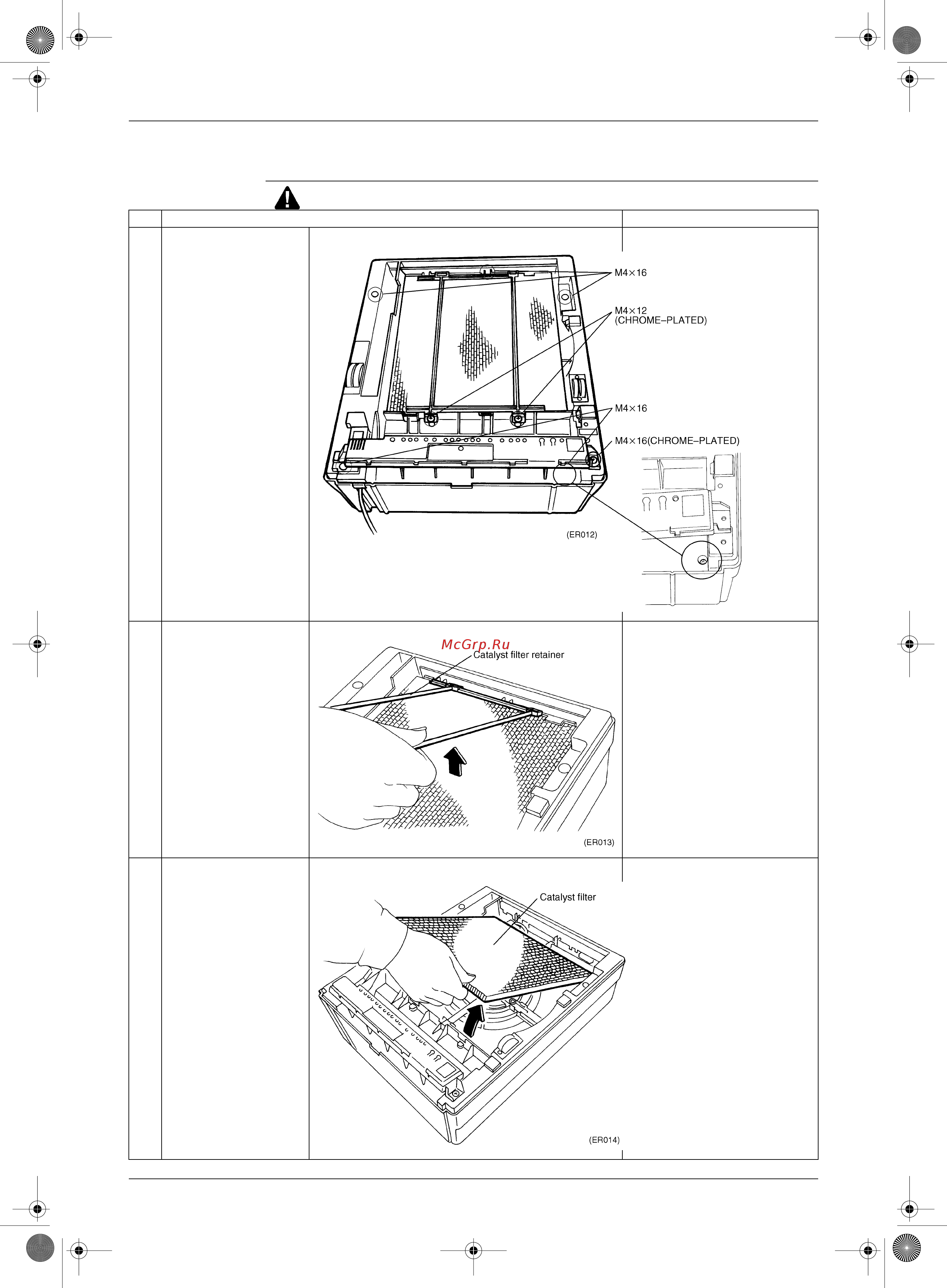

1.3 Removal of Electrical Parts (Inverter Lamp)
Procedure Warning Be sure to turn off all power supplies before disassembling work
Step Procedure Points
1 Remove eight screws.
Remove display box before
remove a screw located at
bottom right of main body
front side.
2 Remove catalyst filter
retainer.
3 Remove catalyst filter.
Si-64.book Page 37 Monday, June 18, 2001 2:57 PM
