User instructions



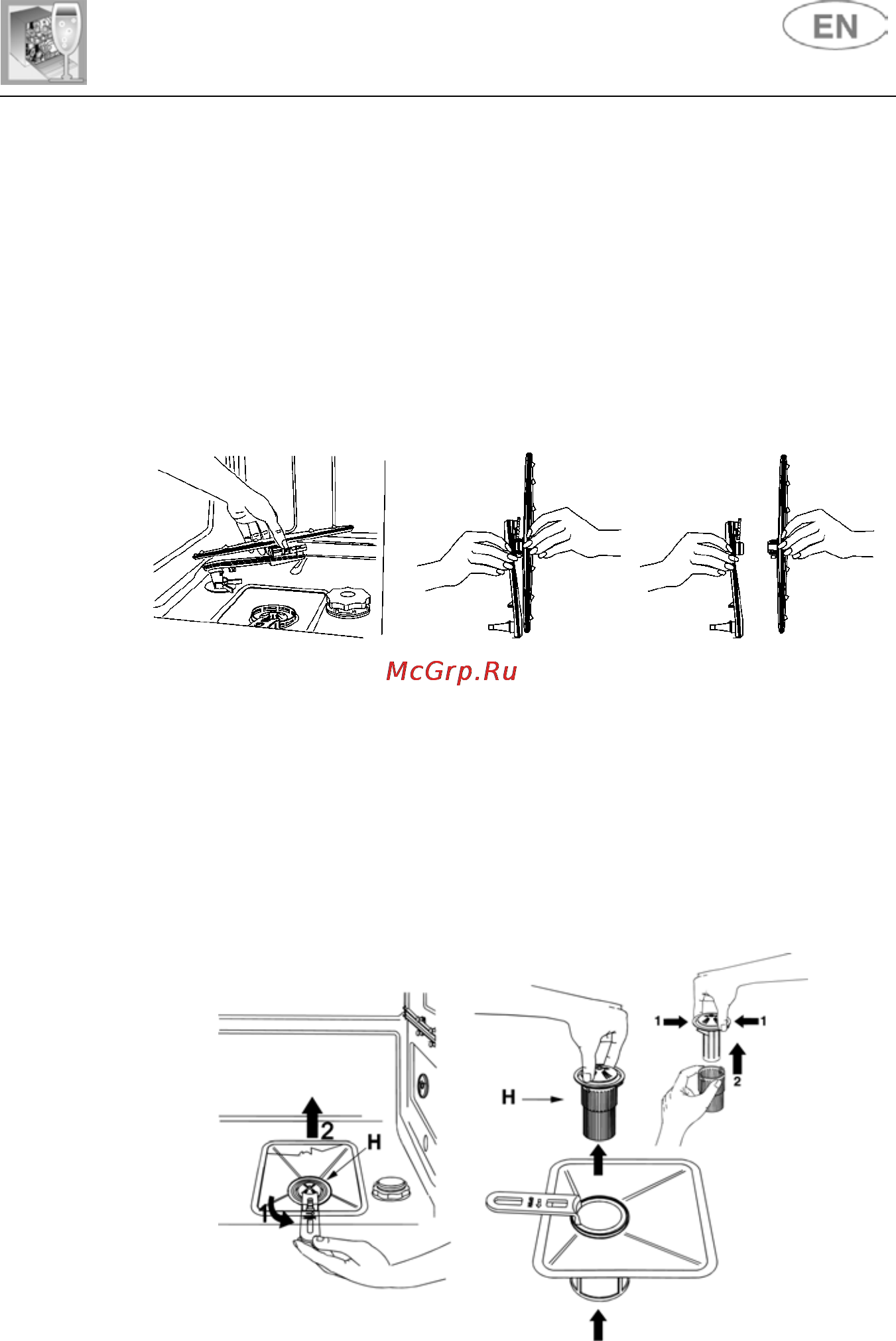

CLEANING THE SPRAY ARM, TRAVELLING VERSION

To remove the TRAVELLING spray arm, take hold of it and raise it to

release both the spray arm and the pipe from the tank, then detach the

spray arm from the pipe. Wash both the pipe and the spray arm in

running water, re-attach the spray arm to the pipe and return the

assembly to the seat provided in the tank.

Once the assembly has been put back in place, check that the

spray arm turns freely (turn through a couple of revolutions by

hand) and that the pipe is able to travel without impediments.

Otherwise, check that it has been fitted correctly.

CLEANING THE FILTER UNIT

•

The central filter

should be inspected regularly and cleaned if

necessary. To remove it, take hold of the handle, turn anti-clockwise

and lift.

•

Press the central filter

from below to extract it from the micro-filter.

•

Separate the two parts of the plastic filter by pressing the body of

the filter in the zone shown by the arrows.

•

Remove the central filter by lifting it.
