EPYCXXXXD4I-2T / EPYXXXXD4I-NL Series
24 25
English
2.10 M.2_SSD (NGFF) Module Installation Guide (M2_1)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2
Socket supports a M.2 SATA3 6.0 Gb/s module or a M.2 PCI Express module up to Gen3
x4 (32Gb/s).
* If M2_1 is occupied by a SATA-type M.2 device, SATA_4 will be disabled.

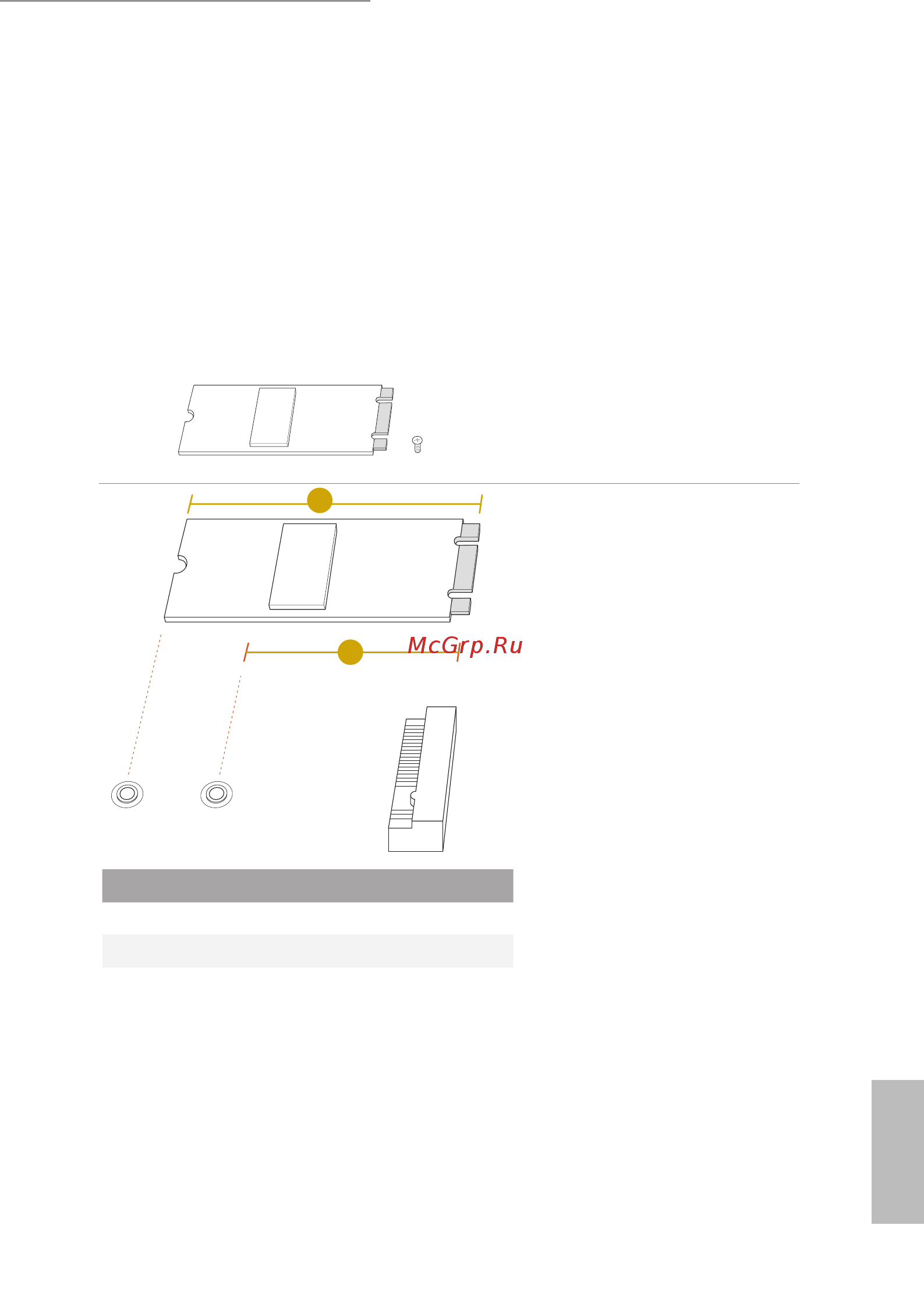

Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
2
1
BA
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
No. 1 2
Nut Location B A
PCB Length 8cm 11cm
Module Type Type2280 Type 22110
