E3C246D4U2-2L2T / E3C246D4U2-2T / E3C242D4U2-2T
14 15
English

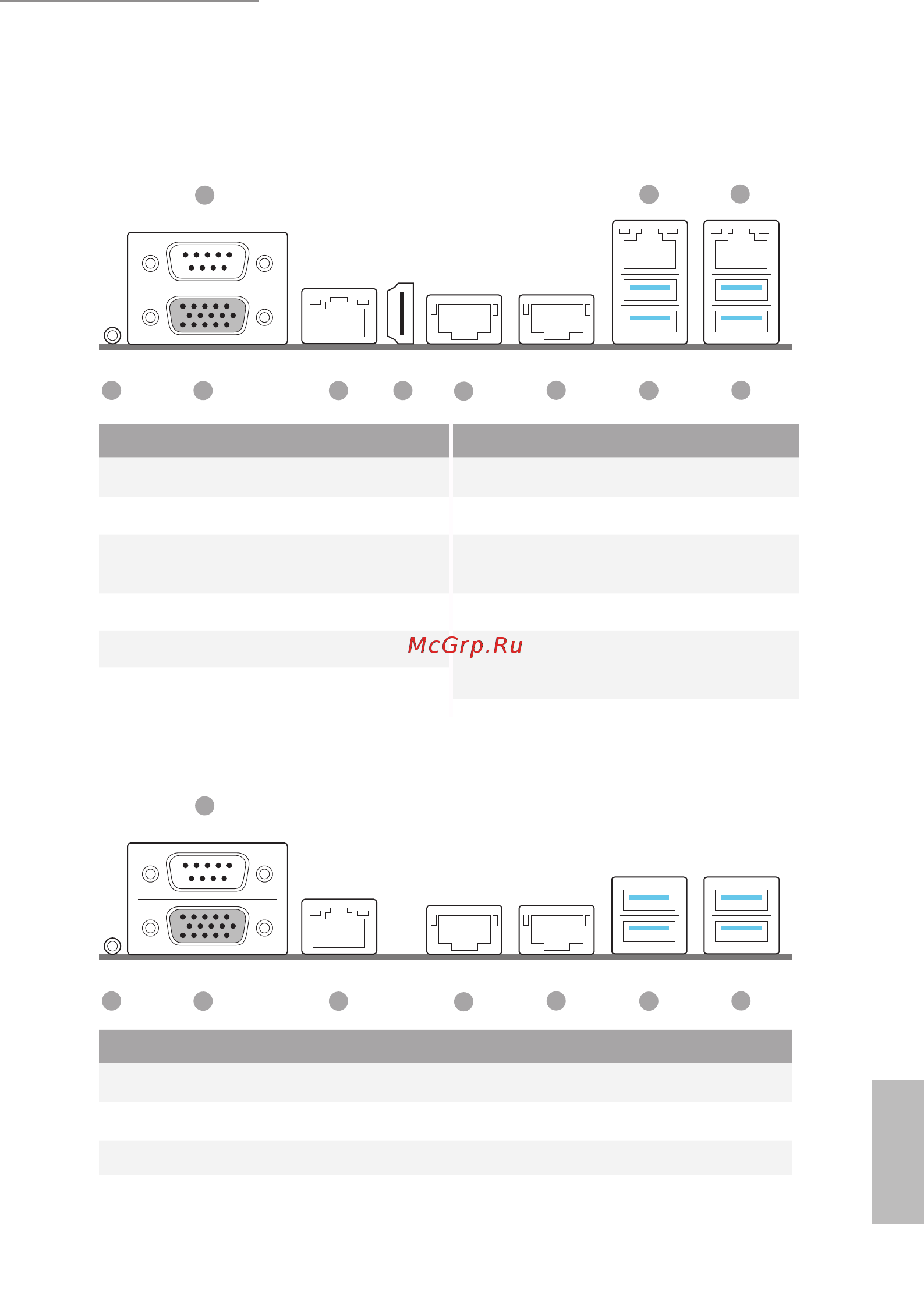

1.6 I/O Panel
E3C246D4U2-2L2T / E3C246D4U2-2T
8
7
4
3
2
10
6
1
5
9
11
No. Description No. Description
1 UID Switch (UID1) 7 10G LAN RJ-45 Port (X550_LAN1)**
2 VGA Port (VGA1) 8 USB 3.1 Gen2 Ports (USB31_1_2)
3 Serial Port (COM1) 9
1G LAN RJ-45 Port (I210_LAN1)***
(E3C246D4U2-2L2T only)
4 LAN RJ-45 Port (IPMI_LAN)* 10 USB 3.1 Gen1 Ports (USB31_3_4)
5 HDMI Port (HDMI)
11
1G LAN RJ-45 Port (I210_LAN2)***
(E3C246D4U2-2L2T only)
6 10G LAN RJ-45 Port (X550_LAN2)**
Note: X550_LAN1 / I210_LAN1 supports NCSI.
E3C242D4U2-2T
7
6
4
3
2
8
5
1
No. Description No. Description
1 UID Switch (UID1) 5 10G LAN RJ-45 Port (X550_LAN2)**
2 VGA Port (VGA1) 6 10G LAN RJ-45 Port (X550_LAN1)**
3 Serial Port (COM1) 7 USB 3.1 Gen2 Ports (USB31_1_2)
4 LAN RJ-45 Port (IPMI_LAN)* 8 USB 3.1 Gen1 Ports (USB31_3_4)
Note: X550_LAN1 supports NCSI.
