1. Features

1.1 Features

Model Range UATY06K~21K

Operation Range

(Outdoor Temp)

5°CDB~52°CDB Cooling

-10°CWB~15.5°CWB Heating

Capacity Range 17.7kW~61.6kW (50/60Hz) Cooling

18.1kW~62.8kW (50/60Hz) Heating

Installation Easy to install on rooftop or veranda, requiring only ducting, power line and drain piping.

Casing The casing is made of paintable galvanized steel plate and treated against rust. Since the unit is installed

outdoors, the casing is completely weather-proof.

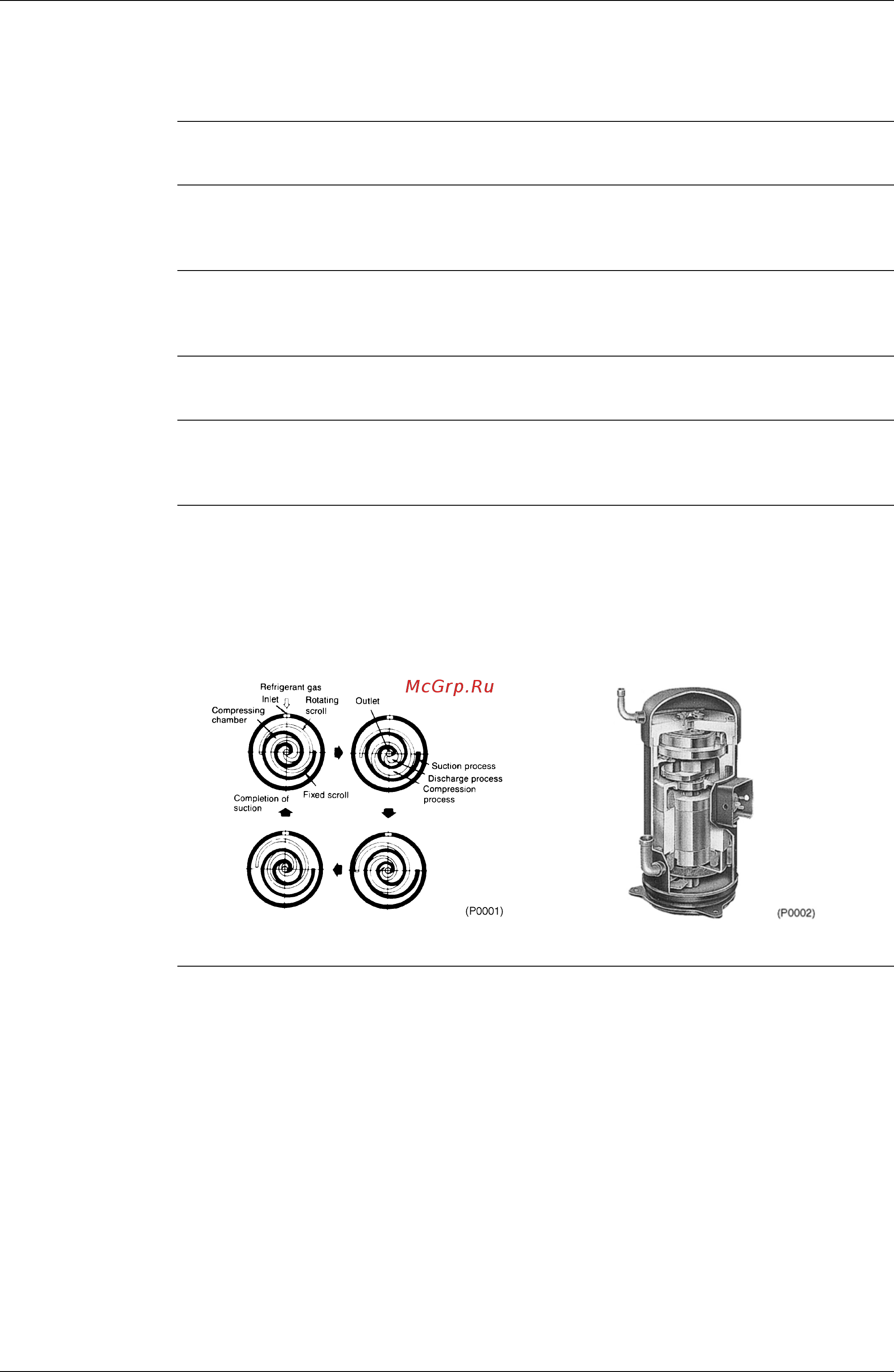

Scroll Compressor Daikin’s innovative scroll compressor is 10% lighter and 30% smaller than equivalent conventional

reciprocating compressors. This makes this series among the industry’s most lightweight and compact,

than previous models. Also, since the scroll compressor generates less vibration, this series has greatly

improved its durability and achieved the industry’s lowest operation sound. Moreover, the installation of the

latest scroll compressor has further improved system efficiency. The recycling guard timer prevents

frequent ON/OFF switching, and protects the compressor against overloads due to short cycling.

<NEW>

Central Remote

Control with VRV

By adopting Central Control Adaptor Kit (DTA107A55), you can control UATY series using like VRV such

as Central Remote Controller (DCS302C61), Schedule Timer (DST301B61) and Unified ON/OFF

Controller (DCS301B61).

With these controller the following functions are available:

1. Operation and Monitoring ON/OFF

2. Setting and Monitoring of Operation Mode

3. Temperature Setting

4. Forced Shut Down

5. Group Control

6. Indication of Alarm

7. Setting of Timer

8. Setting and Cleaning Sign of Air Filter

9. ON/OFF Group Control

For the detail, refer to 15.4 Details of DTA107A55 (Central Control Adaptor Kit).
