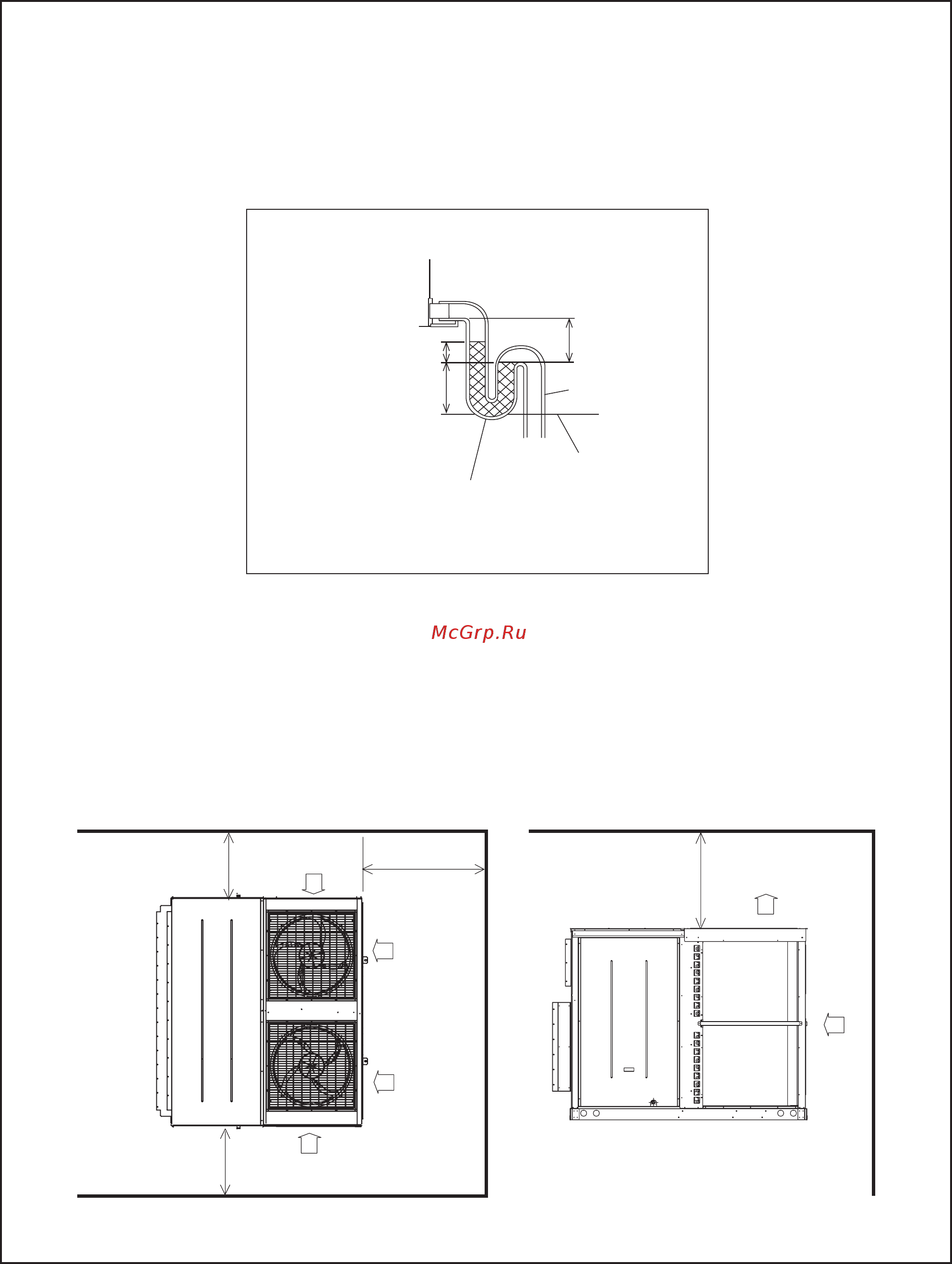

(E) Space Required Around Unit
Refer diagram below for the space required around the unit. Note that:-
(a) All dimensions shown are in mm.
(b) All space value shown are minimum clearance required for the unit.
(c) Unit shown in the diagram is UAT300C. Other models shall follow the same clearance.
(D) Drain Piping
A 1" MPT condensate drain fitting is provided. The drain pipe can be led out at the front side.
The drain pipe must be provided with a trap on the outside of the unit and also installed at an incline for proper
drainage, as shown in the right.
To prevent condensate formation and leakage, provide the drain pipe with insulation to safeguard against
sweating.
Upon completion of piping work, check that there is no leakage and that the water drains off properly.
–
–
–
–
3000
1200
1200
Evaporator coil
& motor service,
Air filter service
1200
Condenser
air inlet
The drain piping should have a drain trap.
Drain piping
The drain pipe
should extend
below this level.
Drain trap
A
B
C
Note: ESP = External Static Pressure
Drain trap for condensate
A 70mm
B 2C
C 2 X ESP
Evaporator coil,
air filter service
Condenser
air inlet
Condenser
air inlet
Condenser
air outlet
Condenser
air inlet
Electrical
control circuit
service &
compressor
service
