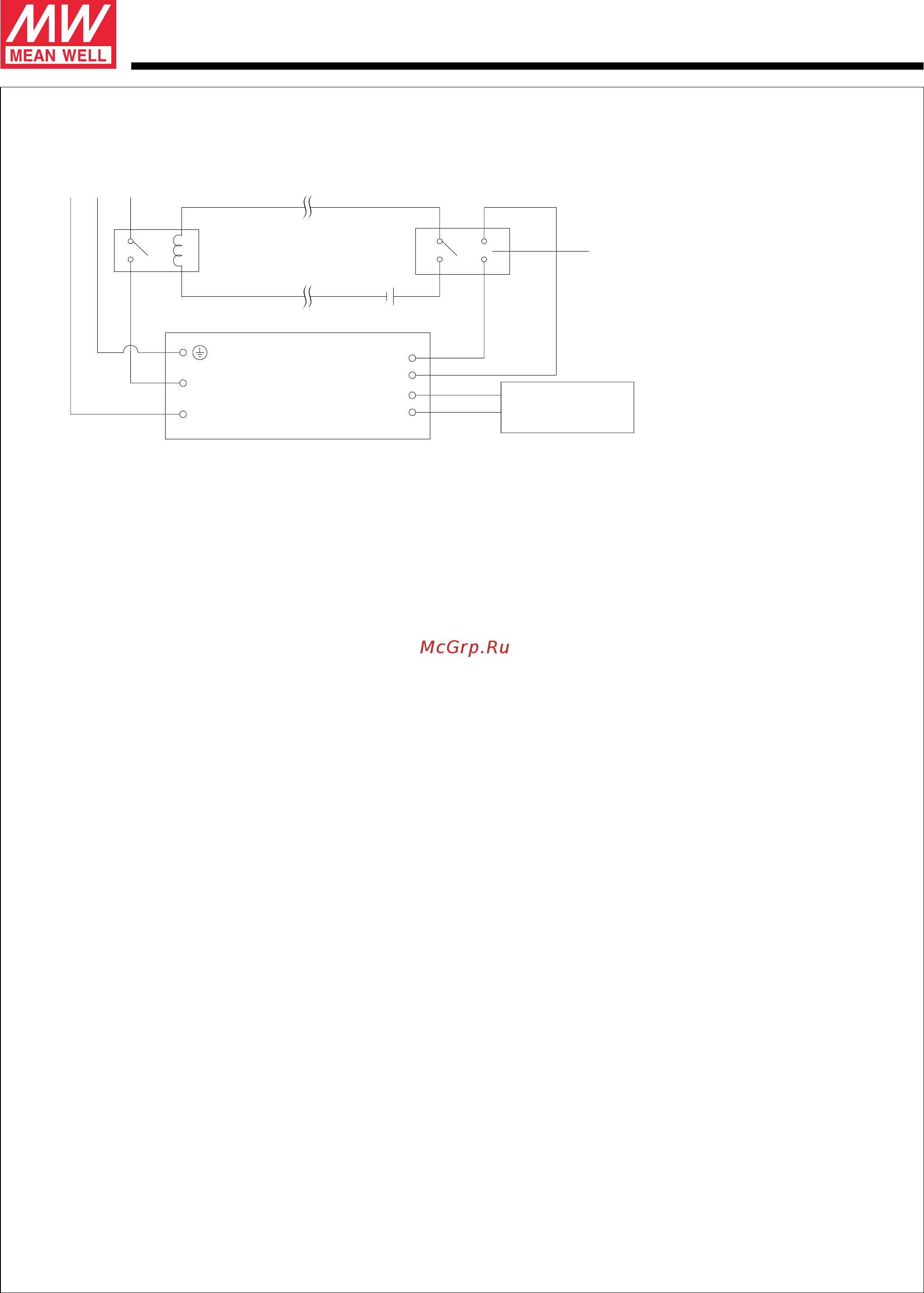

Note: In the case of turning the lighting fixture down to 0% brightness, please refer to the configuration as follow, or please contact MEAN WELL

for other options.

Using a switch and relay can turn ON/OFF the lighting fixture.

NFG L

Relay

Blue

Brown

Green/

Yellow

AC/L

AC/N

HLG-120H-C

B-Type

DIM+

DIM-

V(-)

V(+)

Switch Adjuster

10K/N~100K/N Ohms resistance

1~10V DC Voltage

10V PWM Signal

LED Lighting Fixture

150W Constant Current Mode LED Driver

HLG-120H-C series

File Name:HLG-120H-C-SPEC 2018-09-30

Gray

Black

Brown

Blue
