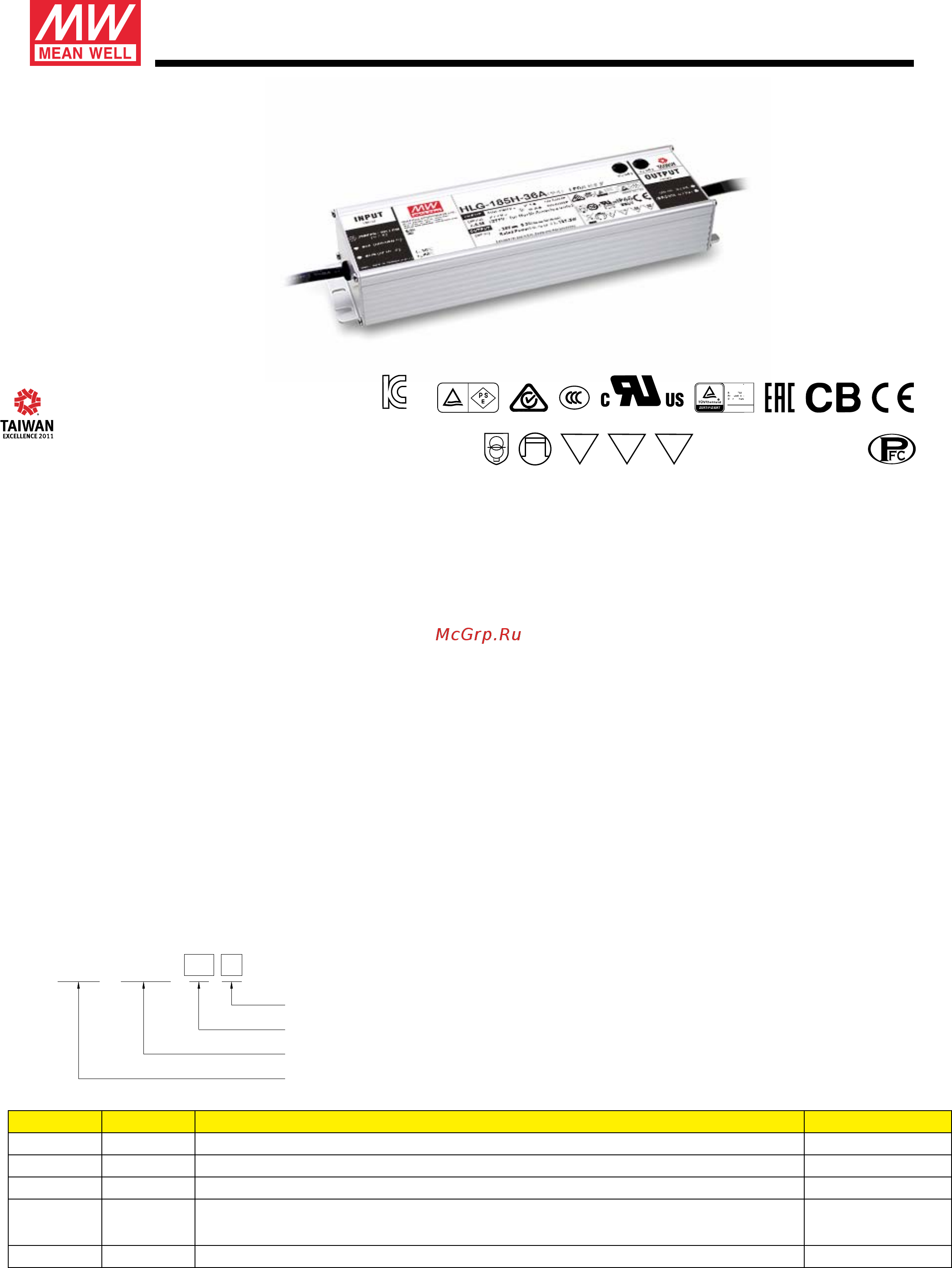

MEAN WELL HLG-185H-54B Datasheet онлайн
185W Constant Voltage + Constant Current LED Driver
HLG-185H series
■ Model Encoding
Function options
Rated output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V)
Rated wattage
Series name
■ Description
HLG-185H series is a 185W AC/DC LED driver featuring the dual mode constant voltage and constant
current output. HLG-185H operates from 90 305VAC and offers models with different rated voltage ranging～
between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is
able to operate for -40 ~ +90℃℃
case temperature under free air convection. The design of metal housing
and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.
HLG-185H
is equipped with various function options, such as
dimming methodologies, so as to provide the optimal design
flexibility for LED lighting system.
■ Features ■ Applications
File Name:HLG-185H-SPEC 2018-12-17
Constant Voltage + Constant Current mode output
Metal housing with class designI
IP67 / IP65 rating for indoor or outdoor installations
•Function options: output adjustable via potentiometer;
3 in 1 dimming
Typical lifetime > 62000 hours
7 years warranty
LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type HL for use in Class , Division 2Ⅰ
hazardous (Classified) location.
SELV
IP65
Bauar
Sicherheit
egel gema
t gepruft
od
be
www.
ID 2000000000
tuv.com
wac g
os
MM
110
IP67
Type HL
HLG -- 185H 24 A
Type
Blank
A
IP Level
IP67
IP65
Io and Vo fixed
Io and Vo adjustable through built-in potentiometer
Function Note
In Stock
In Stock
B IP67 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance)
Timer dimming function, contact MEAN WELL for details(safety pending).
In Stock
D IP67 By request
AB IP65
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance)
Io and Vo adjustable through built-in potentiometer &
In Stock
(except forAB,D-type)
