MEAN WELL HLG-320H-12A [4/10] Dimming operation
![MEAN WELL HLG-320H-12A [4/10] Dimming operation](/views2/1696376/page4/bg4.png)

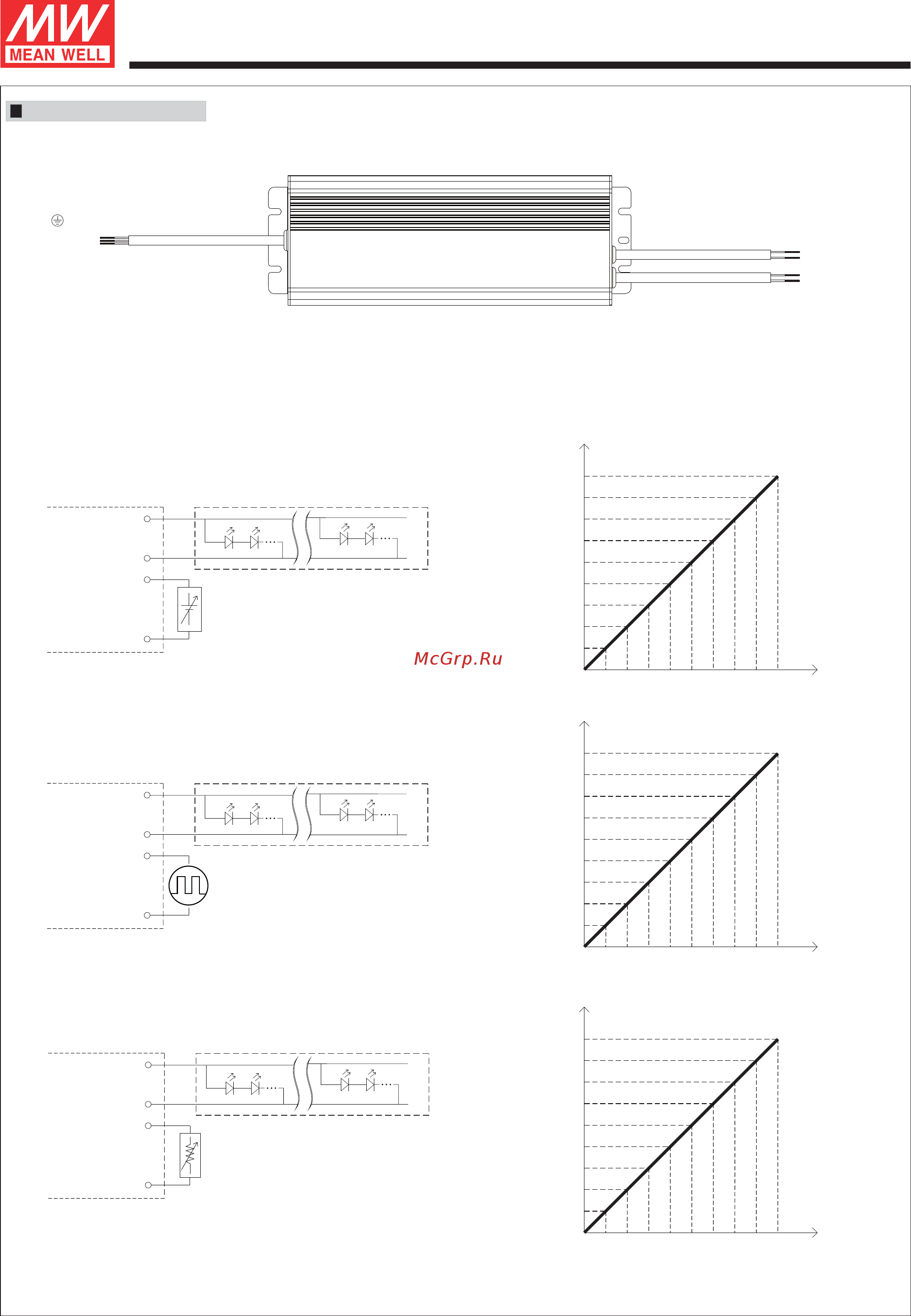

DIMMING OPERATION
File Name:HLG-320H-SPEC 2019-05-28
320W Constant Voltage + Constant Current LED Driver
HLG-320H series
◎ Applying additive 1 ~ 10VDC
◎ Applying additive 10V PWM signal (frequency range 100Hz ~ 3KHz):
◎ Applying additive resistance:
+V
-V
DIM+
DIM-
+
+
+
-
-
-
“DO NOT connect "DIM- to -V"
Additive Voltage
+V
-V
DIM+
DIM-
+
+
-
-
“DO NOT connect "DIM- to -V"
Additive PWM signal
+V
-V
DIM+
DIM-
+
+
-
-
“DO NOT connect "DIM- to -V"
Additive Resistance
1V 2V 3V 4V 5V 6V 7V 8V 9V 10V
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
Output current (%)
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
Output current (%)
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
10K/N
Output current (%)
20K/N 30K/N 40K/N 50K/N 60K/N 70K/N 80K/N 90K/N 100K/N
Dimming input: Additive voltage
Duty cycle of additive 10V PWM signal dimming input
(=N driver quantity for synchronized )dimming operation
Dimming input: Additive resistance
※ 3 in 1 dimming function (for B/AB-Type)
·Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:
1 ~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable with additional drivers.· to be used
Dimming source current from power supply: 1 0 A (typ.)· 0 μ
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
+V(Red)
HLG-320H
-V(Black)
DIM-(White)
DIM+(Blue)
