GB
14
Important
INSTALLATION AND SETUP SHOULD
BE CARRIED OUT BY AN AUTHORISED
TECHNICIAN IN LINE WITH CURRENT
INSTALLATION STANDARDS.
Positioning the hobs
Depending on the model to be installed, an
opening with the dimensions shown in fi-
gure 2 will be cut into the unit’s worktop.
The system for fixing the hob is intended
for use with kitchen units with a thickness
of 20, 30 and 40 mm. In the packaging of
the models VTN DC and TC 620, there is
a template included that is for use in sizing
the space for these glass ceramic hob mo-
dels.
See the fiting hole’s dimensions for each
model on the “dimensions and characteris-
tics” table of this manual. The minimum
distance between the surface supporting
the cooking pans and the lower part of the
kitchen unit or the hood located above the
hob should be 650 mm. If the hood’s ins-
tallation instructions recommend that the
gap is greater than this, you should follow
this advice.
The hobs described in this manual can
only be installed with Teka ovens. Models
with no control knobs are only to be insta-
lled with Teka ovens and/or Teka control
panels.
The unit where the hob and oven will be lo-
cated will be suitably fixed.
INSTALLATION WITH A CUTLERY DRA-
WER OR LOW CUPBOARD (TOUCH
CONTROL MODELS)
If you wish to have a cupboard or cutlery
drawer beneath the hob, you should install
a panel to separate them. This will prevent
accidental contact with the hot surface of
the body of the appliance.
The board should be installed 20 mm
below the bottom of the hob and an empty
Installation

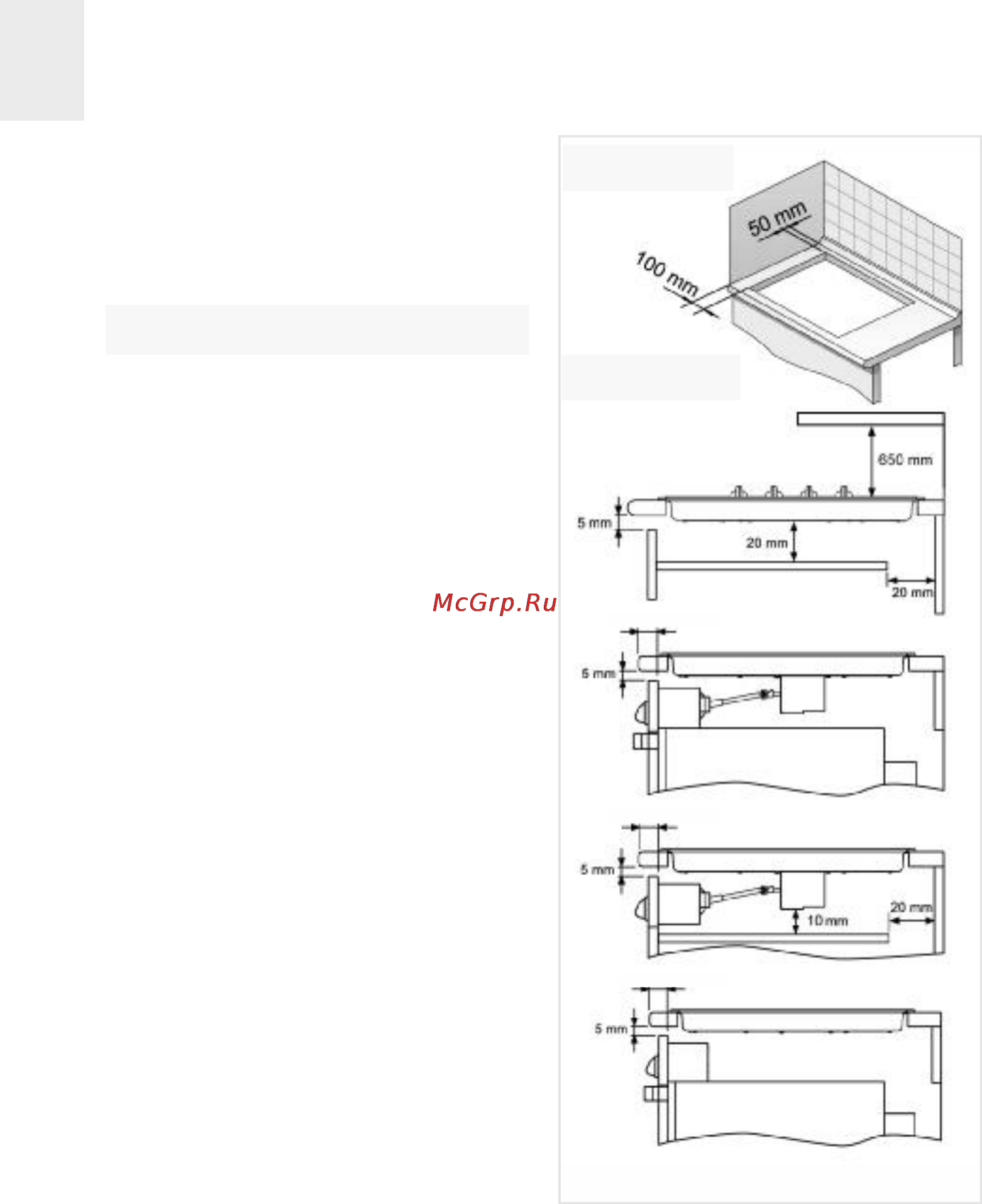

fig. 1
Minimum distances
to walls
Minimum ventilation
distances
OVEN
minimun 40 mm
minimun 40 mm
minimun 40 mm
OVEN
