Thank you for purchasing this Daikin air conditioner.
Carefully read this operation manual before using the air con-
ditioner. It will tell you how to use the unit properly and help
you if any trouble occurs. This manual explains about the
indoor unit only. Use it along with the operation manual for the
outdoor unit. After reading the manual, file it away for future
reference.
Important information regarding the
refrigerant used
This product contains fluorinated greenhouse gases covered
by the Kyoto Protocol.
(1)
GWP = global warming potential
Periodical inspections for refrigerant leaks may be required
depending on European or local legislation. Please contact
your local dealer for more information.
Safety considerations
Be sure to follow them.
〈Before operation, read this operation manual carefully
to operate it properly.〉
• This air conditioner comes under the term “appliances not
accessible to the general public”.
• Cautions indicated here are classified into the follow-
ing two types.
Each type of caution describes important contents
relate to safety. Make sure to observe each caution.
WARNING..............These are the matters with possibil-
ities leading to serious conse-
quences such as death or serious
injury due to erroneous handling.
CAUTION...............These are the matters with possibil-
ities leading to injury or material
damage due to erroneous handling
including probabilities leading to
serious consequences in some
cases.
CAUTION
• Do not place objects in direct proximity of the outdoor
unit and do not let leaves and other debris accumulate
around the unit.
Leaves are a hotbed for small animals which can enter the
unit. Once in the unit, such animals can cause malfunc-
tions, smoke or fire when making contact with electrical
parts.

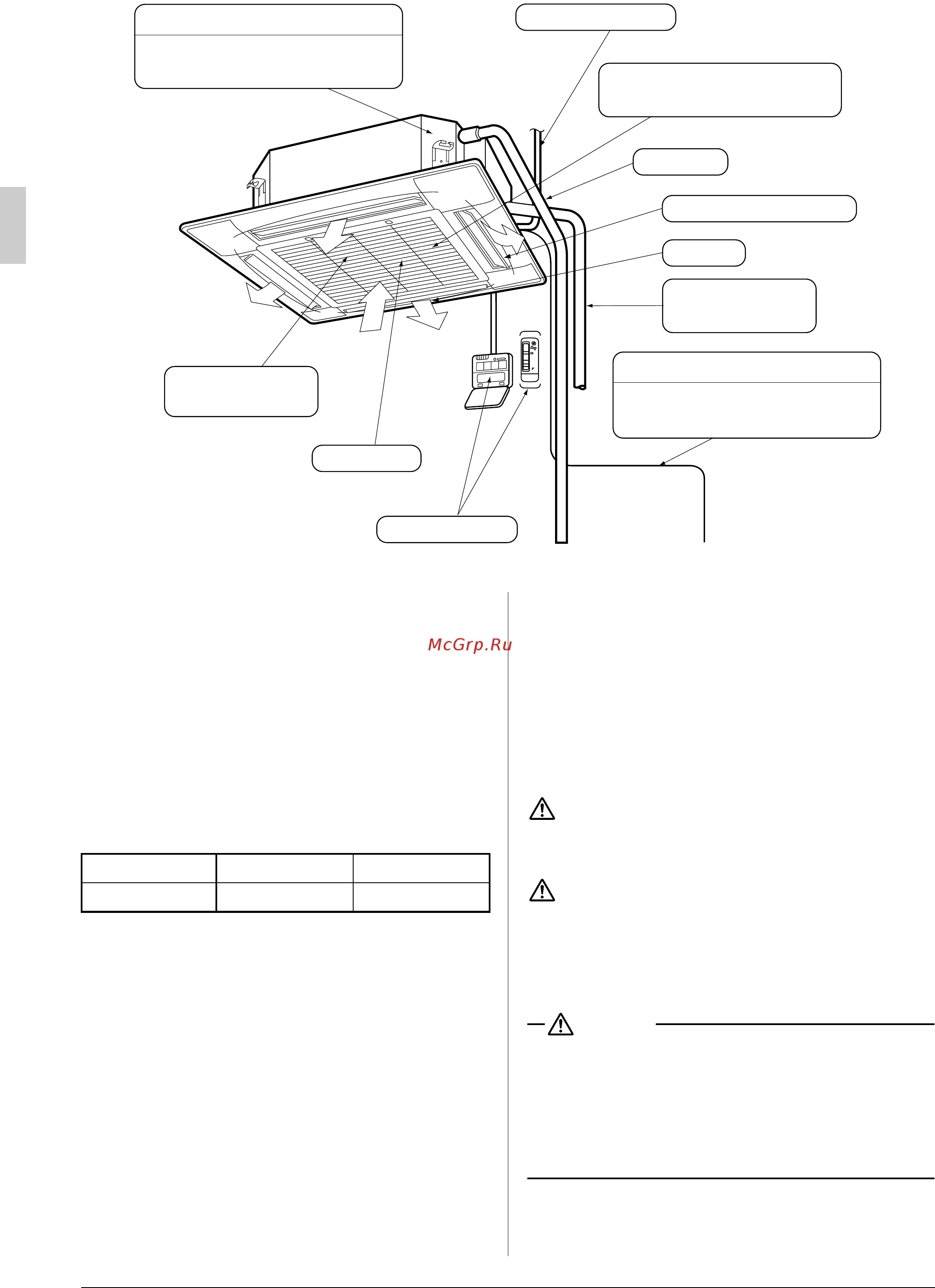

Drain pipe
Remote controller
Suction grille
Drain pumping out device (built-in)
Drains water removed from the room
during cooling.
Power supply wiring
Model name (Model name label)
(On suction grille)
Air flow flap (at air outlet)
Air outlet
Refrigerant pipe
Transmission wiring
Grounding wire
Conducts electricity from the unit into
the ground to prevent electric shock.
Air filter
(inside suction grille)
Refrigerant type R410A R407C
GWP
(1)
value 1975 1652.5
