Griven GRAPH-i-LINE 40 Схема коммутации онлайн
Description :
Revision :
Scale :Code :
Weight :
Note :
http://www.griven.com
1:25
SHEET 1 OF 1A-01
Description :
Revision :
Scale :Code :
Weight :
Note :
http://www.griven.com
Copyright
©
2016 , GRIVEN S.r.l. World Lighting Challenge

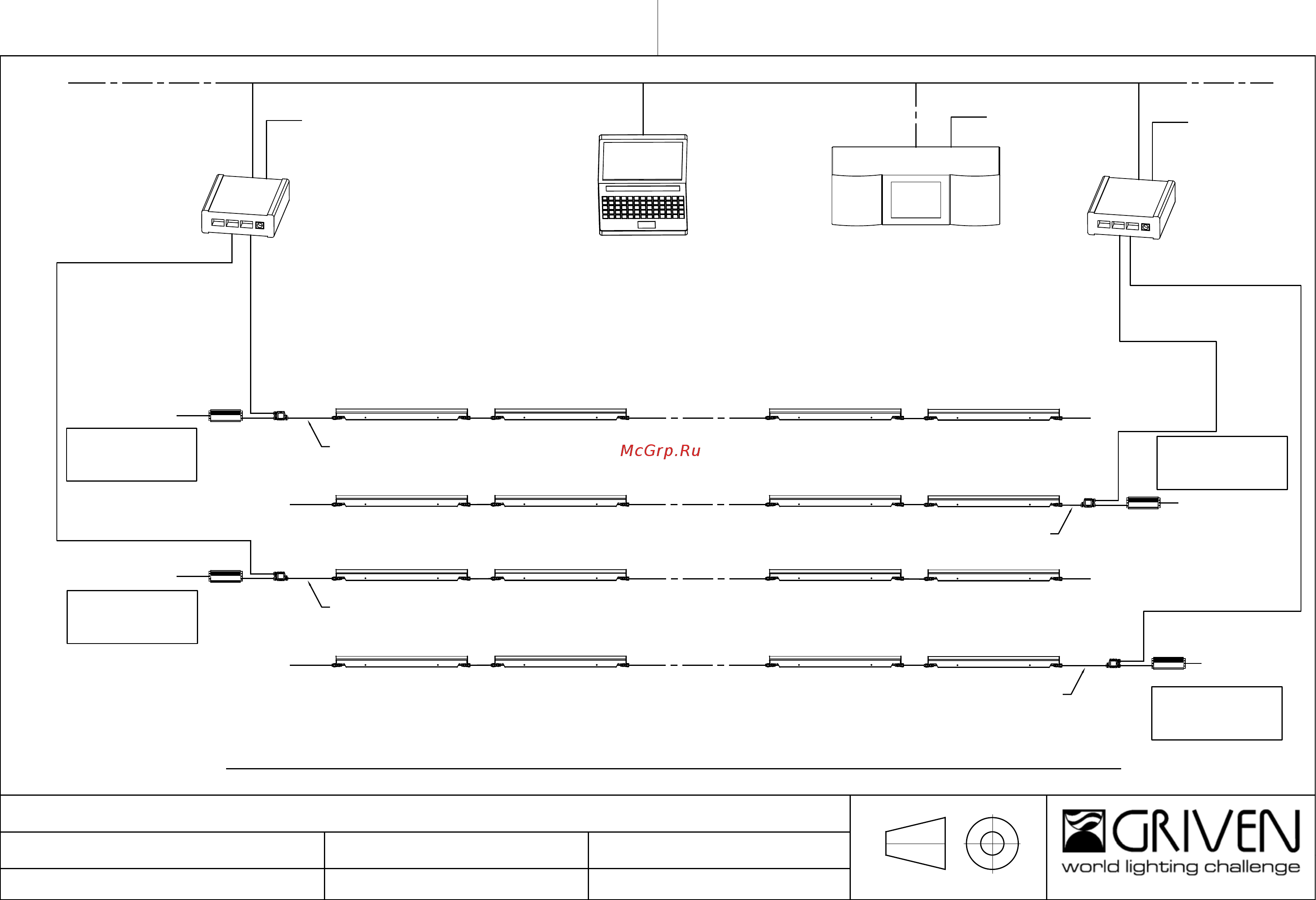

Graph-i-Line - Configuration scheme - 10 Pixel/Mt.
1:25
SHEET 1 OF 1A-01
100 - 277 VAC
AL440502
AL442402
Power supply for
16 fixtures Graph-i-Line 40
or
32 fixtures Graph-i-Line 20
AL2026
DMX output
interface 2x512
channels
16 Graph-i-Line 40 or 32 Graph-i-line 20 fixtures
PC with AL2027
(lighting application software)
AL2025
Lighting media Server
Ethernet LAN
100 - 240 VAC
100 - 240 VAC
CAP AL4418
AL2026
DMX output
interface 2x512
channels
100 - 240 VAC
DMX line
DMX line
16 Graph-i-Line 40 or 32 Graph-i-line 20 fixtures
16 Graph-i-Line 40 or 32 Graph-i-line 20 fixtures
16 Graph-i-Line 40 or 32 Graph-i-line 20 fixtures
This is only an example of configuration scheme. Other configurations can be studied in relation to the client needs.
100 - 277 VAC
AL440502
AL442402
CAP AL4418
DMX line
Power supply for
16 fixtures Graph-i-Line 40
or
32 fixtures Graph-i-Line 20
AL442402
AL442402
AL440502
AL440502
100 - 277 VAC
Power supply for
16 fixtures Graph-i-Line 40
or
32 fixtures Graph-i-Line 20
100 - 277 VAC
Power supply for
16 fixtures Graph-i-Line 40
or
32 fixtures Graph-i-Line 20
DMX line
CAP AL4418
CAP AL4418
DMX line
Max 10 meters from ELECTRONIC DRIVER
to the first Graph-i-Line
Max 10 meters from ELECTRONIC DRIVER
to the first Graph-i-Line
Max 10 meters from ELECTRONIC DRIVER
to the first Graph-i-Line
Max 10 meters from ELECTRONIC DRIVER
to the first Graph-i-Line
