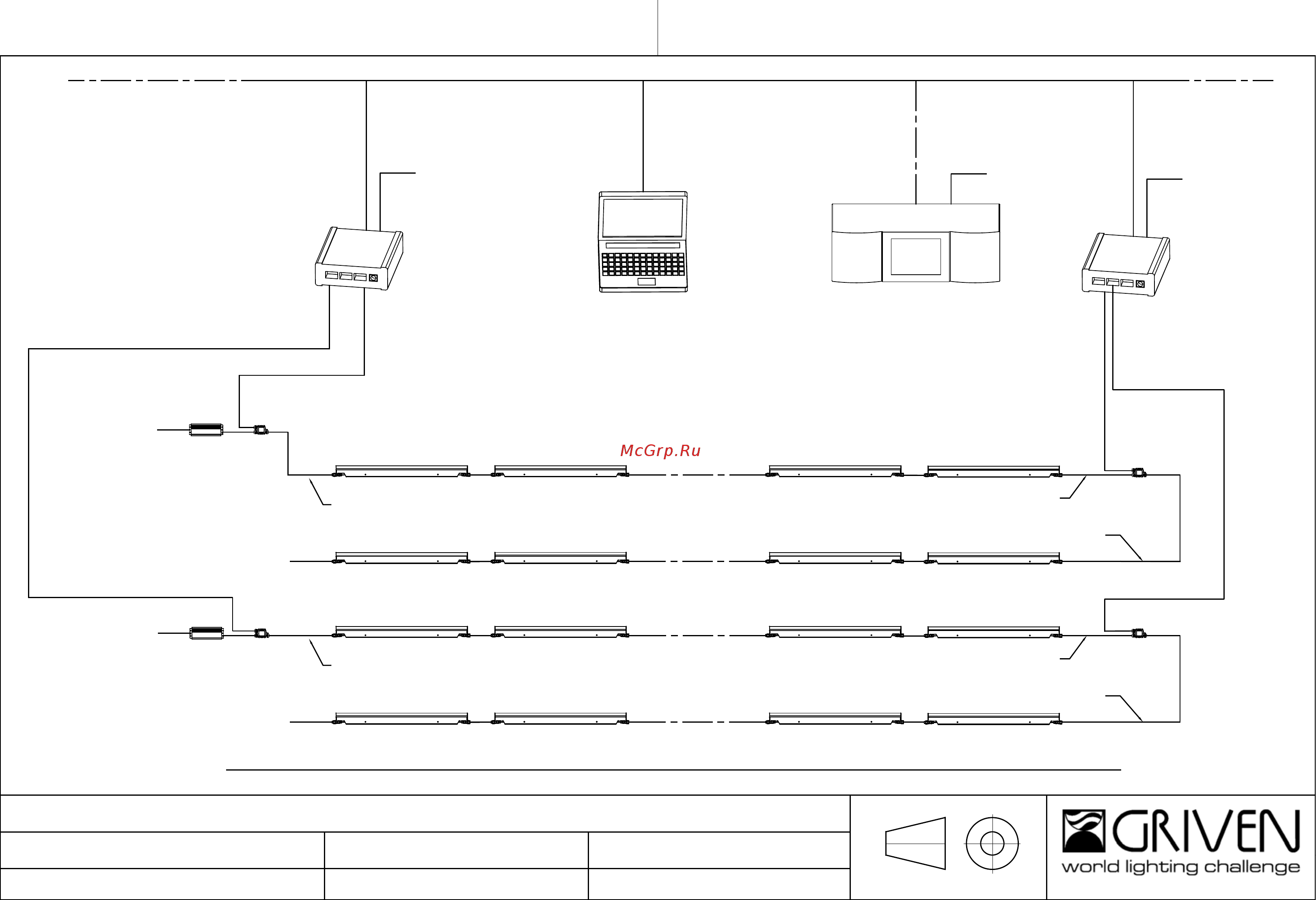

Graph-i-Line - Configuration scheme - 20 Pixel/Mt.
1:25
SHEET 1 OF 1A-01
100 - 277 VAC
AL440502
AL442402
Power supply for
16 fixtures Graph-i-Line 40
or
32 fixtures Graph-i-Line 20
DMX line
AL2026
DMX output
interface 2x512
channels
8 Graph-i-Line 40 or 16 Graph-i-line 20 fixtures
PC with AL2027
(lighting application software)
AL2025
Lighting media Server
Ethernet LAN
100 - 240 VAC
100 - 240 VAC
CAP AL4418
AL2026
DMX output
interface 2x512
channels
100 - 240 VAC
AL442402
DMX line
8 Graph-i-Line 40 or 16 Graph-i-line 20 fixtures
8 Graph-i-Line 40 or 16 Graph-i-line 20 fixtures
8 Graph-i-Line 40 or 16 Graph-i-line 20 fixtures
This is only an example of configuration scheme. Other configurations can be studied in relation to the client needs.
CAP AL4418
100 - 277 VAC
AL440502
Max 10 meters from ELECTRONIC DRIVER
to the first Graph-i-Line
Max 10 meters from ELECTRONIC DRIVER
to the first Graph-i-Line
AL442402
AL442402
DMX line
DMX line
Max 3 meters from Graph-i-Line and Start Line box
Max 3 meters from Start Line box and Graph-i-Line
Max 3 meters from Graph-i-Line and Start Line box
Max 3 meters from Start Line box and Graph-i-Line
