3.2 Connection to mains power

The unit can operate with voltage from 100-277Vac and with frequency of 50 and 60Hz.

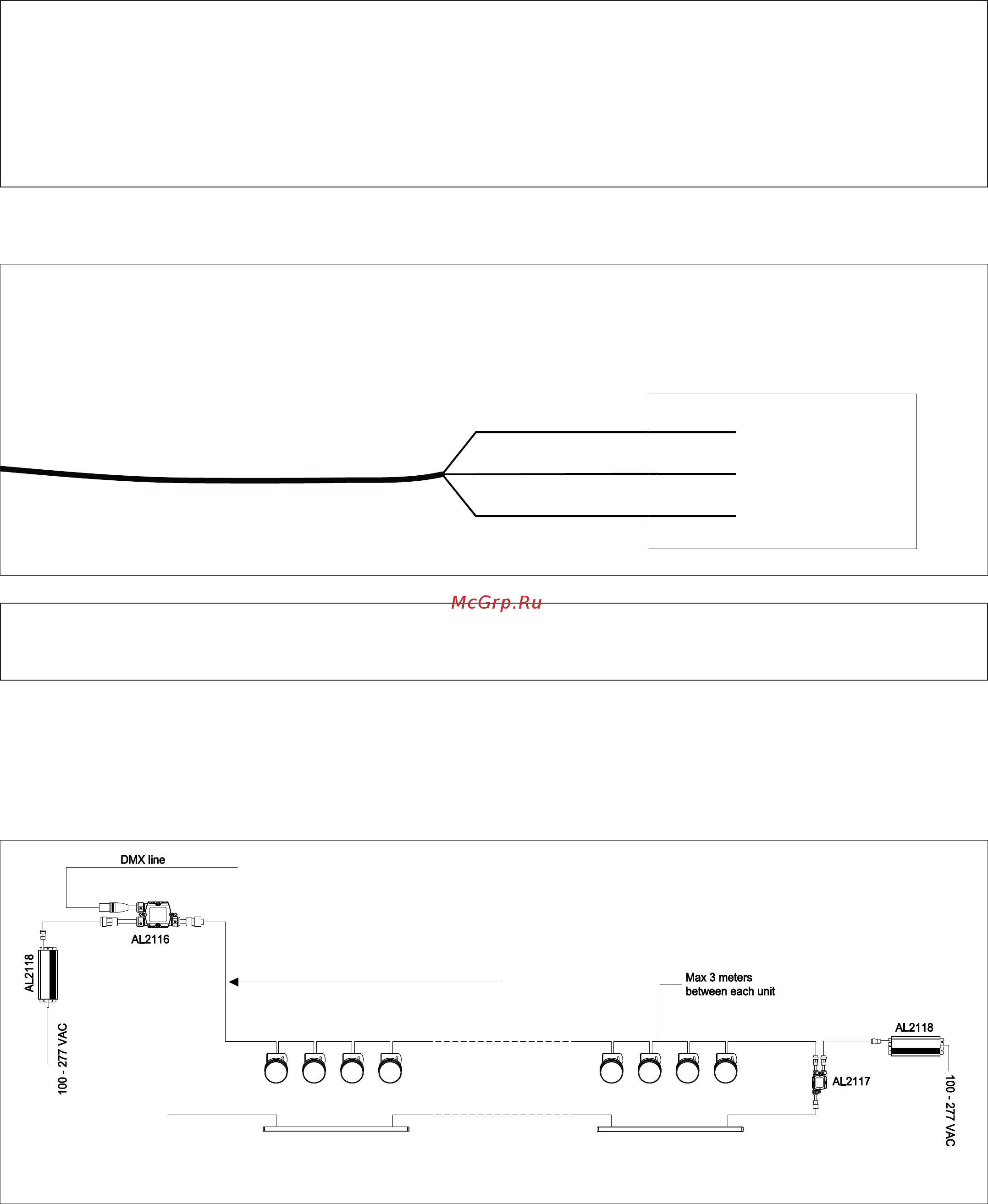

For the connection use main cable in the side of the rear boxl of the fixture and connect as shown below.

3.3 Projectors connection

The electronic driver AL2118 powers up to 16 Graph-i-Spot or 8 Graph-i-tube units.

Connect the units according to the following configuration scheme:

Follow the instructions provided along with the connection kit to perform the connections.

Warning!

• Before connecting the unit, verify that power supplies features are compatible with the unit features.

• The unit must never be installed if not grounded electrically.

• It is suggested to use a magnetothermic switch along the power supply line, as prescribed by in force rules.

• The unit must not be powered up through a dimmer power device.

• Wiring and connection actions are to be performed by a qualified staff.
