Zkteco ZKD17 [4/19] Control panel and ports description

2 Control Panel And Ports Description

1. Touch Monitor Control Panel and Ports Description

(1) OSD Control Panel

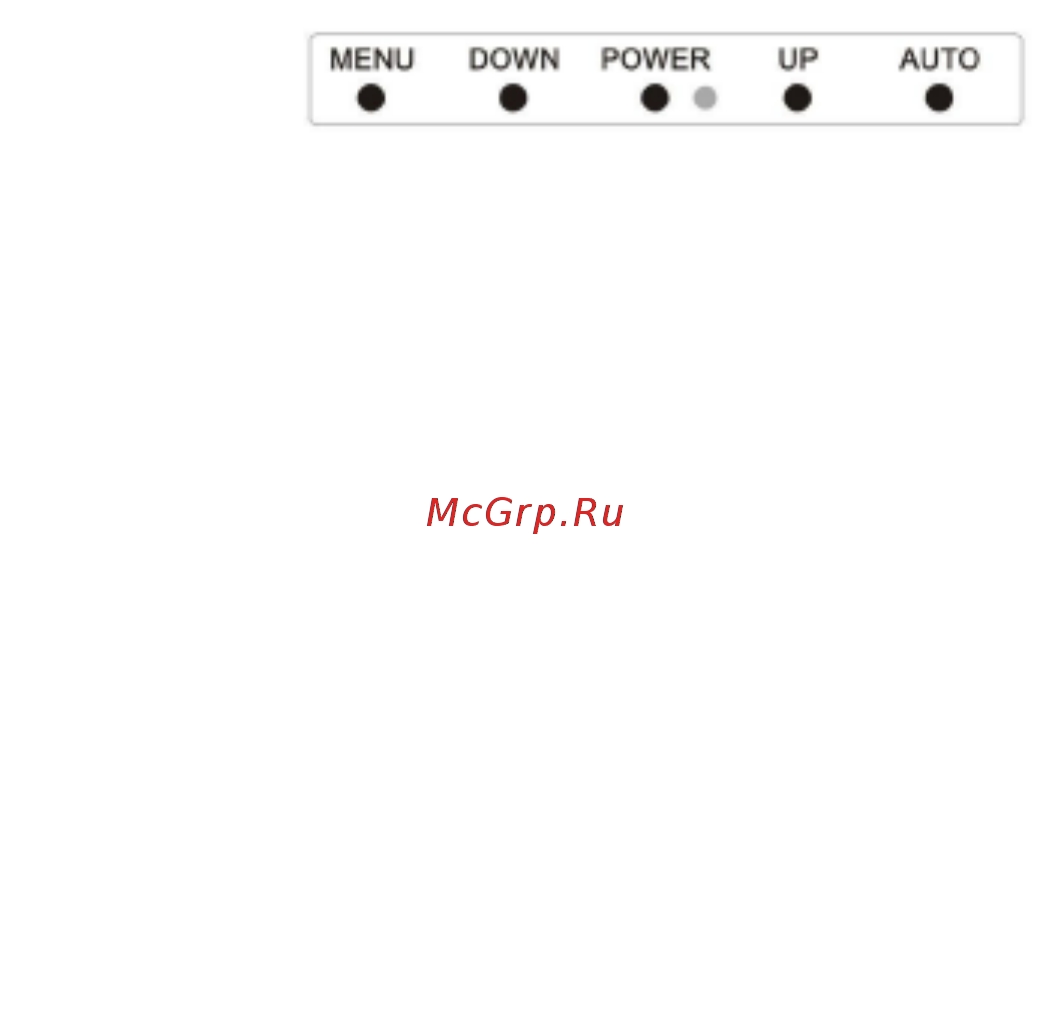

There are five buttons on OSD control panel MENU, DOWN, POWER, UP and

AUTO. The functions of them are following:

Menu Button

Press it to open OSD window, enter user mode to do the function adjustment or

selection of the item. lt may have many levels in one item. As you select this kind

of item, you will enter the next levels and see the sub-items

Down Button

Press it to Scroll item “DOWN” or to decrease the value or to switch the selected

item to another.

Power Button

Control LCD ON /OFF button

Up Button

Press it to Scroll item “UP” or to increase the value or to switch the selected item

to another.

Auto Button

Auto adjust the screen size.
