File Name:ODLC-45-SPEC 2018-09-29

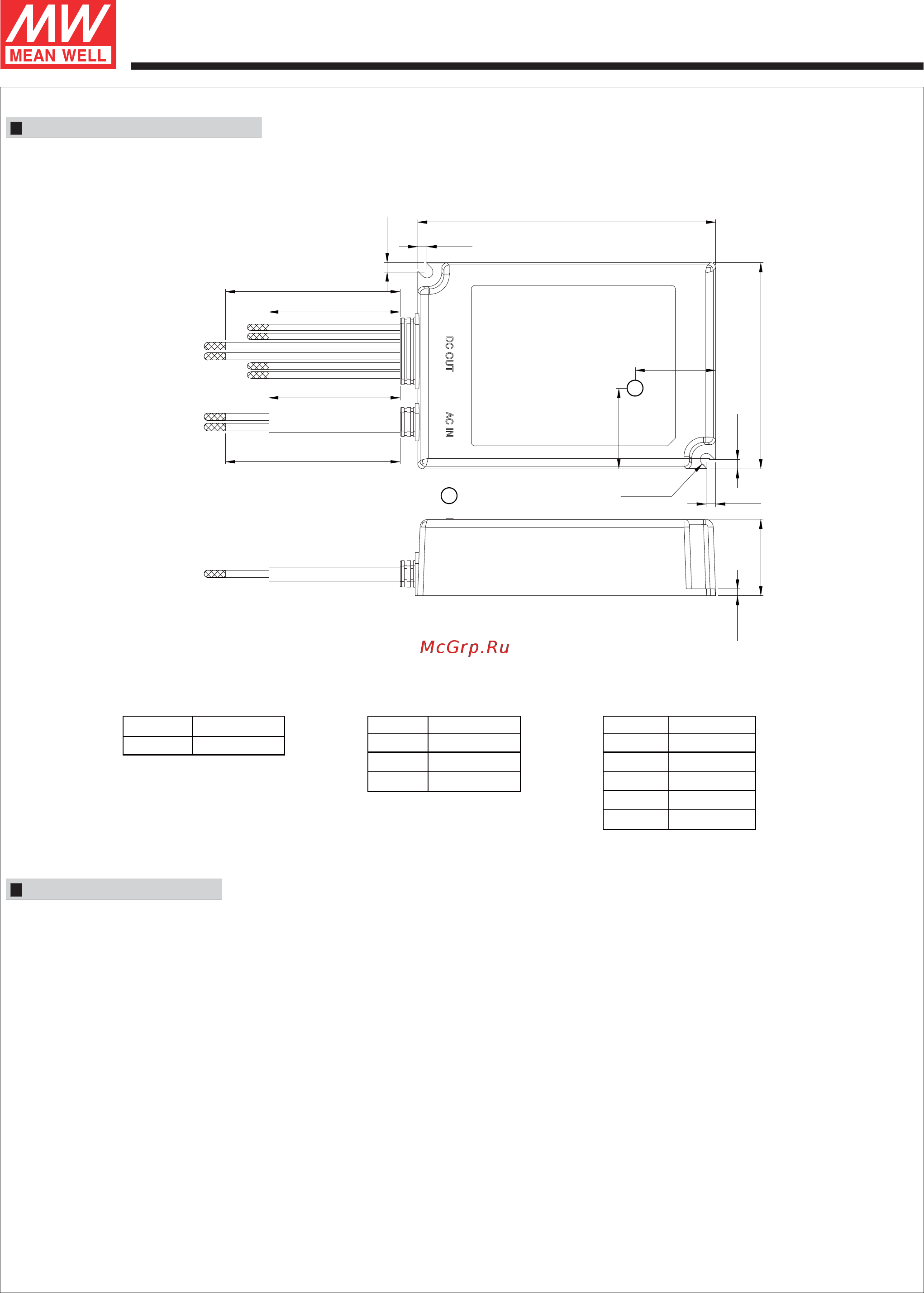

MECHANICAL SPECIFICATION
45W Constant Current Mode LED Driver
ODLC-45 series
Case No.ODLC-45 Unit:mm
Vo+(Red)
Vo-(Black)
DIM+/DA+(Purple)
DIM-/DA-(Gray)
UL1007 22AWG
UL1007 22AWG
UL1007 18AWG
UL1007 18AWG
ODLC-45
DC wire No. Assignment(DC OUT)
ODLC-45A
DC wire No. Assignment(DC OUT)
AUX+(Yellow)*
AUX-(Green)*
Vo+(Red)
Vo-(Black)
DIM+/DA+(Purple)
DIM-/DA-(Gray)
ACL(Brown)
ACN(Blue)
111
77
3.5
3.5
3.5
3.5
2* 4.5ψ
28.5
2.5
150±10
200±10
150±10
200±10
30
30
tc
: Max. Case Temperature
tc
Please refer to : http://www.meanwell.com/manual.html
INSTALLATION MANUAL
AC wire No. Assignment(AC IN)
ACL(Brown)
ACN(Blue)
SVT 18AWG
SVT 18AWG
SVT 18AWG
SVT 18AWG
Vo+(Red)
Vo-(Black)
DIM+(Purple)
DIM-(Gray)
UL1007 22AWG
UL1007 22AWG
UL1007 18AWG
UL1007 18AWG
AUX-(Green)
AUX+(Yellow)
UL1007 22AWG
UL1007 22AWG
*AUX-/AUX+ only for ODLC-45A
