![Daikin FXSQ63PVE4 [51/102] Vrv ⅳ w](/img/pdf.png)
Daikin FXSQ63PVE4 [51/102] Vrv ⅳ w

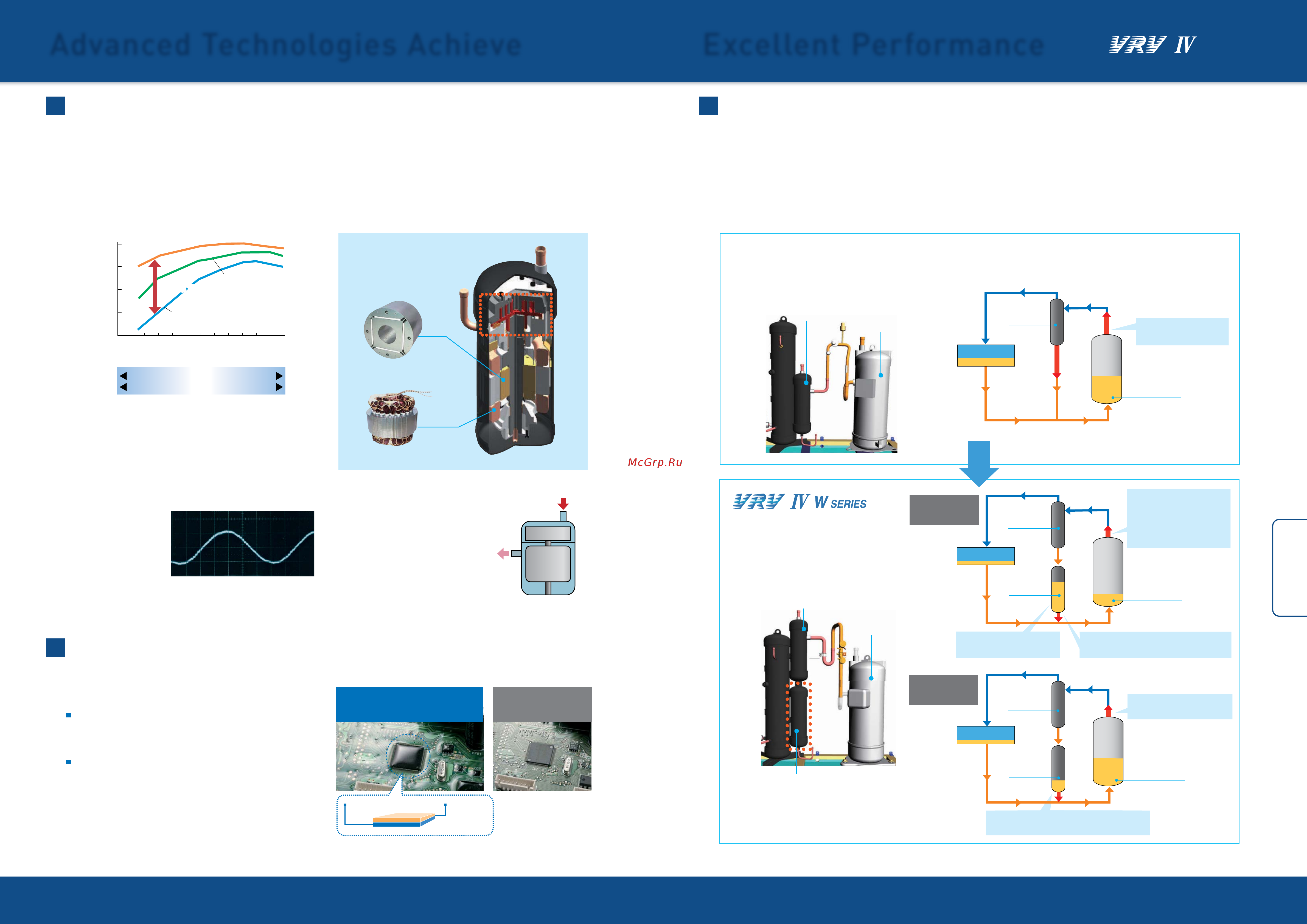

![Daikin FXSQ80PVE [51/102] Vrv ⅳ w](/views2/1704565/page51/bg33.png)
High efficiency compressor to achieve a high COP
Advanced control main PC board
Minimize performance degradation from
refrigeration oil in all stages of operation
97 98
VRV Ⅳ W
SERIES
Heat Pump / Heat Recovery
Newly designed oil receiver
Computer control board
SMT
packaging
material
*SMT: Surface mounted technology
Computer control board
surface adopting SMT
packaging technology
Conventional
computer control
board surface
SMT packaging technology adopted by the whole
computer control panel improves the anti-clutter
performance.
Protects your computer boards from the adverse
effect of sandy and humid weather.
SMT* packaging technology
Conventional VRV III W series
Oil separator
Compressor
Sine wave DC inverter
Smooth sine wave DC inverter
Use of an optimised
sine wave smoothes
motor rotation,
further improving
operating efficiency.
Daikin DC inverter models are equipped with the Reluctance DC motor for compressor.
The Reluctance DC motor uses 2 different types of torque, neodymium magnet*
1
and
reluctance torque*
2
. This motor can save energy because it generates more power with a
smaller electric power than an AC or conventional DC motor.
Compressor equipped with Reluctance DC motor
Reluctance DC motor
Conventional DC motor
AC motor
Rotational speed (rps)
Motor efficiency (%)
90
80
70
60
50
0 30 60 90 120
More than 20%More than 20%
Small load
Low capacity
Large load
High capacity
Scroll compressor
Scroll section
Suction
Discharge
Motor
section
Note: Data are based on studies conducted under controlled conditions at
a Daikin laboratory using Daikin products.
*1 A neodymium magnet is approximately 10 times stronger than a
standard ferrite magnet.
*2 The torque created by the change in power between the iron and
magnet parts.
Sucked gas is compressed in
the scrolling part before the
heated motor, so that the
machine compress the
non-expanded gas, resulting
in high efficiency
compression.
Reluctance
DC motor
New oil receiver
Oil separator
Compressor
Refrigeration oil discharged from the compressor
circulates in the refrigerant cycle and lowers the
heat transfer capabilities of the indoor and outside
unit heat exchangers.
Surplus oil is stored in the oil receiver
and automatically controls the amount of
refrigeration oil in the refrigerant cycle.
This prevents a reduction in performance
for heat exchanger.
Compressor
Oil
separator
Indoor unit
Reduced oil discharge
despite high-speed
revolutions because
proper amount of oil is
supplied
Amount of oil stored in
oil receiver increases
Increase in amount
of oil discharge
Reduced oil discharge
due to low revolutions
Oil
separator
Oil
receiver
Compressor
Surplus oil is stored to supply proper
amount of oil to the compressor
Compressor
Oil
separator
Oil
receiver
Surplus oil is stored to supply proper
amount of oil to compressor
During
high load
Oil flows to the indoor and outside unit
heat exchangers through the oil separator.
High-speed
revolutions
Oil flow is not controlled
Excessive amount
of discharged oil
High-speed
revolutions
Low-speed
revolutions
During
low load
Indoor unit
Indoor unit
Adding a container vessel (Oil Receiver) helps eliminate performance degradation by retaining
refrigeration oil and preventing excessive oil from flowing to the heat exchanger.
The new design enables the oil receiver to automatically supply the compressor with only the
necessary amount of oil.
Advanced Technologies Achieve Excellent
Performance
W
SERIES
