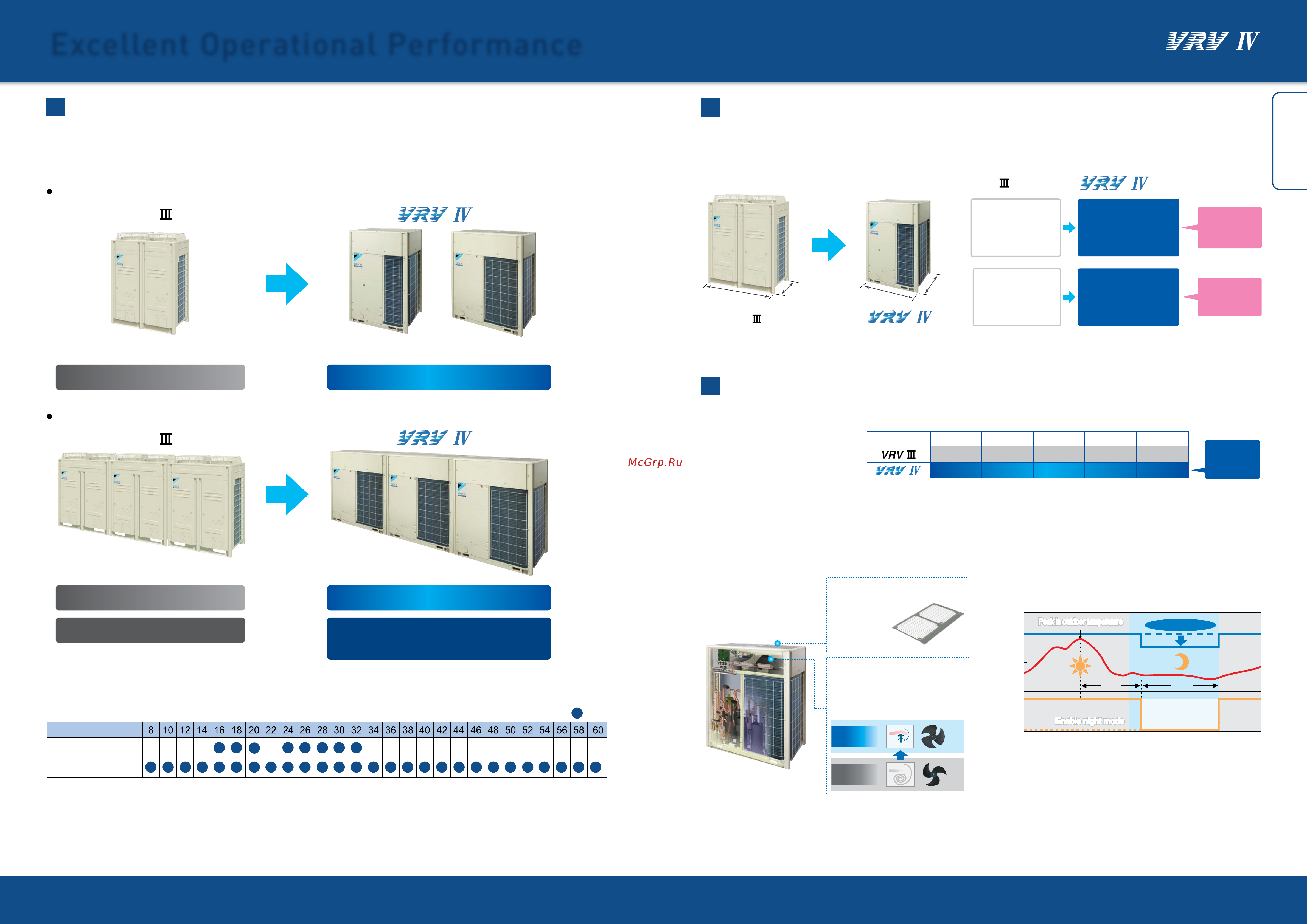

Excellent Operational Performance
Enhanced Lineup
With its enhanced lineup of 2 types-High-COP and Standard types, VRV Ⅳ Heat Recovery series outdoor units offer a higher
capacity up to 60 class (168 kW) to meet an ever wider variety of needs.
2 types up to 60 class
Lineup
Ease of installation
Compact & lightweight design
Highly-integrated VRV Ⅳ system offers compact outdoor units to achieve maximum utilisation of the installation space.
Comfort
Lower operation sound
Improve heat exchanger efficency,
helps to reduced operation sound.
VRV IV
Heat Recovery
Heat Recovery
class
High-COP Type
Standard Type
Mo/C
VRV
Up to 16 class
8, 10, 12, 14, 16 class
Up to 20 class
8, 10, 12 class 14, 16, 18, 20 class
Single Outdoor Unit
Up to 60 class
VRV
Up to 48 class
2 types of High-COP type
and Standard type
1 type only
Multiple Outdoor Units
Outdoor PCB automatically memorises the time when the
peak outdoor temperature appears. It will enable quiet
operation mode after 8 h
*1
, and return to normal mode after it
keeps for 9 h
*2
.
*1. 8 h is the initial setting with 6 h or 10 h also available.
*2. 9 h is the initial setting with 8 h or 10 h also available.
*3. In case of 10 class outdoor unit during cooling operation.
Streamlined air grille
It promotes the discharge of
swirling airflow, further
reducing the
pressure loss.
Streamlined scroll fan
The sharp edge of each fan blade
has a certain curvature, reducing
both the vibration and the pressure
loss.
Streamlined
scroll fan
Illustrated
fan
8 class 10 class 12 class 14 class
58
56 57 59 60
58 60 62
16 class
61
63
1
˜
2 dB(A)
reduction than
conventional
model
Sound level(dB(A))
Nighttime quiet operation function
Without increasing operation sound, advanced analytical
technologies are utilised to optimise fan design and increase
airflow rate and high external static pressure.
Large airflow, high static pressure and
quiet technology
VRV
12 class(33.5 kW)
12 class
(33.5 kW)
1,300 mm
765
mm
765
mm
930 mm
Installation
Space
0.71 m
2
28%
Decrease
Product
Weight
230 kg
30%
Decrease
VRV
12 class
12 class
Product
Weight
331 kg
Installation
Space
0.99 m
2
(33.5 kW) (33.5 kW)
Peak in outdoor temperaturePeak in outdoor temperaturePeak in outdoor temperature
Enable night mode Enable night mode Enable night mode
Note: · This function is available in setting at site.
· The operating sound in quiet operation mode is the actual value
measured by our company.
· The relationship of outdoor temperature (load) and time shown
above is just an example.
Operating
sound (dB)
Load
(%)
Capacity
(%)
Night mode
min.
45 dB(A)
8 hrs
8:00
50
100
0
45
57
12:00 16:00 20:00 0:00
4:00
8:00
9 hrs
VRV IV VRV IV
*3
