MEAN WELL PLP-60-24 [3/3] Plp 60

10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

230V

115V

0 . 7 8

0 . 8 0

0 . 8 2

0 . 8 4

0 . 8 6

0 . 8 8

0 . 9 0

0 . 9 2

0 . 9 4

0 . 9 6

0 . 9 8

1 . 0 0

5 0 % 6 0 % 7 0 % 8 0 % 9 0 % 1 0 0 %

2 3 0 V

1 1 5 V

PLP-60 series possess superior working efficiency that up to 89% can be reached in field applications.

LOAD

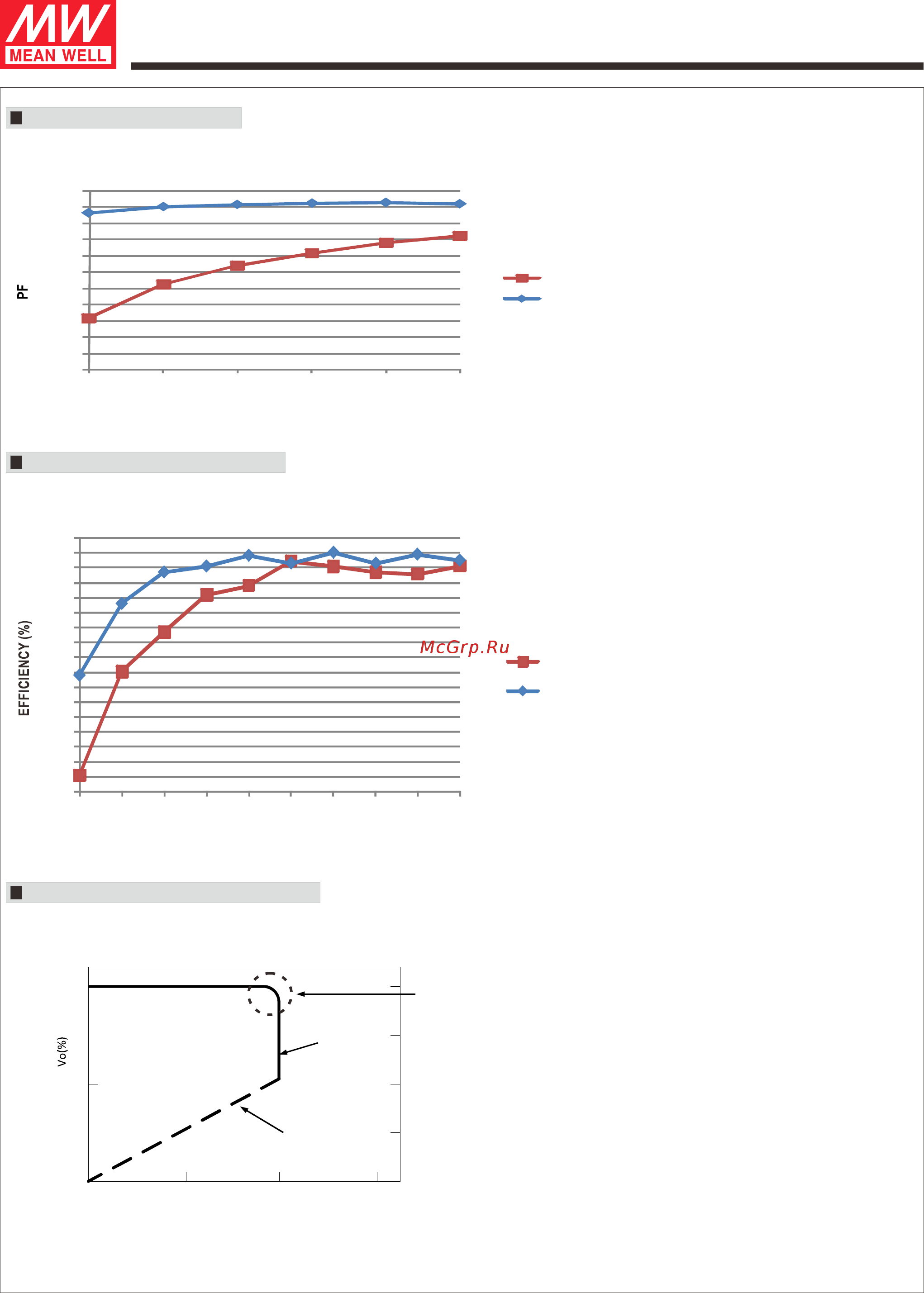

Power Factor Characteristic

EFFICIENCY vs LOAD (48V Model)

Constant Current Mode

LOAD

DRIVING METHODS OF LED MODULE

(60W)

This LED power supply is suggested to work in constant current mode area (CC) to drive the LEDs.

Typical LED power supply I-V curve

100

50 100

(min.)

Io (%)

Constant

Current area

Hiccup

Protection

In the constant current region, the highest voltage at the output of the driver

depends on the configuration of the end systems.

Should there be any compatibility issues, please contact MEAN WELL.

File Name:PLP-60-SPEC 2015-02-12

PLP-60

seri e s

60W Single Output LED Power Supply
