MEAN WELL PWM-120-12DA [7/7] Pwm 120ble

120W PWM Output Casambi Bluetooth LED Driver

Installation Manual

AC/L(BROWN)

AC/N(BLUE)

◎Cautions

Before commencing any installation or maintenance work, please disconnect the power supply from the utility. Ensure‧

that it cannot be re-connected inadvertently!

Keep proper ventilation around the unit and do not stack any object on it. Also a 10-15 cm clearance must be kept when ‧

the adjacent device is a heat source.

Mounting orientations other than standard orientation or operate under high ambient temperature may increase the ‧

internal component temperature and will require a de-rating in output current.

Current rating of an approved primary /secondary cable should be greater than or equal to that of the unit. Please refer ‧

to its specification.

For LED drivers with waterproof connectors, verify that the linkage between the unit and the lighting fixture is ‧

tight so that water cannot intrude into the system.

Tc max. is identified on the product label. Please make sure that temperature of Tc point will not exceed limit.‧

‧Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30

minutes.

‧The power supply is considered as a component that will be operated in combination with final equipment. Since EMC

performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC

Directive on the complete installation again.

‧For more information about installation, http://www.meanwell.com/manual.html for details.Please refer to :

+V(RED)

-V(BLACK)

LED Strip

or constant

voltage LED

bulb

File Name:PWM-120BLE-SPEC 2019-11-06

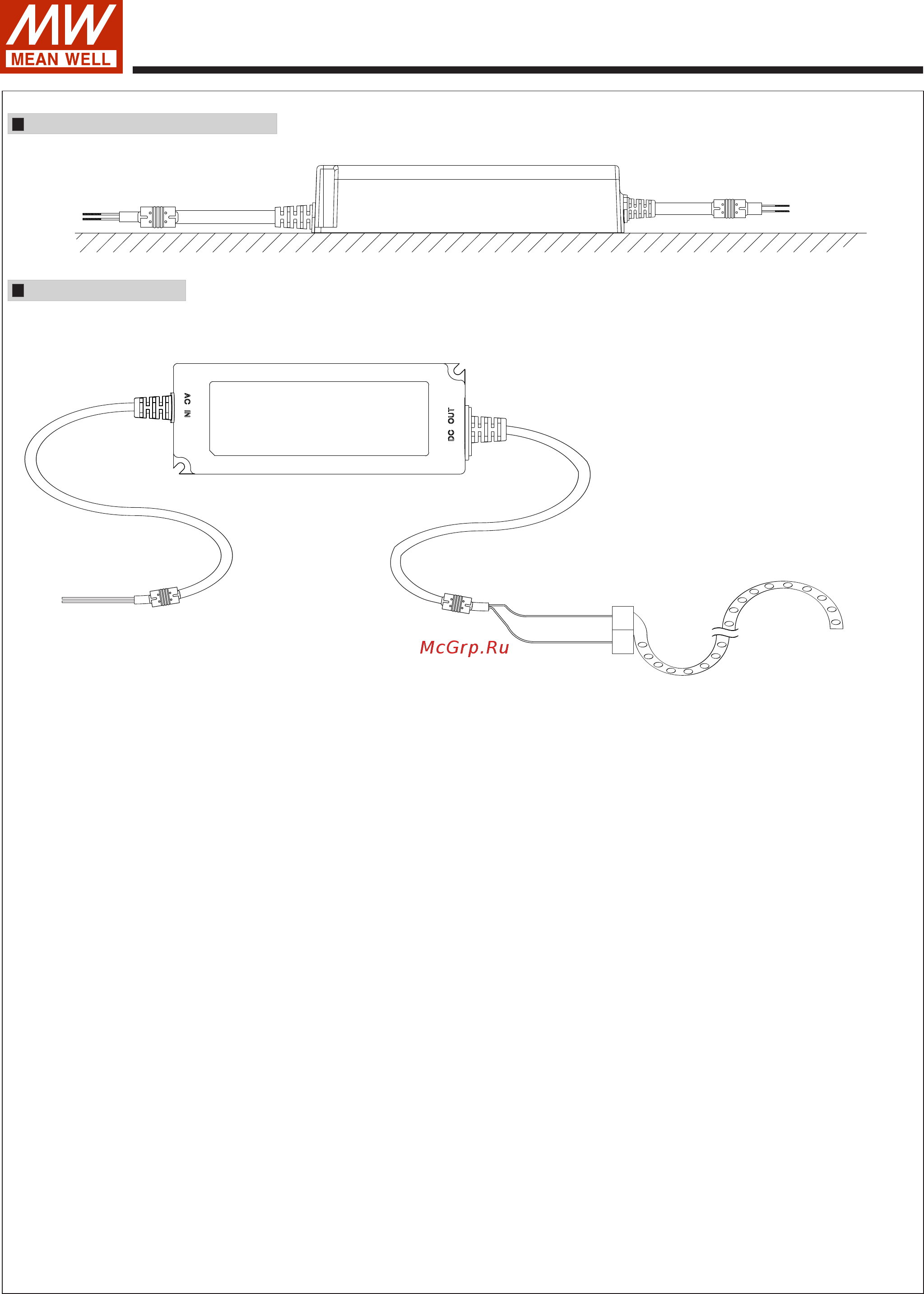

Recommend Mounting Direction

PWM-120BLE
