MEAN WELL PWM-120-36 [8/8] Pwm 12

120W PWM Output LED Driver

PWM-120 series

Installation Manual

AC/L(BROWN)

AC/N(BLUE)

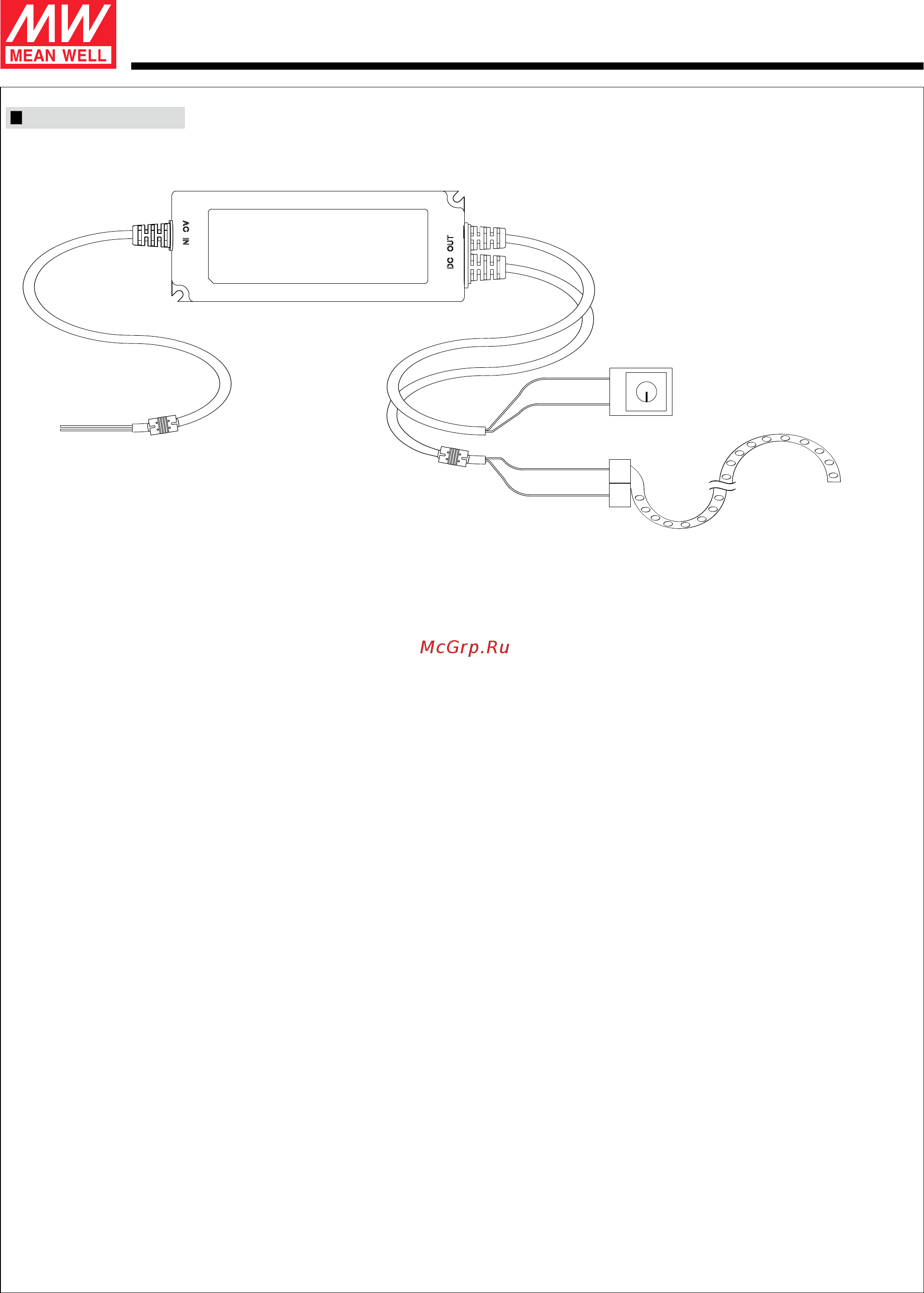

◎Connection for Blank-type

◎Cautions

Before commencing any installation or maintenance work, please disconnect the power supply from the utility. Ensure

that it cannot be re-connected inadvertently!

Keep proper ventilation around the unit and do not stack any object on it. Also a 10-15 cm clearance must be kept when

the adjacent device is a heat source.

Mounting orientations other than standard orientation or operate under high ambient temperature may increase the

internal component temperature and will require a de-rating in output current.

Current rating of an approved primary /secondary cable should be greater than or equal to that of the unit. Please refer

to its specification.

For LED drivers with waterproof connectors, verify that the linkage between the unit and the lighting fixture is

tight so that water cannot intrude into the system.

For dimmable LED drivers, make sure that your dimming controller is capable of driving these units.PWM series

require 0.15mA each unit.

Tc max. is identified on the product label. Please make sure that temperature of Tc point will not exceed limit.

DO NOT connect "DIM- to -V".

Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30

minutes.

The power supply is considered as a component that will be operated in combination with final equipment. Since EMC

performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC

Directive on the complete installation again.

For more information about installation, for details. http://www.meanwell.com/manual.htmlPlease refer to :

File Name:PWM-120-SPEC 2017-08-04

+V(RED)

-V(BLACK)

DIM-(WHITE)

DIM+(BLUE)

LED Strip

0~10Vdc or 10V PWM

or resistance Dimmer
