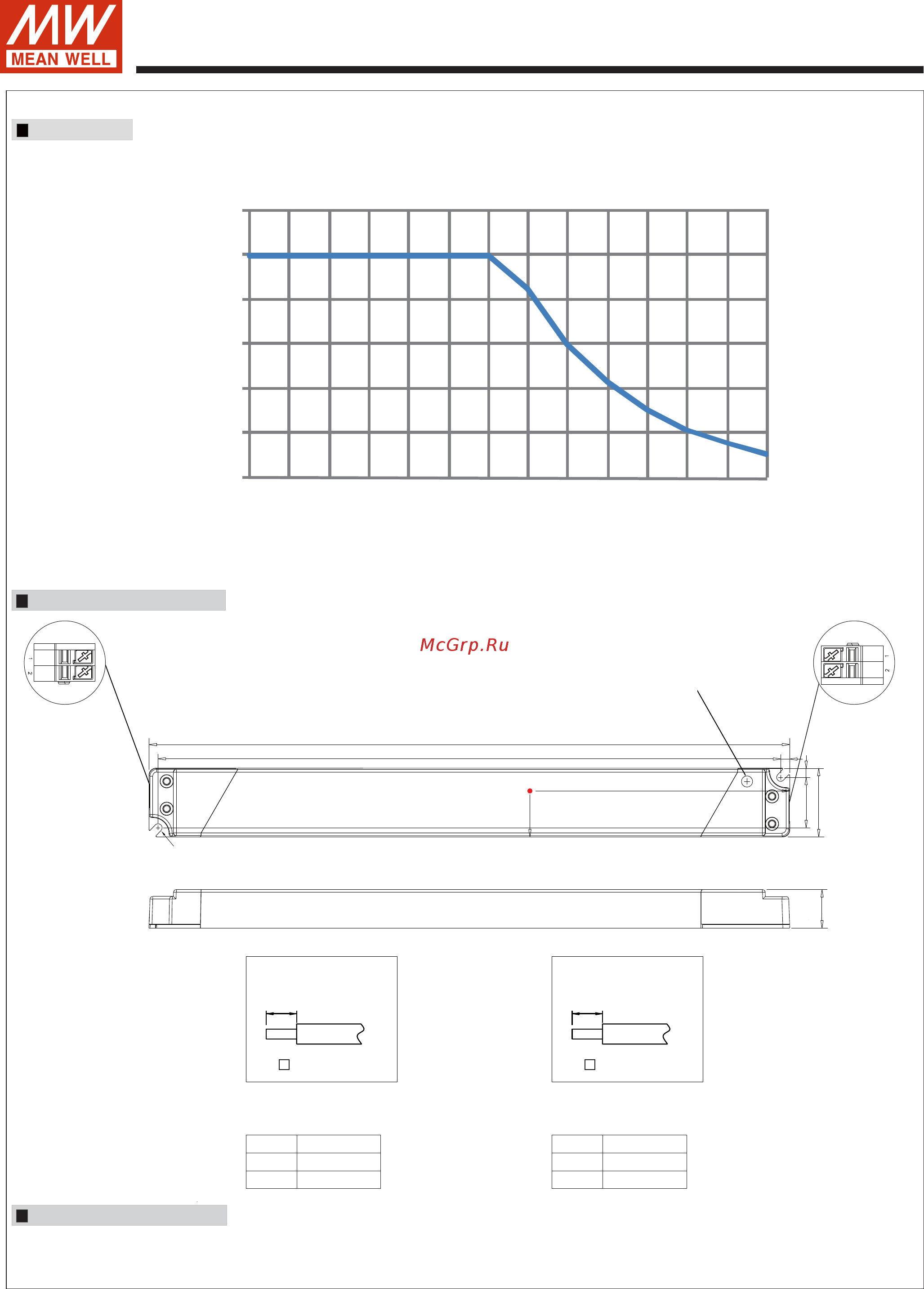

SLD-50 series
50W linear LED Driver
File Name:SLD-50-SPEC 2019-11-13
LIFE TIME
0
20
40
60
80
100
120
25 30 35 40 45 50 55 60 65 70 75 80 85 90
Tcase (℃)
LIFETIME(Kh)
INSTALLATION MANUAL
Please refer to http://www.meanwell.com/manual.html:
Mechanical Specification
Unit:mm
280
113.6
Tcase
20.1
※ T case: Max. Case Temperature.
16.8
30
4
22
272
4
2-φ3.5
TB1
56V with Io adjustable
Terminal Pin No. Assignment (TB1) :
DEGSON DG219-3.5(GRAY)
Terminal Pin No. Assignment (TB2) :
DEGSON DG219-3.5(RED/BLACK)
Pin No. Pin No.
11
22
Assignment Assignment
AC/N -V
AC/L +V
9-10mm
0.75-1.50mm
2
TB2 wiring:
9-10mm
0.75-1.50mm
2
TB1 wiring:
TB2
