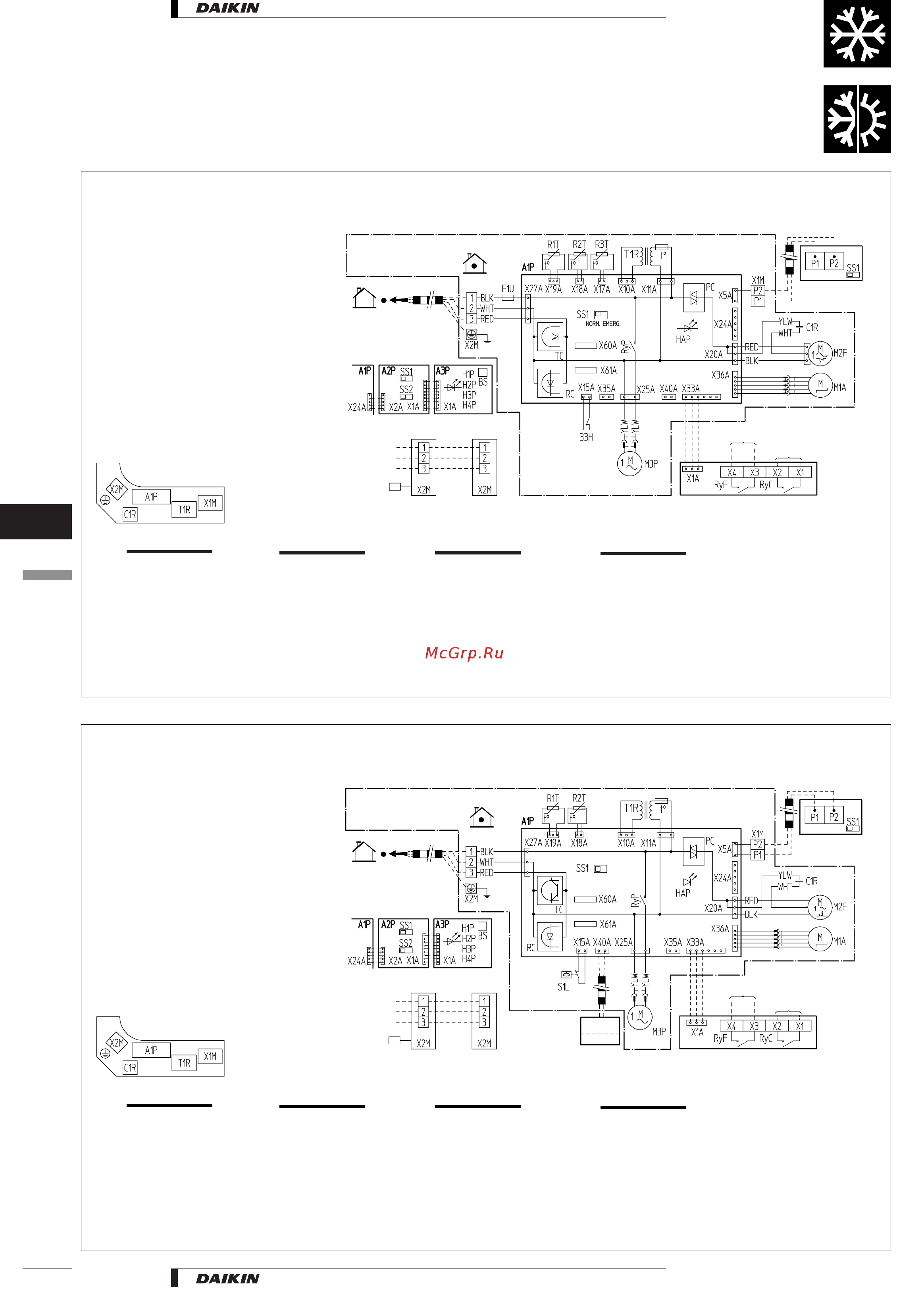

Wiring diagrams
3TW25086-1A
FCQ35-60B7
33H Float switch
A1P Printed circuit board
C1R Capacitor (M2F)
F1U Fuse (5A, 250V)
HAP Light emitting diode (service monitor green)
M1A Motor (swing flap)
M2F Motor (indoor fan)
M3P Motor (drain pump)
Q1F Thermo switch (M2F embedded)
R1T Thermistor (air)
R2T Thermistor (liquid)
R3T Thermistor (coil)
RyP Magnetic relay (M3P)
SS1 Selector switch (emergency)
T1R Transformer (220-240V/22V)
X1M Terminal strip (power)
X2M Terminal strip (control)
PC Phase control circuit
RC Signal receiver circuit
TC Signal transmission circuit
Wired remote control
SS1 Selector switch (main/sub)
Receiver / display unit (attached to infrared remote control)
A2P,A3P Printed circuit board
BS Push button (on/off)
H1P Light emitting diode (on-red)
H2P Light emitting diode (timer-green)
H3P Light emitting diode (filter sign-red)
H4P Light emitting diode (defrost-orange)
SS1 Selector switch (main/sub)
SS2 Selector switch (wireless address set)
Indoor
Outdoor
Wired remote
control
Terminals for operation indicator
Note 3
Receiver / display unit
Adapter for
wiring
Fan operation
compressor operation
Notes
1. Use copper conductors only.
2. When using the central remote control, see manual for
connection to the unit.
3. X24A is connected when the infrared remote control kit
is being used.
4. The infrared remote control model varies according to
the combination system. See technical data and
catalogues before connecting.
g Field wiring D Terminal
F : Connector
h : Wire clamp
b : Protective earth (screw)
Colours
BLK: Black / WHT: White / RED: Red / YLW: Yellow
Adapter for wiring
RyC,RyF Magnetic relay
Connector for optional parts
X60A,X61A Connector (interface adapter for sky air series)
X33A Connector (adapter for wiring)
X35A Connector (group control adapter)
X40A Connector (remote ON/OFF forced OFF)
Switch box
Simultaneous operation system
Remote control
Master
Slave
Outdoor unit
3TW25906-1
FCQ71-125B7
S1H Float switch
A1P Printed circuit board
C1R Capacitor (M2F)
HAP Light emitting diode (service monitor green)
M1A Motor (swing flap)
M2F Motor (indoor fan)
M3P Motor (drain pump)
Q1F Thermo switch (M2F embedded)
R1T Thermistor (air)
R2T Thermistor (liquid)
RyP Magnetic relay (M3P)
SS1 Selector switch (emergency)
T1R Transformer (220-240V/22V)
X1M Terminal strip (power)
X2M Terminal strip (control)
PC Phase control circuit
RC Signal receiver circuit
TC Signal transmission circuit
Wired remote control
SS1 Selector switch (main/sub)
Receiver / display unit (attached to infrared remote control)
A2P,A3P Printed circuit board
BS Push button (on/off)
H1P Light emitting diode (on-red)
H2P Light emitting diode (timer-green)
H3P Light emitting diode (filter sign-red)
H4P Light emitting diode (defrost-orange)
SS1 Selector switch (main/sub)
SS2 Selector switch (wireless address set)
Indoor
Outdoor
Wired remote
control
Terminals for operation indicator
Note 3
Receiver / display unit
Adapter for
wiring
Fan operation
compressor operation
Notes
1. Use copper conductors only.
2. When using the central remote control, see manual for
connection to the unit.
3. X24A is connected when the infrared remote control kit
is being used.
4. The infrared remote control model varies according to
the combination system. See technical data and
catalogues before connecting.
g Field wiring D Terminal
F : Connector
h : Wire clamp
b : Protective earth (screw)
Colours
BLK: Black / WHT: White / RED: Red / YLW: Yellow
Adapter for wiring
RyC,RyF Magnetic relay
Connector for optional parts
X60A,X61A Connector (interface adapter for sky air series)
X33A Connector (adapter for wiring)
X35A Connector (group control adapter)
X40A Connector (remote ON/OFF forced OFF)
Switch box
Simultaneous operation system
Remote control
Master
Slave
Outdoor unit
Emerg. Norm.
•
