Daikin FCQ60B7V1 [5/65] Dimensional drawings
![Daikin FCQ60B7V1 [5/65] Dimensional drawings](/views2/1705570/page5/bg5.png)
3

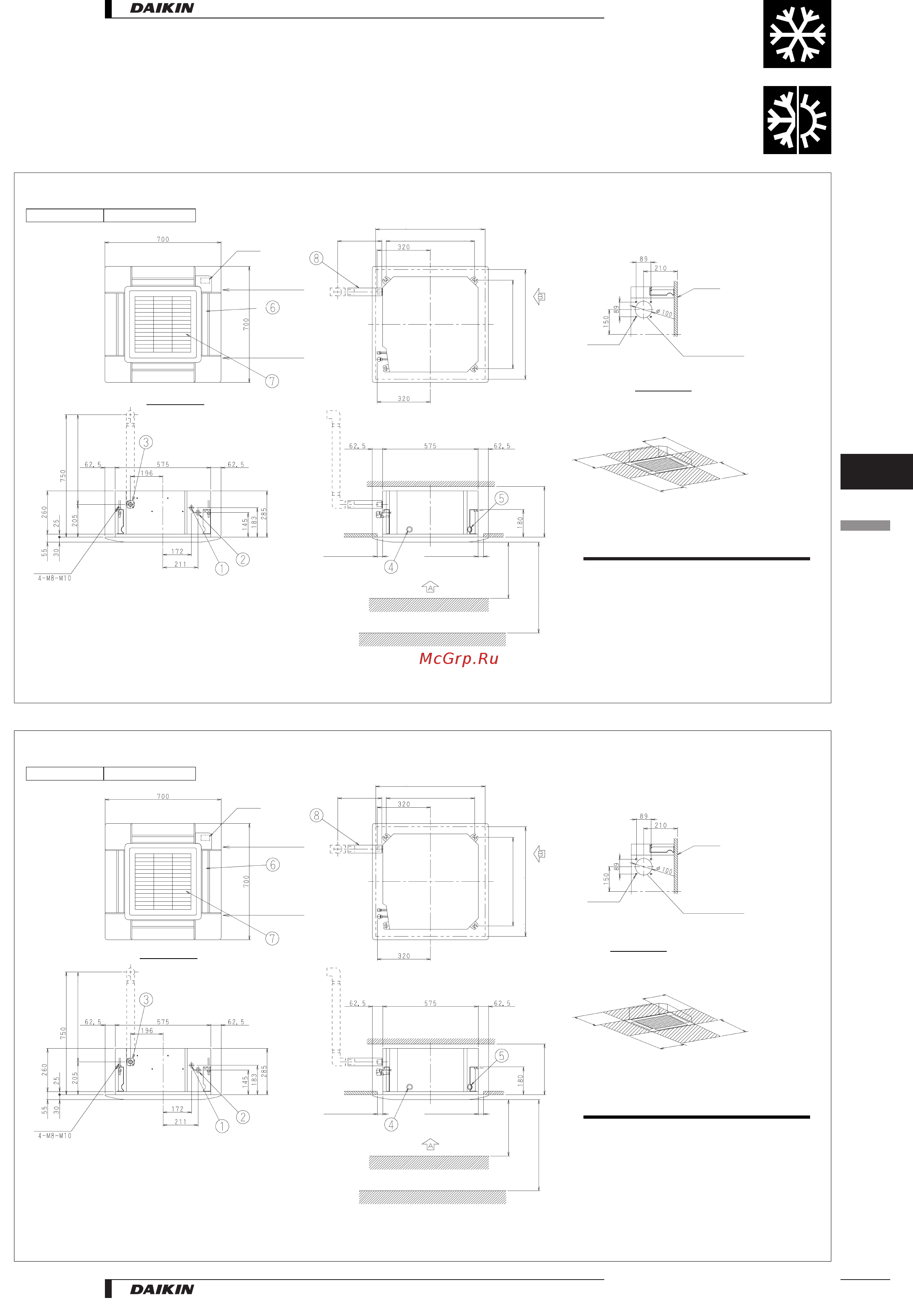

Dimensional drawings
FFQ25-35B
A Arrow view
533 Suspension position
533 (Suspension position)
585∼660 (Ceiling opening)
Note:
1. Sticking location for manufacture’ S label
Manufacture’ s label for indoor unit: on the bell mouth inside suction grille.
Manufacture’ s label for decoration panel: on the inner frame inside suction grille.
2. In case of using infrared remote control, this position will be a signal receiver. Refer to the drawing of
infrared remote control in detail.
3. When the temperature and humidity in the ceiling exceed 30°C and RH 80% or the fresh air is
inducted into the ceiling or the unit continues 24 hour operation, an additional insulation
(thickness 10mm or more glasswool or polyethylene form) is required.
4. Though the installation is acceptable up to maximum of 660mm square ceiling opening, keep
the clearance of 45mm or less between the main unit and the ceiling opening so that the panel
overlap allowance can be ensured.
1 Liquid pipe connection J6.4 Flare connection
2 Gas pipe connectionJ9.5 Flare connection
3 Drain pipe connection VP20 (O.D. J26)
4 Power supply connection
5 Remote control code and control wiring connection
6 Air discharge grille
7 Air suction grille
8 Drain hose I.D.J25
Required installation space
When the discharge grill is closed, the required
space is 200mm or more
585∼660 (Ceiling opening)
Suspension bolt
1500 mm or more
For height installation
4-M4 Hole
Outdoor air intake (direct connection)
1500 mm or more z
1500 mm or more z
Note 2
300 or less
3D039003B
45 or less
B Arrow view
Ceiling
For fresh air intake kit connection (direct installation type)
Pipe connection side
Drain connection
side
BYFQ60BW1 White Ral 9010
1500 mm or more z
1500 mm or more z
From the floor side
2500 or more
45 or less
Note 4
295 or more
Required space
Adjustable 0∼545
FFQ50-60B
A Arrow view
533 Suspension position
533 (Suspension position)
585∼660 (Ceiling opening)
Note:
1. Sticking location for manufacture’ S label
Manufacture’ s label for indoor unit: on the bell mouth inside suction grille.
Manufacture’ s label for decoration panel: on the inner frame inside suction grille.
2. In case of using infrared remote control, this position will be a signal receiver. Refer to the drawing of
infrared remote control in detail.
3. When the temperature and humidity in the ceiling exceed 30°C and RH 80% or the fresh air is
inducted into the ceiling or the unit continues 24 hour operation, an additional insulation (thickness
10mm or more glasswool or polyethylene form) is required.
4. Though the installation is acceptable up to maximum of 660mm square ceiling opening, keep the
clearance of 45mm or less between the main unit and the ceiling opening so that the panel overlap
allowance can be ensured.
1 Liquid pipe connection J6.4 Flare connection
2 Gas pipe connectionJ12.7 Flare connection
3 Drain pipe connection VP20 (O.D. J26)
4 Power supply connection
5 Remote control code and control wiring connection
6 Air discharge grille
7 Air suction grille
8 Drain hose I.D.J25
Required installation space
When the discharge grill is closed, the required
space is 200mm or more
585∼660 (Ceiling opening)
Suspension bolt
1500 mm or more
For height installation
4-M4 Hole
Outdoor air intake (direct connection)
1500 mm or more z
1500 mm or more z
Note 2
300 or less
3D039005B
45 or less
B Arrow view
Ceiling
For fresh air intake kit connection (direct installation type)
Pipe connection side
Drain connection
side
BYFQ60BW1 White Ral 9010
1500 mm or more z
1500 mm or more z
From the floor side
2500 or more
45 or less
Note 4
295 or more
Required space
Adjustable 0∼545
•
4-Way Blow Ceiling Mounted Cassette •
R-410A • FFQ25-60B7V1B
18
3
285
• Split - Sky Air • Indoor Units
