10
Safety device settings
Model Safety devices 25 35 50 60
FFQ-BV1B
Fuse 250V 5A 250V 5A 250V 5A 250V 5A
Fan motor thermal protector (°C)
OFF: 130±5
ON: 83±20
OFF: 130±5
ON: 83±20
OFF: 130±5
ON: 83±20
OFF: 130±5
ON: 83±20
3D006611H
11
Installation

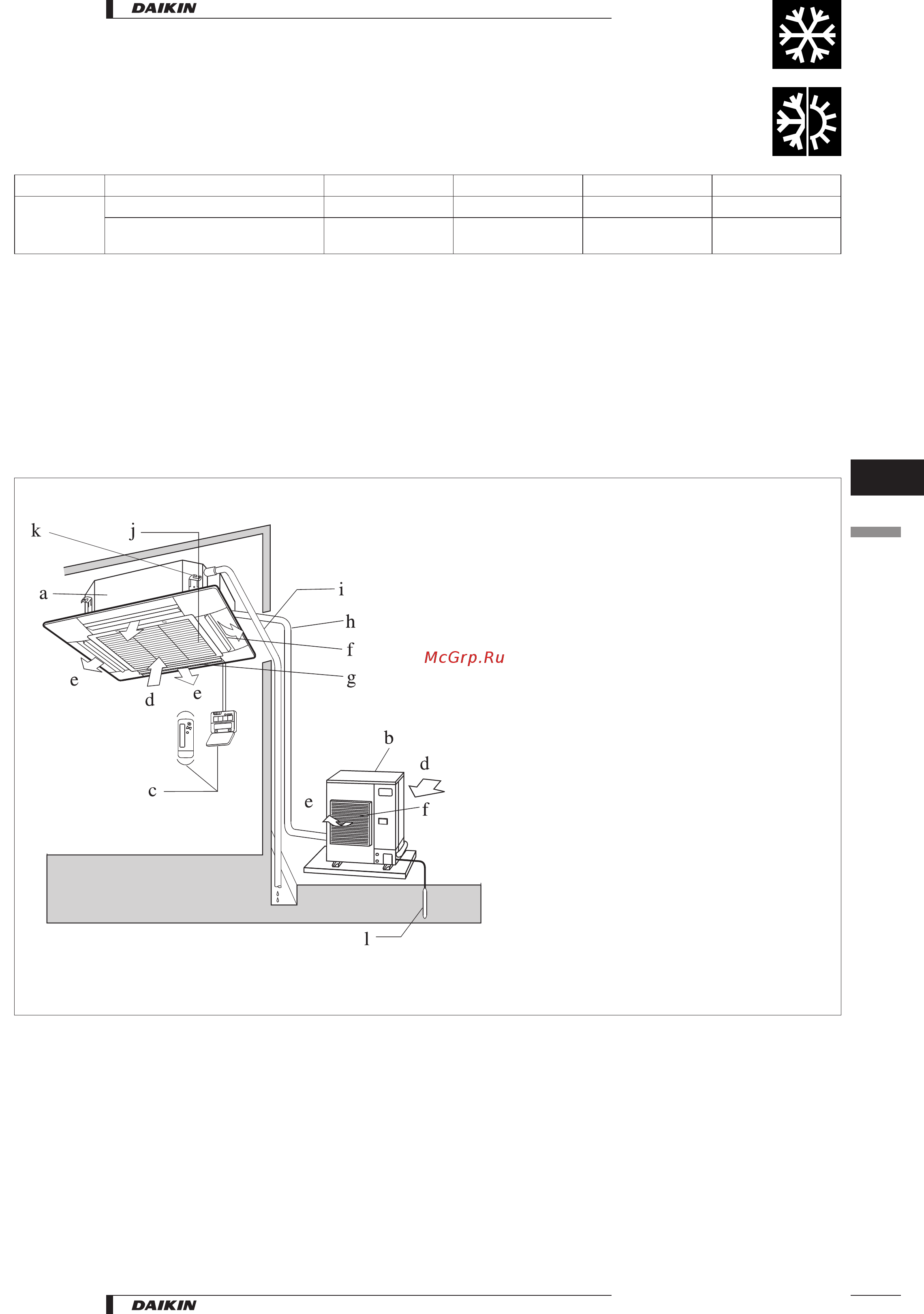

Names and functions of parts
j
a
Indoor unit
j
b
Outdoor unit
The external appearance of the outdoor unit varies
depending on its capacity class.
The outdoor unit shown in the figure is for reference
to indicate features.
Contact your Daikin Dealer and verify which outdoor
unit you have.
j
c
Remote control
j
d
Inlet air
j
e
Discharged air
j
f
Air outlet
j
g
Air flow flap (at air outlet)
j
h
Refrigerant piping, connection electric wire
j
i
Drain pipe
j
j
Air inlet
The built-in air filter removes dust and dirt.
j
k
Drain pumping out device (built-in)
Drains water removed from the room during cooling
j
l
Ground wire
Wire to ground from the outdoor unit to prevent
electrical shocks.
FFQ-B
•
4-Way Blow Ceiling Mounted Cassette •
R-410A • FFQ25-60B7V1B
18
10
301
• Split - Sky Air • Indoor Units
