Page 3 of 3

Speciﬁcations can be changed without notice! Make sure you are using the latest documentation, downloadable at www.tracopower.com

www.tracopower.com

Rev. March 22. 2016

General Specifications

Electromagnetic compatibility (EMC), immunity

– Surge immunity line – ground EN 61000-4-5 2 kV, class B+A

– Surge immunity line – line EN 61000-4-5 1 kV, class B+A

– Surge immunity output EN 61000-4-5 0.5 kV

– Immunity to conducted RF disturbances EN 61000-4-6 10 V, class A

– Mains voltage dips and interruptions EN 61000-4-11 30 % /10 mS, class B

60 % /100 mS, class B

Casing material plastic (UL 94V-0 rated)

Casing protection IP 67

Reliability, calculated MTBF according to IEC 61709 www.tracopower.com/overview/tiw

Humidity (non condensing) 5 – 95 % rel. H max.

Environment – Vibration acc. IEC 60068--2-6 Part 2, test Fe: Vibration (sinusoidal)

– Shock acc. IEC 60068-2-27 Part 2, test Ea: Shock

Connection wires – Input 2 x 570 mm +30/-0 (black/white) AWG 18

– Output 2 x 200 mm +20/-0 (red/black) AWG 20

Environmental compliance – Reach www.tracopower.com/overview/tiw

– RoHS RoHS directive 2011/65/EU

Weight – 24 Watt models: 100 g (3.8 oz)

– other models: 80 g (2.7 oz)

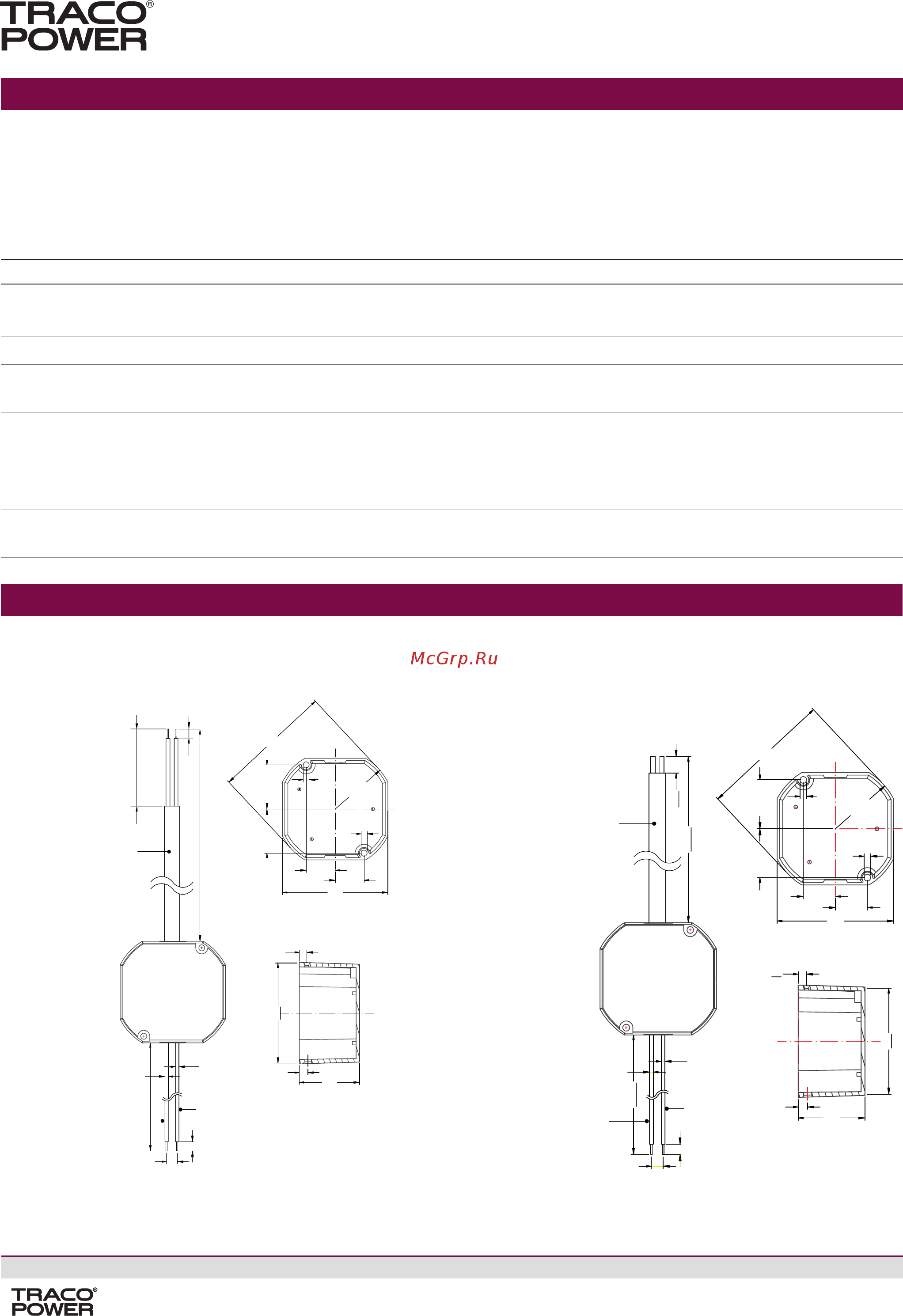

Outline Dimensions

AC/DC Power Supplies

TIW Series 4 – 24 Watt

0.52mm²/20AWG

(RED)

at 2-core cable 0.82mm²/18AWG.

ter insulation 3.5mm x 7.0mm typ.

0.52mm²/20AWG

(BLACK)

5.7

Ø8.1

5.0±2

Input

Output

Top Side

Side View

Bottm View

Tolerances: ±0.2mm

8mm

48.0

4.0

23.6

3.2

20.5

12.5

3.2

50.2

570mm (+30/-0)

200mm

40mm

(+20/-0)

0.52mm²/20AWG

(RED)

at 2-core cable

0.82mm²/18AWG.

ter insulation 3.5mm x 7.0mm typ.

0.52mm²/20AWG

(BLACK)

5.7

Ø8.1

5.0±2

Input

Output

Top Side

Side View

Bottm View

Tolerances: ±0.2mm

8mm

52.0

4.5

32.0

3.2

23.5

15.4

3.2

56.0

600mm

200mm

TIW 6 & 12 Watt models: TIW 24 Watt model:
