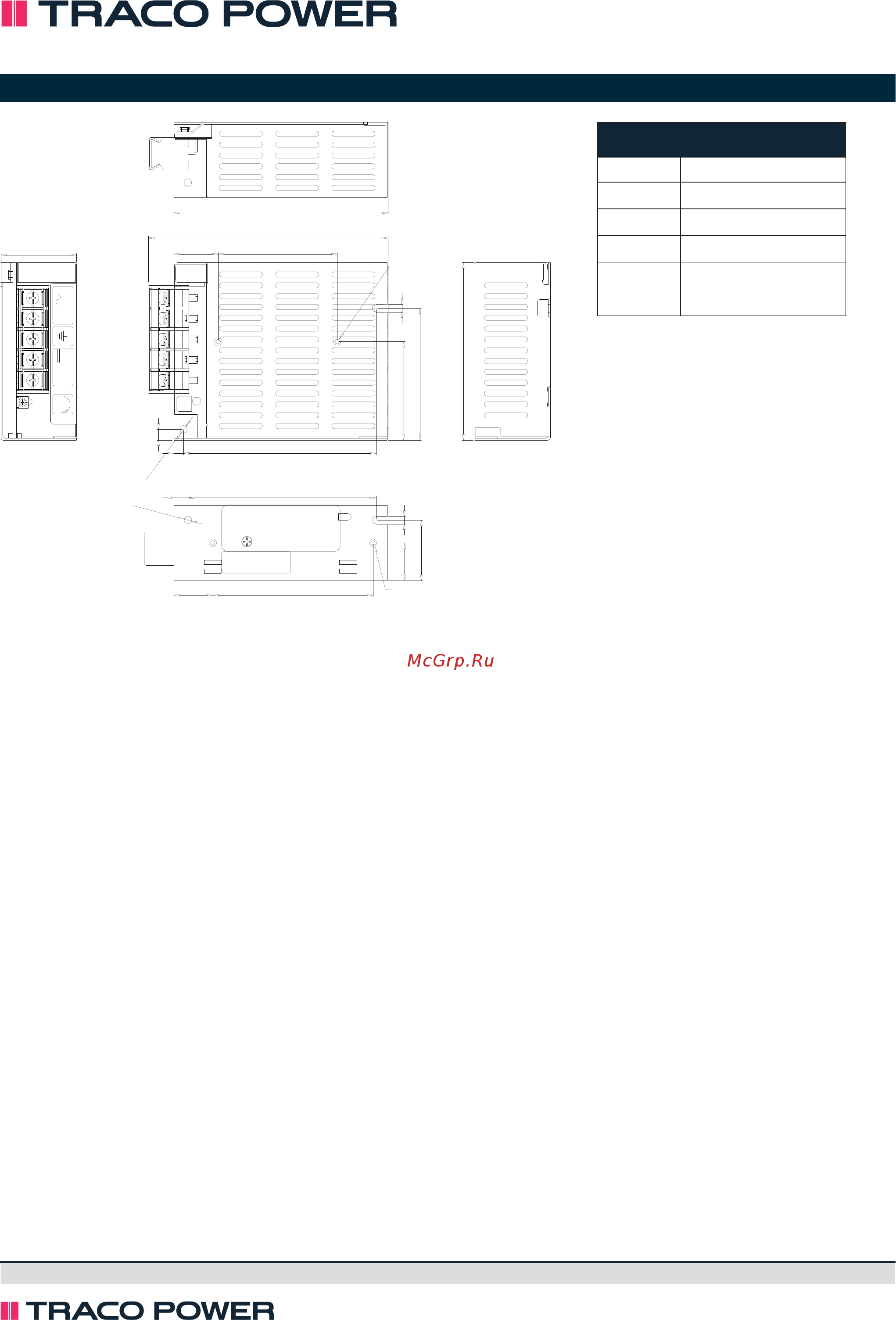

Outline Dimensions
TXLN 060 Series, 60 Watt
110.8
LED
VR1
1
2
3
4
5
18 74
2-M3
17.5
28
3.5
6.5 87
Ø
3.
5
4.5 89
Ø
3.5
45.5
5
61
3.5
20.5 55
2-M3
(BOTTOM)
99
35
82
-V +VNL
IN
ADJ
V
OUT
Dimensions in mm
Tolerances:
0 – 8: ±0.2
8 – 25: ±0.3
25 – 80: ±0.5
80 – 250: ±0.8
Screw Terminal
Pin Function
1
AC (L)
2
AC (N)
3
PE
4
–Vout
5
+Vout
© Copyright 2020 Traco Electronic AG Specifications can be changed without notice.
www.tracopower.com
Rev. February 3, 2021
Page 4 / 4
