ADJUSTMENTS

Always disconnect the appliance from the

electricity main before making any adjustments.

All seals must be replaced by the technician at

the end of any adjustments or regulations.

Our burners do not require primary air

adjustment.

9) TAPS

“Reduced rate” adjustment

- Switch on the burner and turn the relative knob to

the “Reduced rate” position (small flame fig. 1).

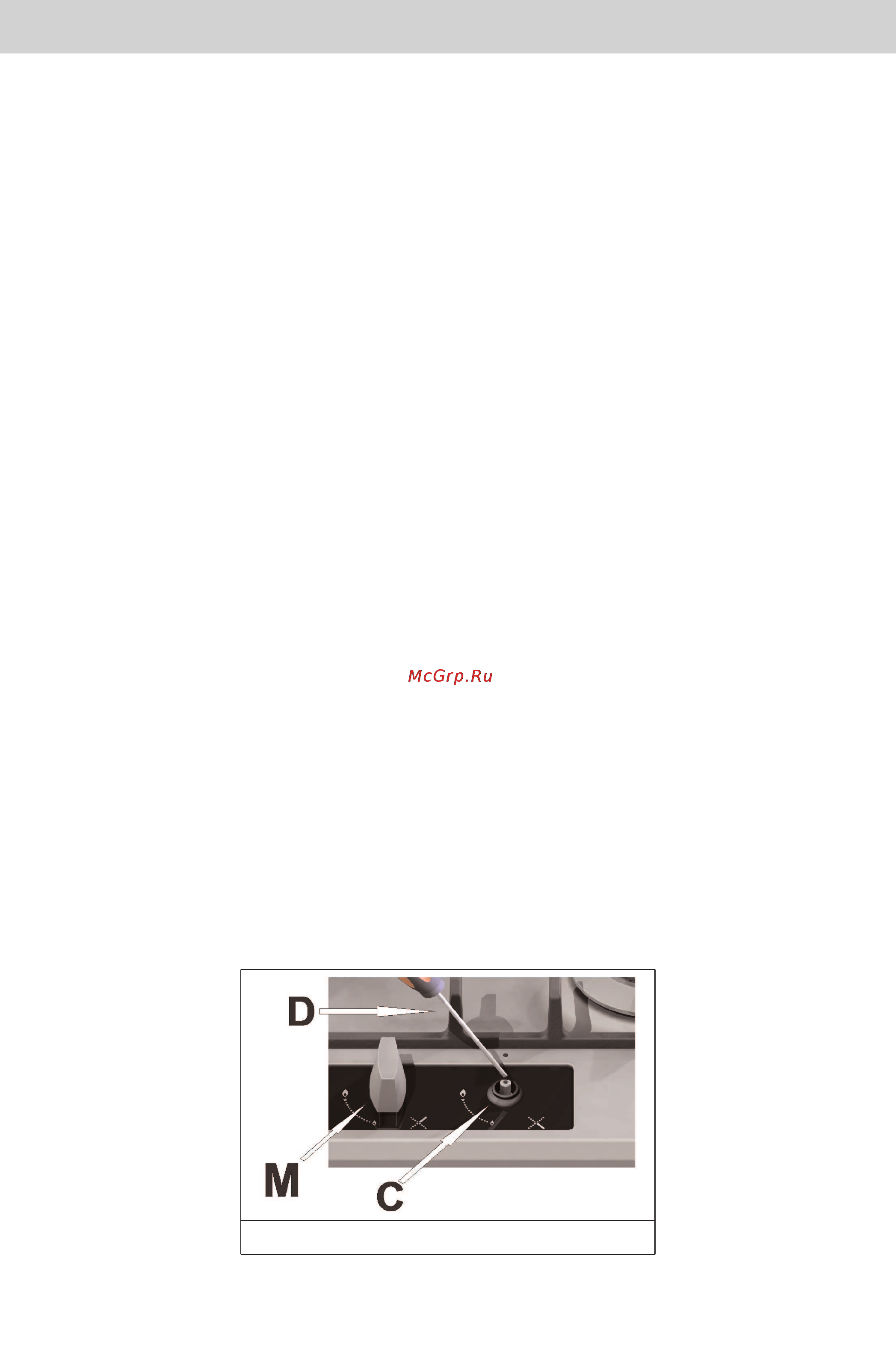

- Remove knob (fig. 12) of the tap, which is simply

pressed on to its rod.

- Insert a small screwdriver “D” into hole “C” (fig. 12)

and turn the throttle screw to the right or left until

the burner flame has been adequately regulated to

the “Reduced rate” position.

Check that the flame does not go out when the

knob is sharply switched from the “Full on” to the

“Reduced rate” position.

It is understood that only burners operating

with G20 gas should be subjected to the above

mentioned adjustments. The screw must be

fully locked when the burners operate with G30

gas (turn clockwise).

FIG. 12
