2.4 Install System Memory

DDR4 Modules

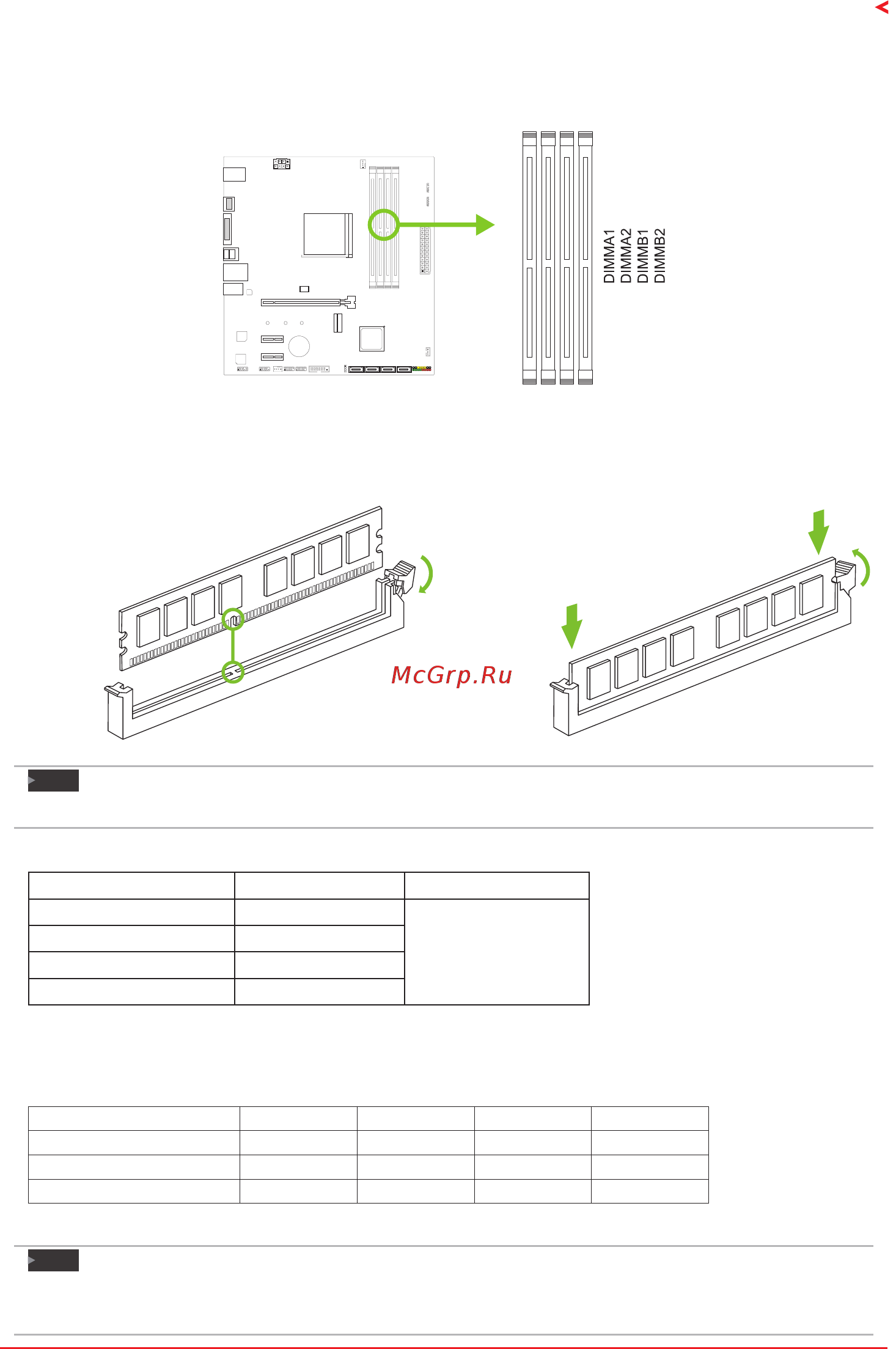

Step 1: Unlock a DIMM slot by pressing the

retaining clips outward. Align a DIMM on the

slot such that the notch on the DIMM matches

the break on the slot.

Step 2: Insert the DIMM vercally and

rmly into the slot unl the retaining clips

snap back in place and the DIMM is properly

seated.

Note

 IftheDIMMdoesnotgoinsmoothly,donotforceit.Pullitallthewayoutandtryagain.

Memory Capacity

DIMM Socket Locaon DDR4 Module Total Memory Size

DIMMA1 8GB/16GB/32GB

Max is 128GB.

DIMMA2 8GB/16GB/32GB

DIMMB1 8GB/16GB/32GB

DIMMB2 8GB/16GB/32GB

Dual Channel Memory Installaon

Please refer to the following requirements to acvate Dual Channel funcon:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DIMMA1 DIMMA2 DIMMB1 DIMMB2

Enabled O X O X

Enabled X O X O

Enabled O O O O

(O means memory installed, X means memory not installed.)

Note

 Wheninstallingmorethanonememorymodule,werecommendtousethesamebrandand

capacitymemoryonthismotherboard.
