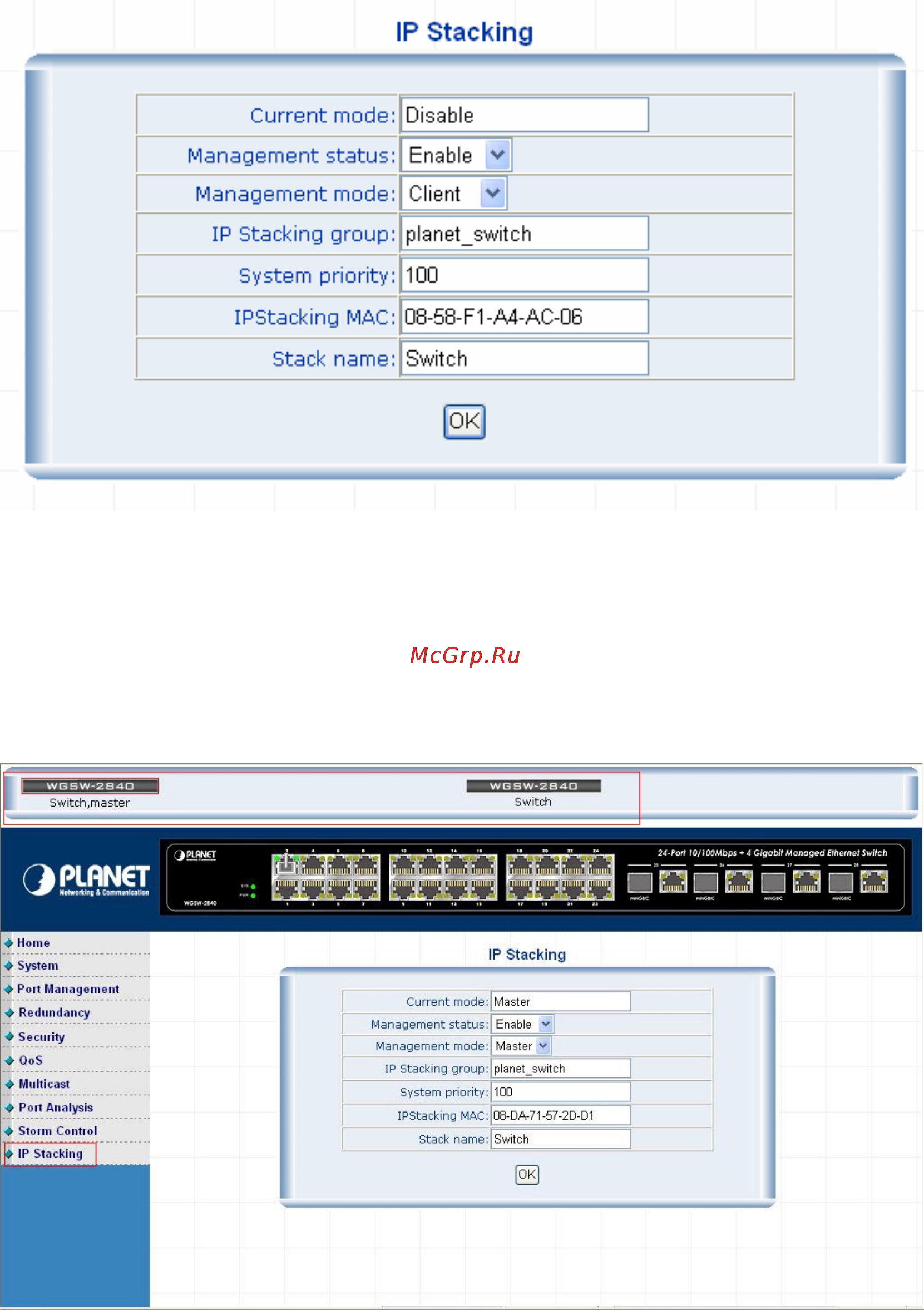

8. Enter a string in the “IP Stacking Group” field; the default string of the WGSW-2840/5240 is “planet_switch”.
This string must be the same with the Master switch that to be assigned to the same IP Stack group.
9. Modify the “System priority” and “Stack name” if necessary. At this sample we change the Stack name of
the Client to “Switch-2”
10. Click “OK” if the configuration is down.
11. Please use a UTP cable to uplink together through its Ethernet interface
12. Back to login the WEB main screen of Master switch- then you can see two WGSW-2840 stacks together
from its web interface. The following screen appears.
13. After setup complete, please go to system and choose “Saving parameters” to save current configuration.
The following screen appears.
