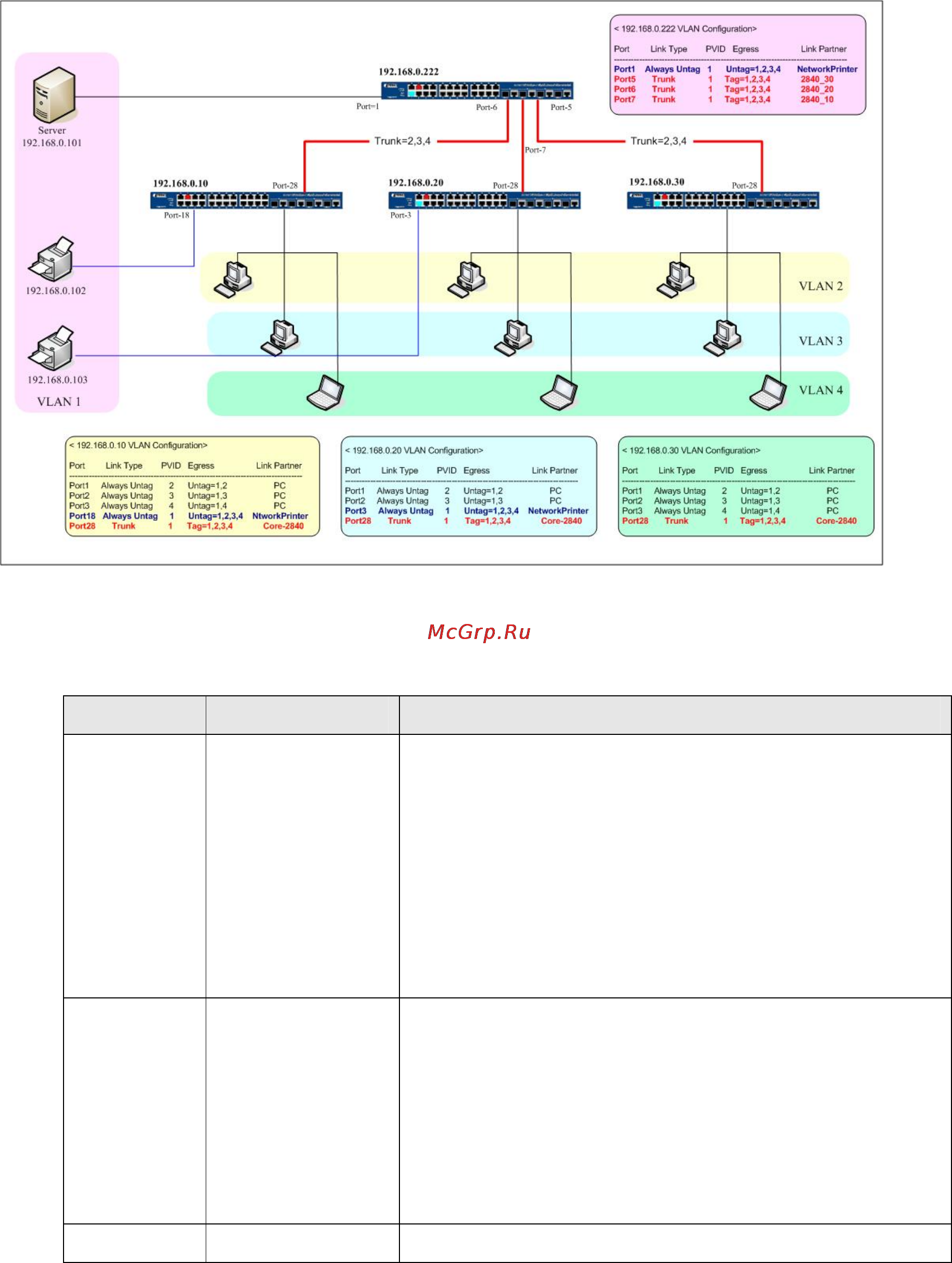

802.1Q VLAN Multi-Untagged VLAN setting sample 3
VLAN Group Membership
VLAN ID VLAN Define Major Member
VLAN 1 Public VLAN WSW-2401A_220
WSW-2401A_10
WSW-2401A_20
WSW-2401A_30
Server
Network_Printer_1
Network_Printer_2
VLAN 2 Client connect to Ports those be assigned to VLAN 2 ,at
[192.168.0.10] switch
Client connect to Ports those be assigned to VLAN 2 ,at
[192.168.0.20] switch
Client connect to Ports those be assigned to VLAN 2 ,at
[192.168.0.30] switch
VLAN 3 Client connect to Ports those be assigned to VLAN 3 ,at
