Hi-Fi B85N 3D/ Hi-Fi H81N 3D
11

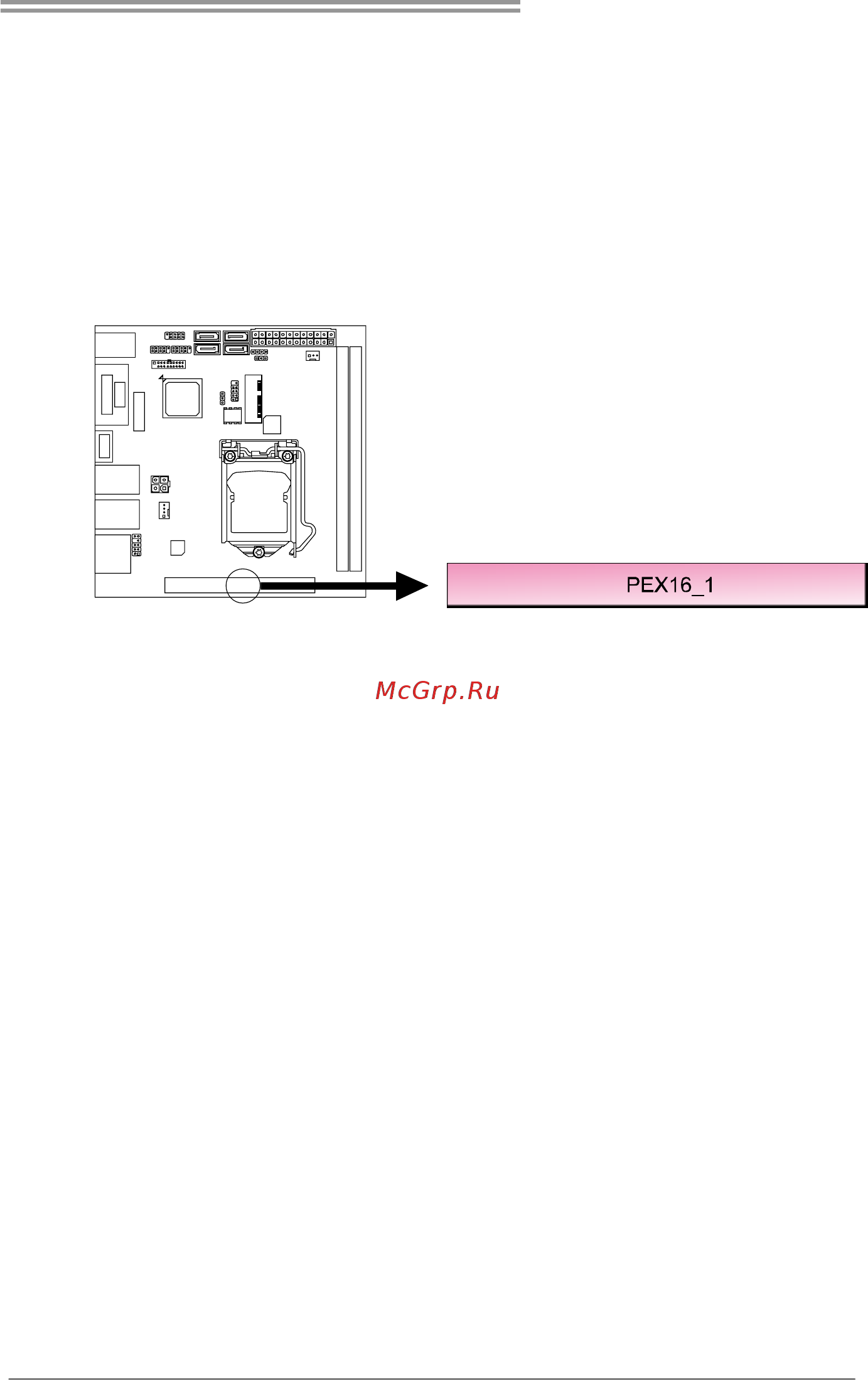

PEX16_1: PCI-Express Gen3 x16 Slot (Hi-Fi B85N 3D)
- PCI-Express 3.0 compliant.
- Maximum theoretical realized bandwidth of 16GB/s simultaneously per
direction, for an aggregate of 32GB/s totally.
PEX16_1: PCI-Express Gen2 x16 Slot (Hi-Fi H81N 3D)
- PCI-Express 2.0 compliant.
- Maximum theoretical realized bandwidth of 8GB/s simultaneously per
direction, for an aggregate of 16GB/s totally.
