Hi-Fi B85Z & Hi-Fi H81Z

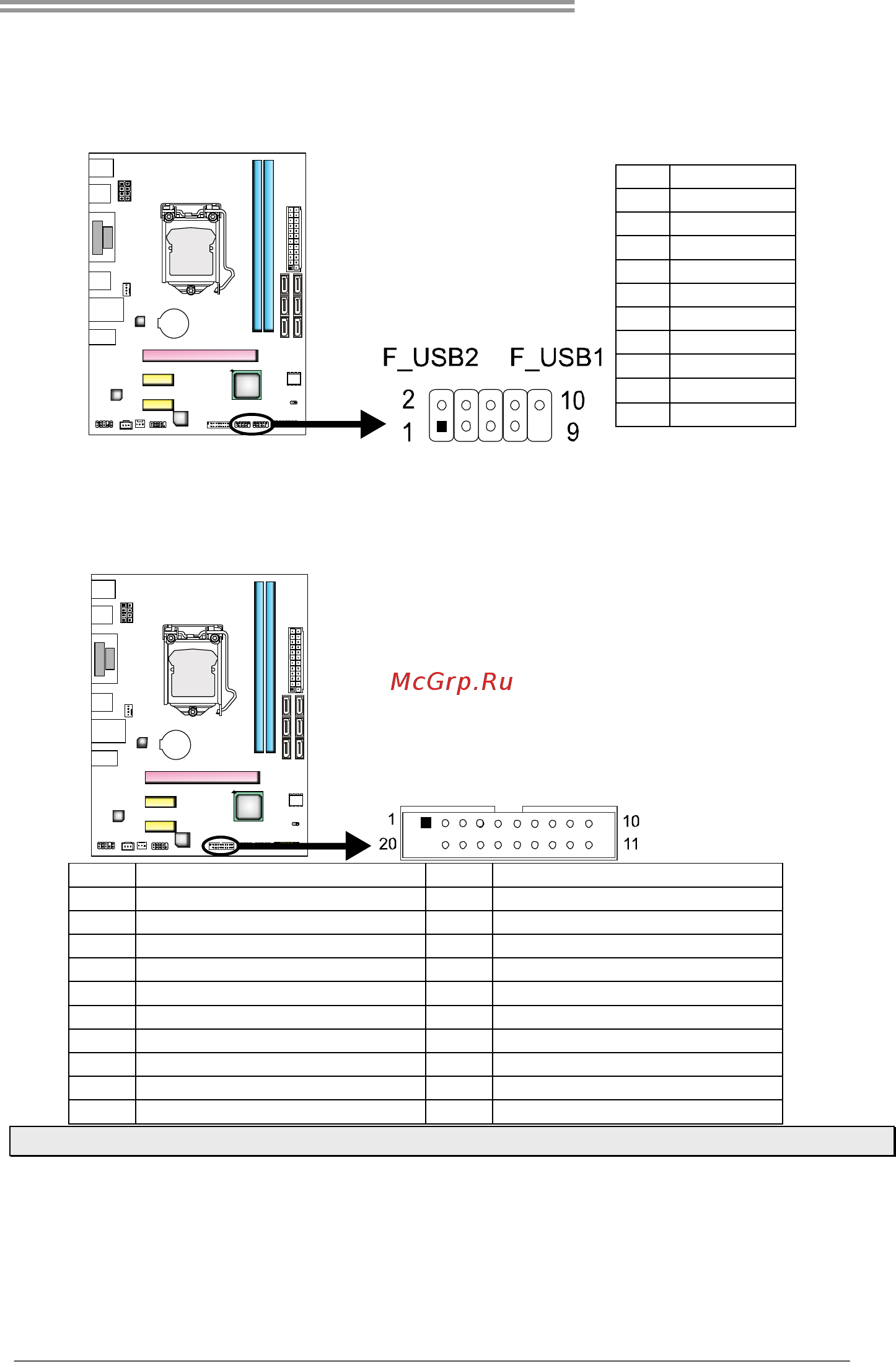

F_USB1/2: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and

also can be connected with a wide range of external peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 NC

10 Key

JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and

also can be connected with a wide range of external peripherals.

Pin Assignment Pin Assignment

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 Ground

4 Ground 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 Ground

7 Ground 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key

Note: JFRONT_USB3_1 is only for Hi-Fi B85Z.
