Motherboard Manual
4

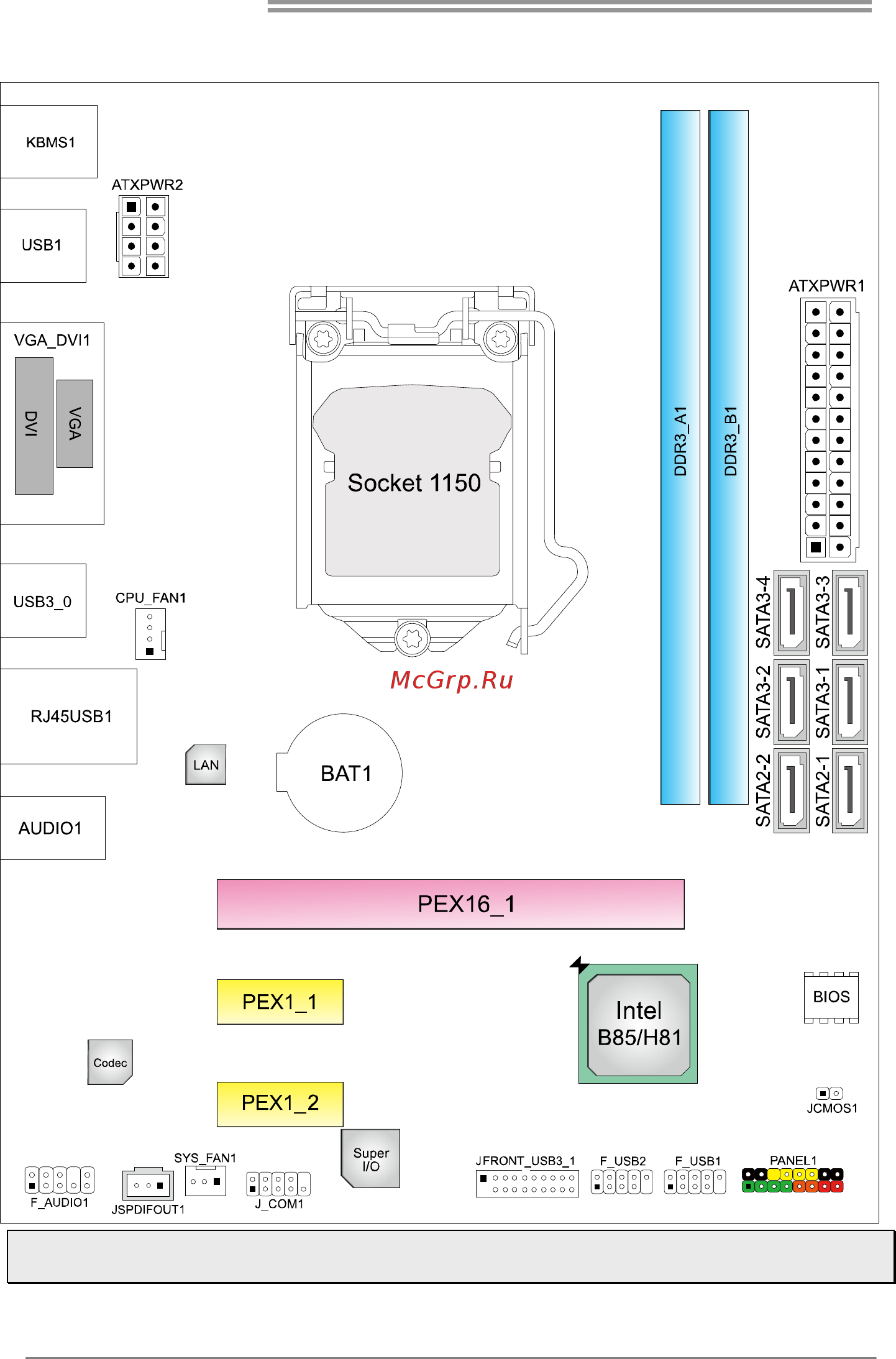

1.5 Motherboard Layout
Note1: ■ represents the 1
st
pin.
Note2: JFRONT_USB3_1 and SATA3-3/3-4 connectors are only for Hi-Fi B85Z.
