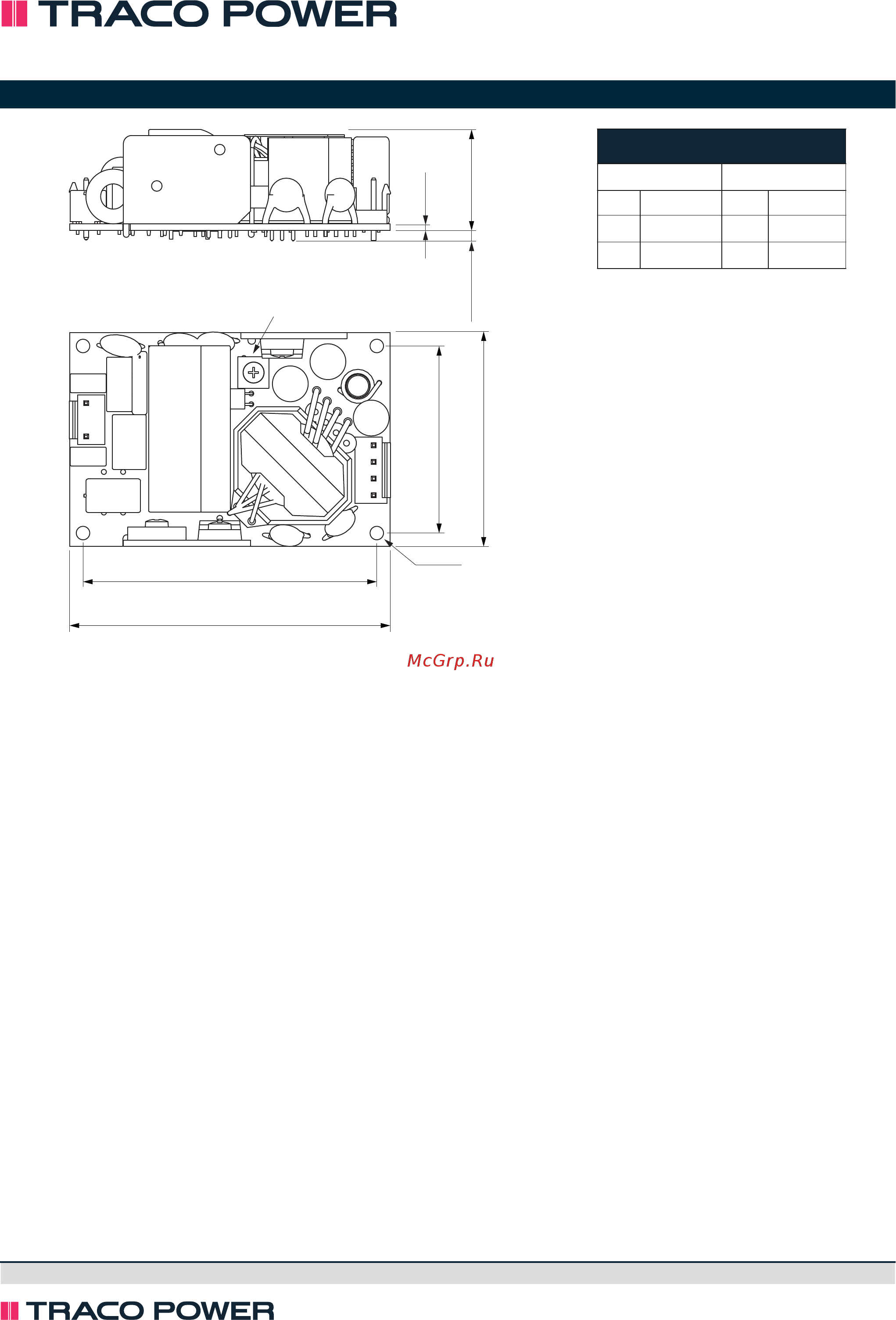

Outline Dimensions

TPI 65A-J Series, 65 Watt

Voltage Adj.

CON2

CON1

44.45

(1.75)

50.8

(2.00)

2.5 max.

(0.10 max.)

1.6

(0.06)

Ø3.2

(Ø0.13)

24.0 max.

(0.94 max.)

76.2

(3.00)

69.8

(2.748)

Each one of the 4 screw holes can be used

as a PE connection for CLASS I application.

Dimensions in mm (inch)

Tolerances: x.x ±0.5 (x.xx ±0.02)

Tolerances: x.xx±0.25 (x.xxx ±0.01)

Screw lock torque: Max. 0.49 Nm (5 kgfcm)

Pin connectors

Input (CON1) Output (CON2)

Pin Function Pin Function

Line

1,2*

–Vout

Neutral

3,4*

+Vout

Input: JST series

mates with JST crimp terminal: SVH-21T-P1.1

and terminal housing: VHR-3N

Output: JST series

mates with JST crimp terminal: SVH-21T-P1.1

and terminal housing: VHR-4N

*Terminal rated for 10 A max per pin.

(at higher current connection has to be split)

www.tracopower.com

Rev. July 31, 2020

Page 4 / 4
