Environmental Compliance
- Reach
www.tracopower.com/info/reach-declaration.pdf
- RoHS
www.tracopower.com/info/rohs-declaration.pdf
Supporting Documents
Overview Link (for additional Documents)
www.tracopower.com/overview/tpp100

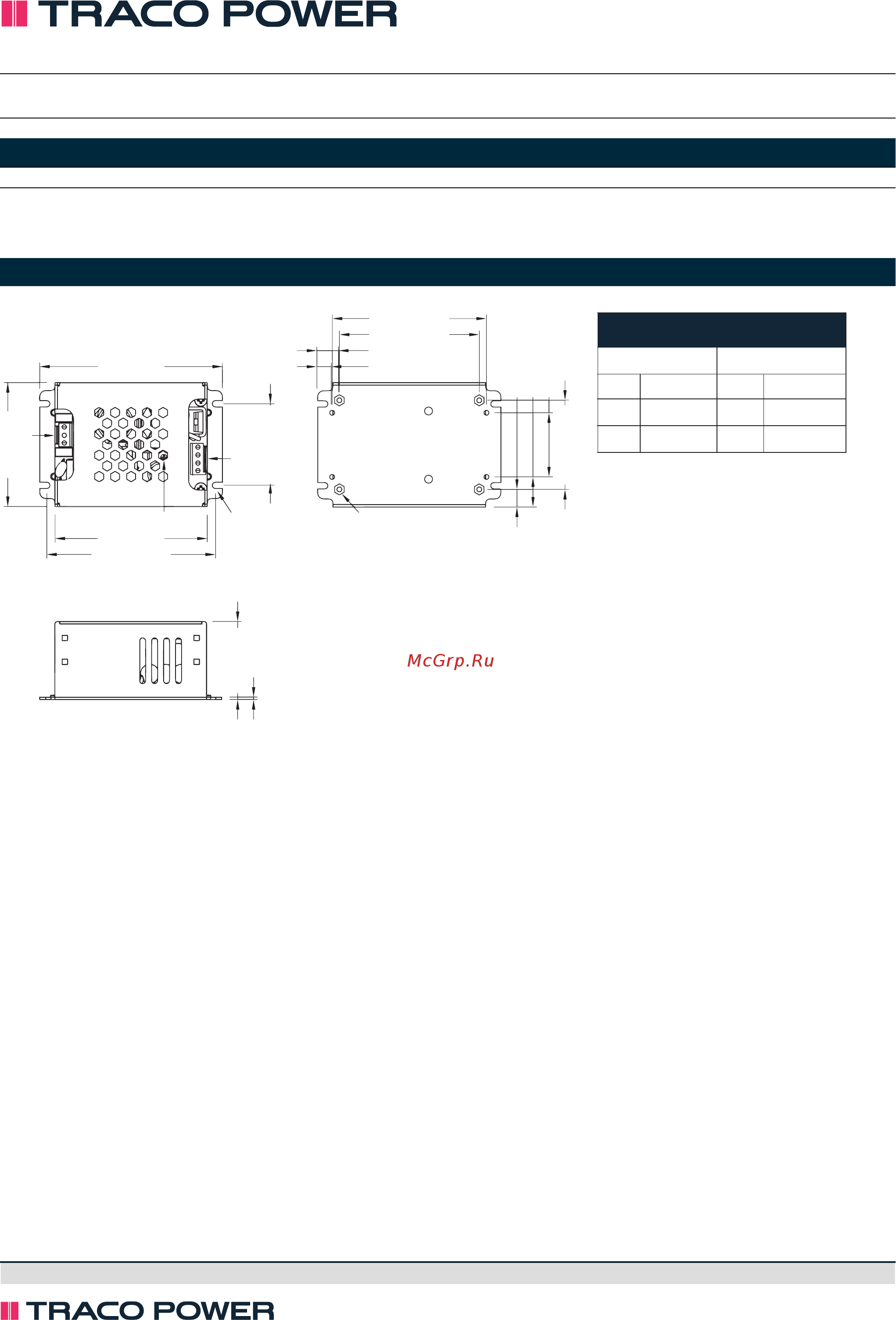

Outline Dimensions
TPP 100 Series, 100 Watt
91.4 (3.60)
84.44 (3.324)
76.2 (3.00)
Voltage adjustment
M3x0.5 holes
CON1
62.0 (2.44)
CON2
40.82 (1.607)
1
3
4
1
39.2 (1.54)
1.2 (0.05)
M3 screws
76.99 (3.031)
69.80 (2.748)
10.8 (0.43)
7.2 (0.28)
8.8 (0.35)
15.0 (0.59)
32.00 (1.260)
44.45 (1.750)
Dimension in mm, () = inch
Tolerances: x.x ±0.50 (±0.02)
x.xx ±0.25 (±0.01)
Each one of the 4 screw holes can be used
as a PE connection for CLASS I application.
Screw Terminal
Input (CON1) Output (CON2)
Pin Function Pin Function
1
Line
1,2
–Vout
3
Neutral
3,4
+Vout
CON1: Terminal Block
mates with Screw locked torque MAX 2Kgf.cm/0.2N.m
Wire dimension range: 26 - 16 AWG
CON2: Terminal Block
mates with Screw locked torque MAX 2Kgf.cm/0.2N.m
Wire dimension range: 26 - 16 AWG
© Copyright 2019 Traco Electronic AG Specifications can be changed without notice.
www.tracopower.com
Rev. January 9, 2020
Page 4 / 4
