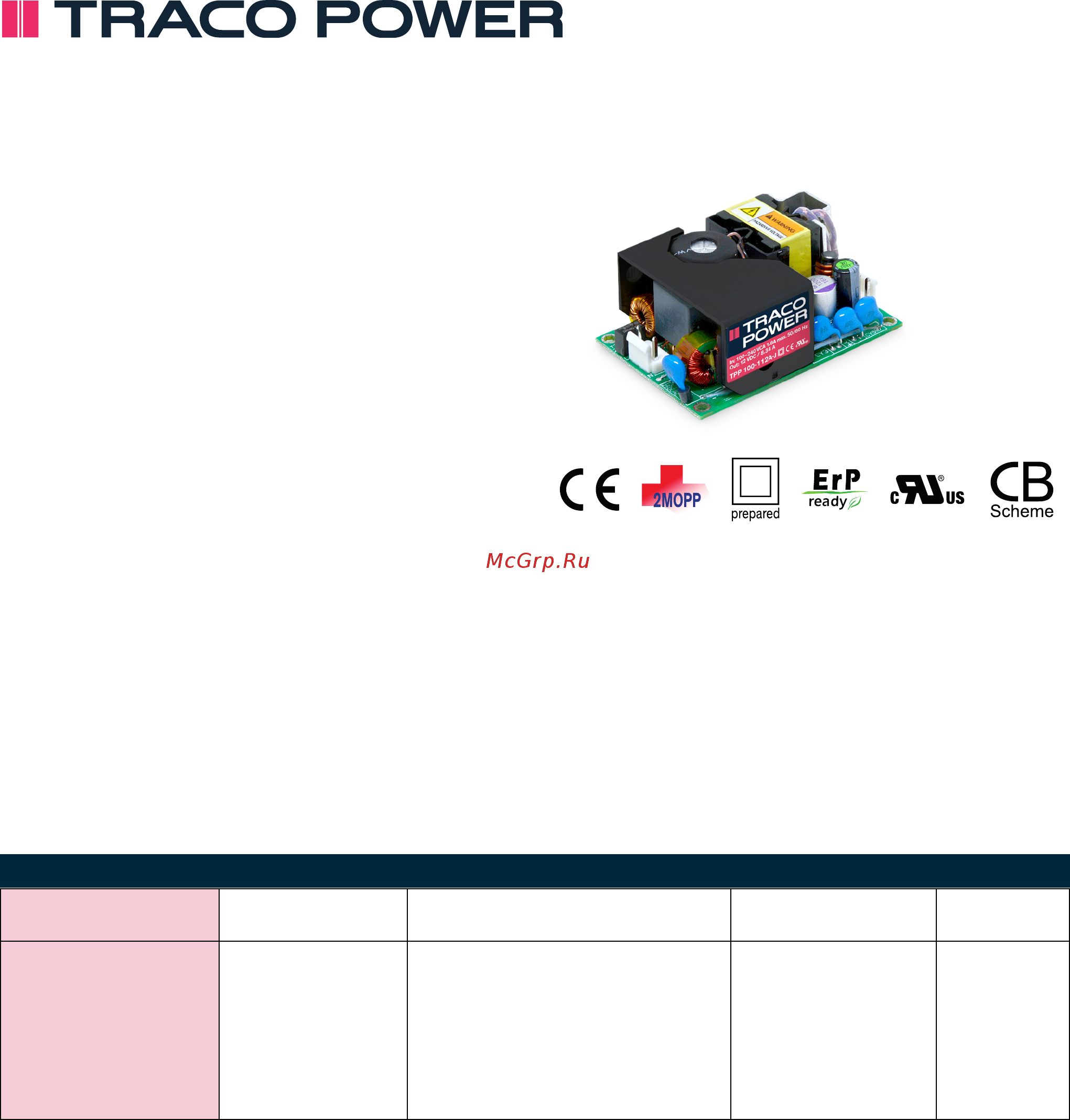

TRACO POWER TPP 100-112A-J Datasheet онлайн
AC/DC Medical Power Supply
TPP 100A-J Series, 100 Watt
•
Open frame 100 W power supply with
JST connection in 2.0” x 3.0” package
•
Certification according to IEC/EN/ES
60601-1 3rd edition for 2 x MOPP
•
Low leakage current <75 µA rated for
BF applications
•
Risk management process according to
ISO 14971 incl. risk management file
•
Acceptance criteria for electronic
assemblies acc. to IPC-A-610 Level 3
•
Active power factor correction >0.95
•
Protection class l and ll prepared
•
Operating up to 5000 m altitude
•
Ready to meet ErP directive, <0.3 W no
load power consumption
•
5-year product warranty
IEC 60601-1
IEC 60950-1
ES 60601-1
UL 60950-1
The TPP 100A-J series of 100 Watt AC/DC open frame power supplies feature
a reinforced double I/O isolation system according to latest medical safety
standards (60601-1 3rd edition, 2 x MOPP). The earth leakage current is below
75 µA which makes the units suitable for BF (body floating) applications. The
excellent efficiency of up to 92% allows a high power density for the standard
2.0” x 3.0” packaging format. The full load operating temperature range is
–25°C to +55°C while it goes up to 80°C with 50% load derating. The EMC
characteristic is dedicated for applications in industrial and medical fields. High
reliability is provided by the use of industrial quality grade components and an
excellent thermal management. It makes the products an ideal solution for
medical devices and for demanding safety and space critical applications.
Models
Order Code
Output Power
max.
Output Voltage
nom. (adjustable)
Output Current
max.
Efficiency
typ.
TPP 100-112A-J
100 W
12 VDC (10.8 - 13.2 VDC)
8'340 mA
91 %
TPP 100-115A-J
15 VDC (13.5 - 16.5 VDC)
6'670 mA
92 %
TPP 100-124A-J
24 VDC (21.6 - 26.4 VDC)
4'170 mA
92 %
TPP 100-128A-J
28 VDC (25.2 - 30.8 VDC)
3'580 mA
92 %
TPP 100-136A-J
36 VDC (32.4 - 39.6 VDC)
2'780 mA
91 %
TPP 100-148A-J
48 VDC (43.2 - 52.8 VDC)
2'090 mA
91 %
www.tracopower.com
June 4, 2019
Page 1 / 4
