Environmental Compliance
- Reach
www.tracopower.com/info/reach-declaration.pdf
- RoHS
www.tracopower.com/info/rohs-declaration.pdf
Supporting Documents
Overview Link (for additional Documents)
www.tracopower.com/overview/tpp100a-j

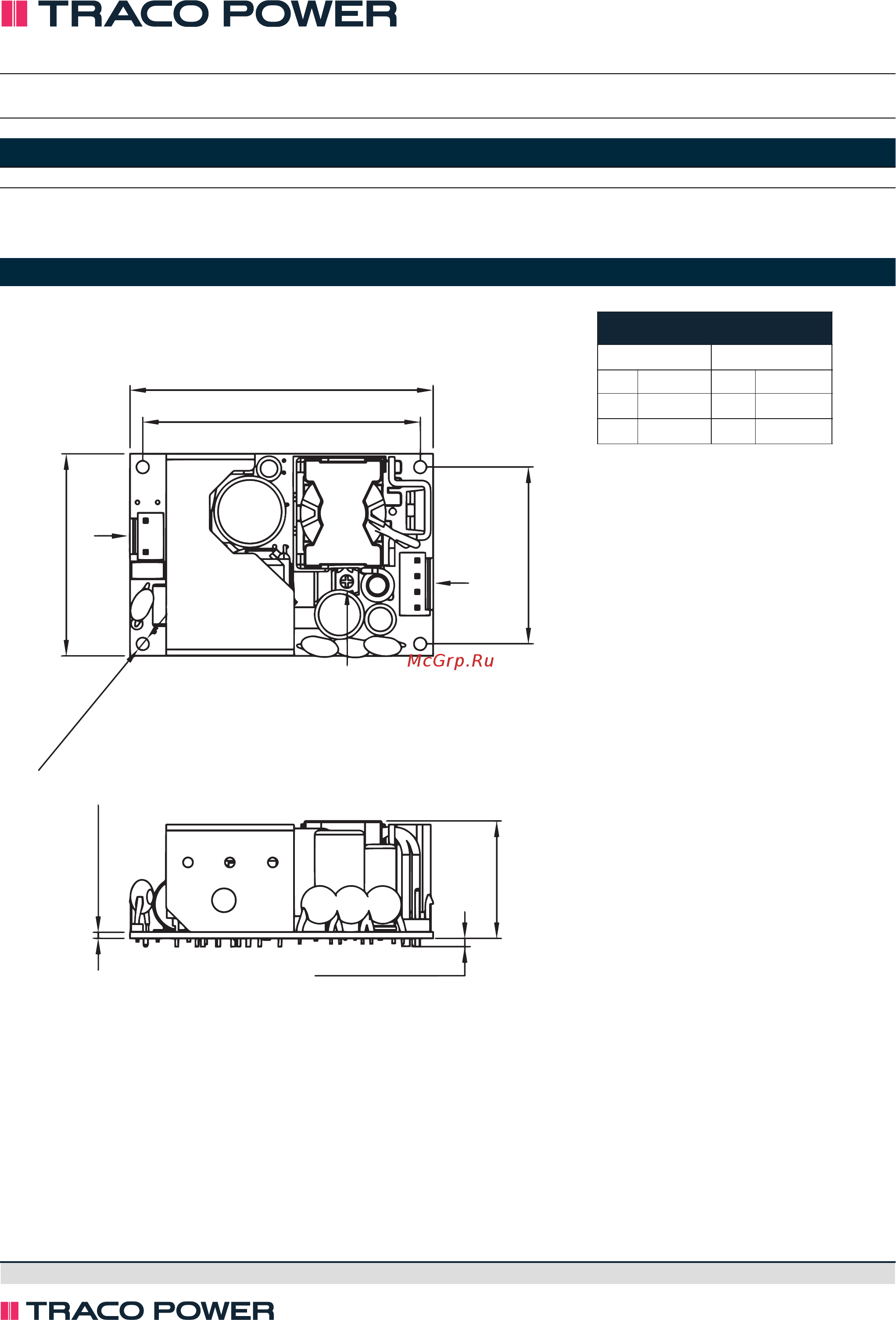

Outline Dimensions
TPP 100A-J Series, 100 Watt
Dimension in mm, () = inch
Tolerances: x.x ±0.50 (±0.02)
x.xx ±0.25 (±0.01)
Each one of the 4 screw holes can be used
as a PE connection for CLASS I application.
76.2 (3.00)
69.8 (2.748)
44.45 (1.750)
CON2
4
1
CON1
1
3
50.8 (2.00)
Voltage adjustment
TOP VIEW
Ø 3.2 (0.13)
1.6 (0.06)
29.5 (1.16)
2.5 (0.10) max.
FRONT VIEW
Pin connectors
Input (CON1) Output (CON2)
Pin Function Pin* Function
1
Line
1,2
–Vout
3
Neutral
3,4
+Vout
*Terminal rated for 7 A max.
(at higher current connection has to be split)
CON1: JST series
mates with JST crimp terminal: SVH-21T-P1.1
and terminal housing: VHR-3N
CON2: JST series
mates with JST crimp terminal: SVH-21T-P1.1
and terminal housing: VHR-4N
© Copyright 2019 Traco Electronic AG Specifications can be changed without notice.
www.tracopower.com
Rev. June 4, 2019
Page 4 / 4
