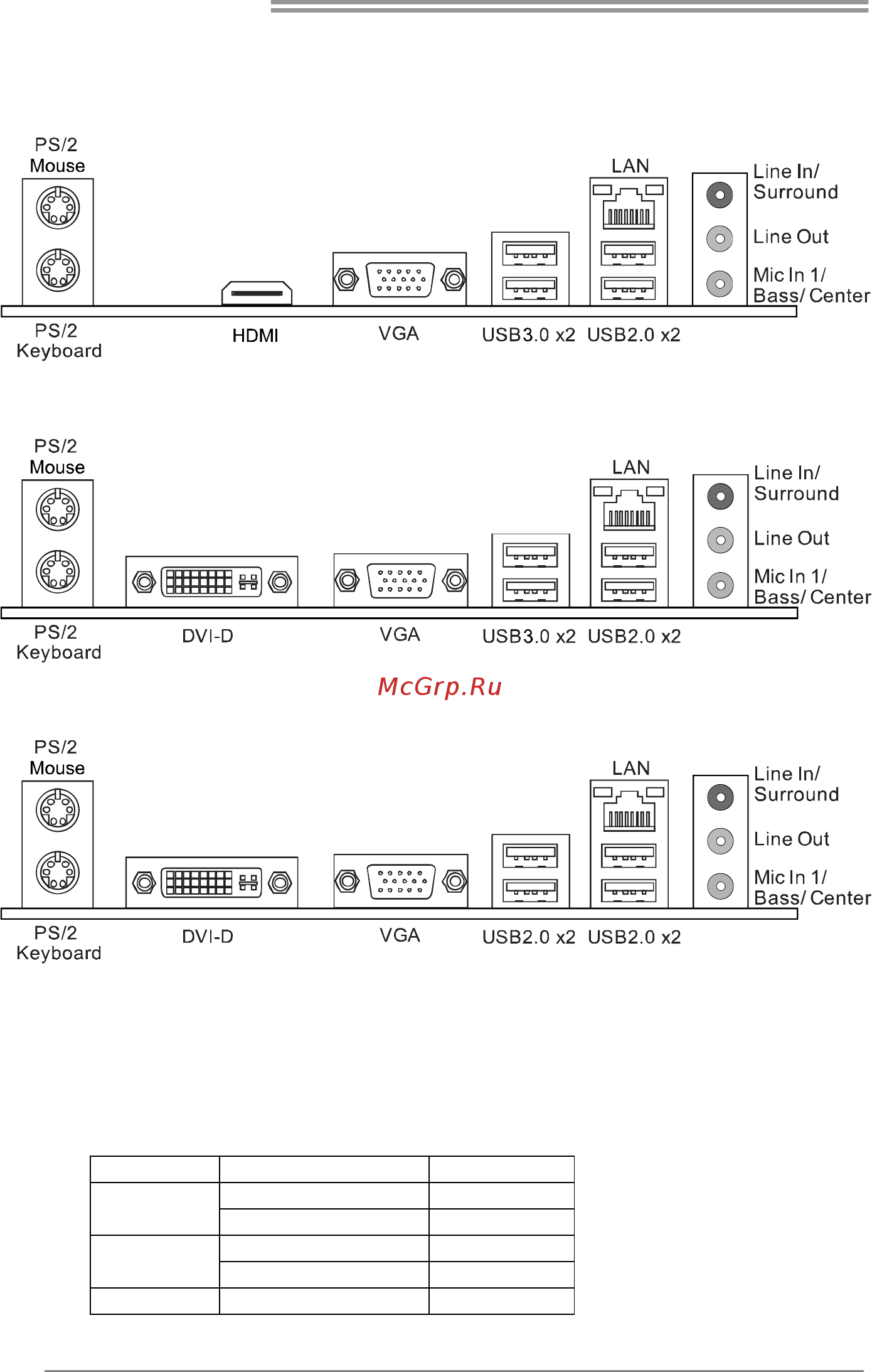

1.4 Rear Panel Connectors

Hi-Fi A85S3

Hi-Fi A75S3

Hi-Fi A55S3

Note 1: HDMI / DVI-D / VGA Output require an AMD family processor with intedrated graphics.

Note 2: The mainboard supports two independent display outputs.

Note 3: Since the audio chip supports High Definition Audio Specification, the function of each

audio jack can be defined by software. The input / output function of each audio jack

listed above represents the default setting. However, when connecting external

microphone to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.

Note 4: Maximum resolution:

Outputs Maximum resolution Bit Depth

1920 x 1080 @60Hz 24, 30, 36 bpp

HDMI

1920 x 1200 @60Hz 24 bpp

1920 x 1200 @60Hz 30 bpp

DVI-D

2560 x 1600 @60Hz 24 bpp

VGA 1920 x 1600 @60Hz --
