Hi-Fi A85W/Hi-Fi A75W

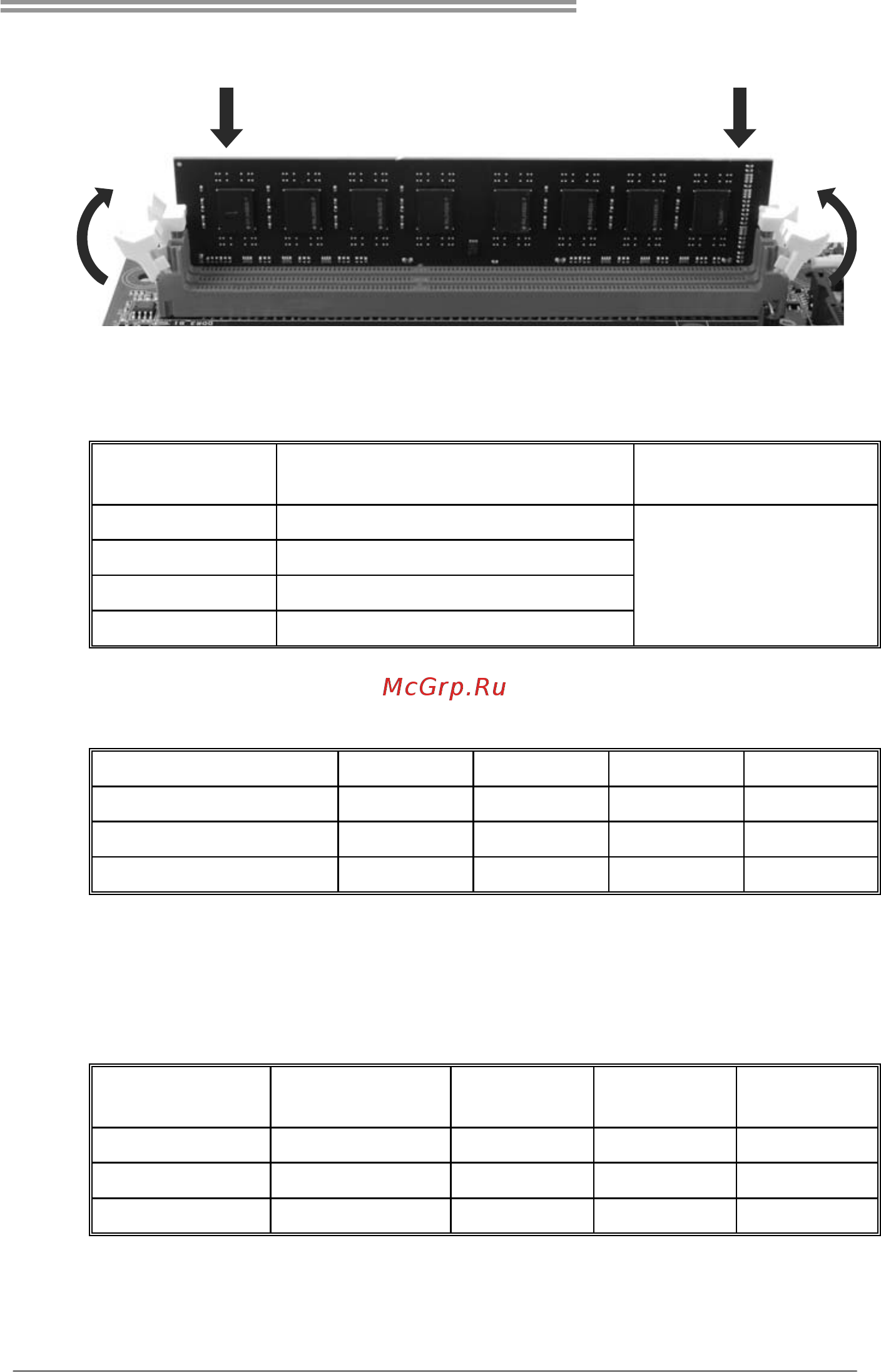

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.

Note:

If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

B. Memory Capacity

DIMM Socket

Location

DDR3 Module

Total Memory Size

DDR3_A1 512MB/1GB/2GB/4GB/8GB/16GB

DDR3_A2 512MB/1GB/2GB/4GB/8GB/16GB

DDR3_B1 512MB/1GB/2GB/4GB/8GB/16GB

DDR3_B2 512MB/1GB/2GB/4GB/8GB/16GB

Max is 64GB.

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

Enabled O X O X

Enabled X O X O

Enabled O O O O

(O means memory installed, X means memory not installed.)

Note:

The DRAM bus width of the memory module must be the same (x8 or x16)

D. DDR Speed Support

Please refer to the following table for DDR speed reference: (x = 1 or 2)

# of DIMM

per Channel

# of Ranks

per DIMM

1.50V 1.35V 1.25V

1 of 2 UDIMMs xR, 0 DDR3-1866 DDR3-1600 DDR3-1333

2 of 2 UDIMMs 1R, 1R DDR3-1866 DDR3-1600 DDR3-1333

2 of 2 UDIMMs 2R, xR DDR3-1600 DDR3-1333 DDR3-1066
