Motherboard Manual
8

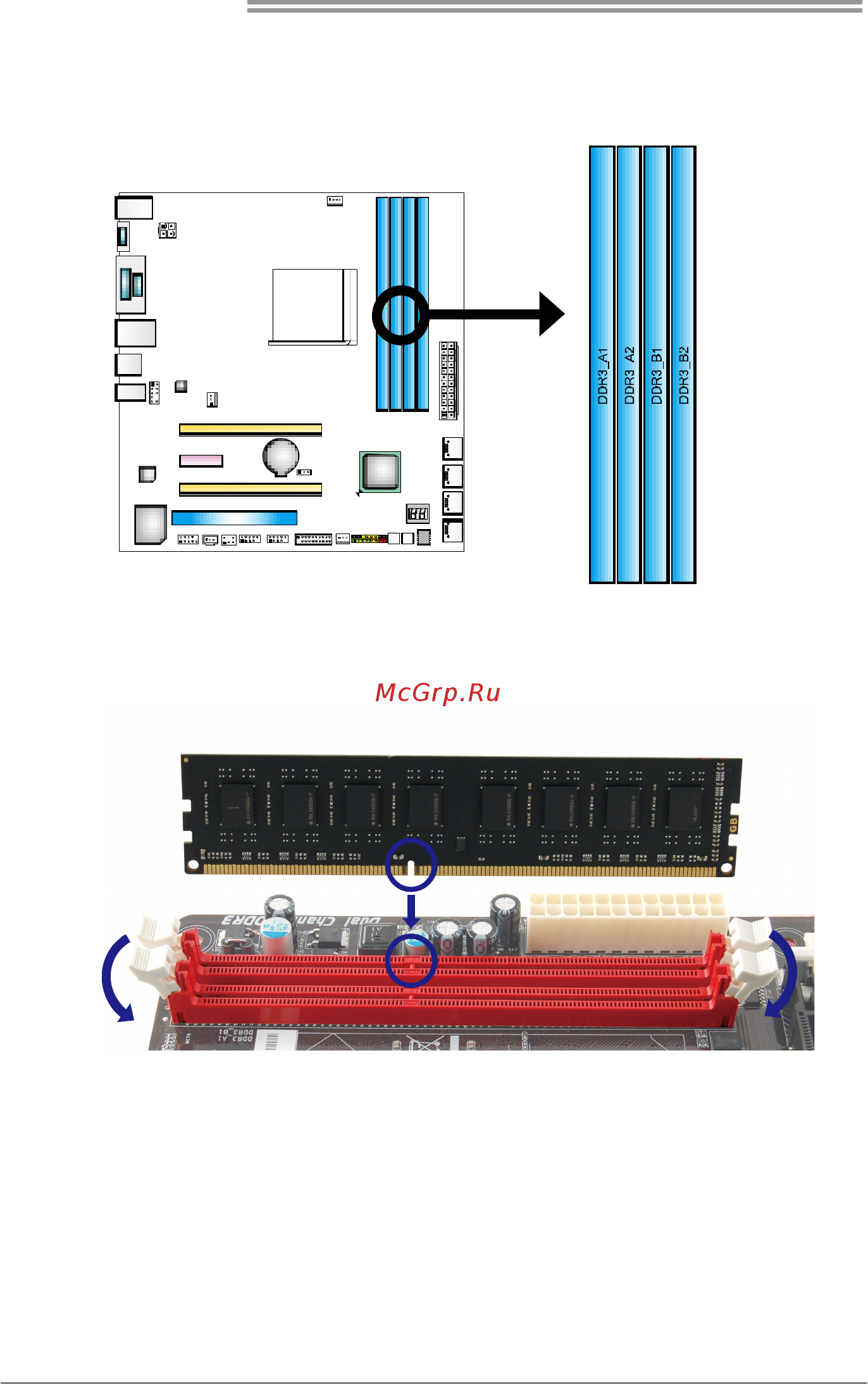

2.3 INSTALLING SYSTEM MEMORY
A. DDR3 Modules
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
